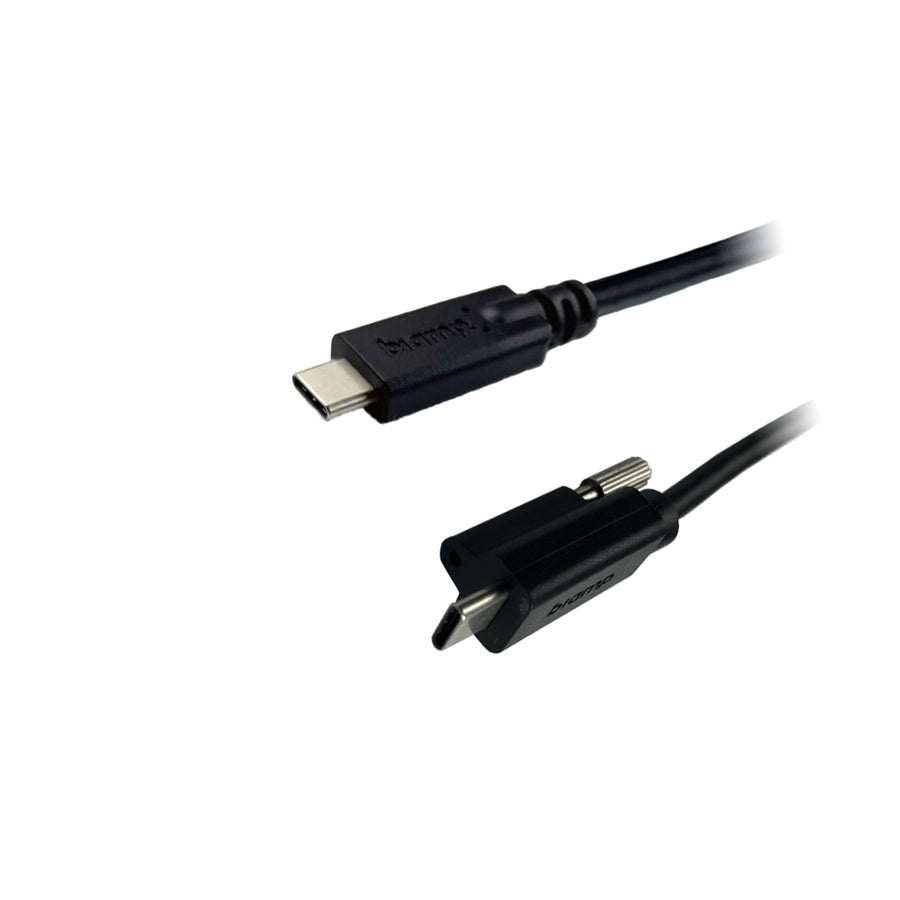

Biamp EasyConnect 30-Foot Active USB 3.2 Gen 1 Type-C to Type-C Cable – USB3-30-CC

The Biamp EasyConnect USB3-30-CC is a 10 m (30-foot) active USB 3.2 Gen 1 cable with USB Type-C connectors at both ends. It transfers data at up to 5 Gbps, carries 4K at 30 Hz through DisplayPort alternate mode and handles up to 60 W power delivery. Procure.ae supplies it across the UAE as an authorised Biamp reseller.

The USB3-30-CC combines tinned copper conductors with multi-mode optical fibers, using 20+24+28 AWG wire, inside a PVC jacket with a 6.5 mm outer diameter. Foil and braid double shielding protects the signal, and the contacts are gold-plated. The cable supports USB 3.2 Gen 1 transfer at up to 5 Gbps and 3840 x 2160 (4K UHD) resolution at 30 Hz, with 4:4:4 chroma sampling and 8-bit color. Power delivery is rated at 60 W, depending on the USB-C port. The operating range is 0 to 50 °C. Its alternate manufacturer code is 910-00213.

Compared with the 2 m passive USB3-6-CC, the USB3-30-CC is five times longer and uses an active signal design with optical fibers. It is listed with a 65 mm minimum static bend radius and a 200 N maximum tensile strength. Supported systems are Windows 8 and later, macOS 10.9 and later and Linux 3.x and later, with USB 3.0 support required. Procure.ae supplies it across the UAE for meeting rooms, lecture halls and video conferencing setups.
