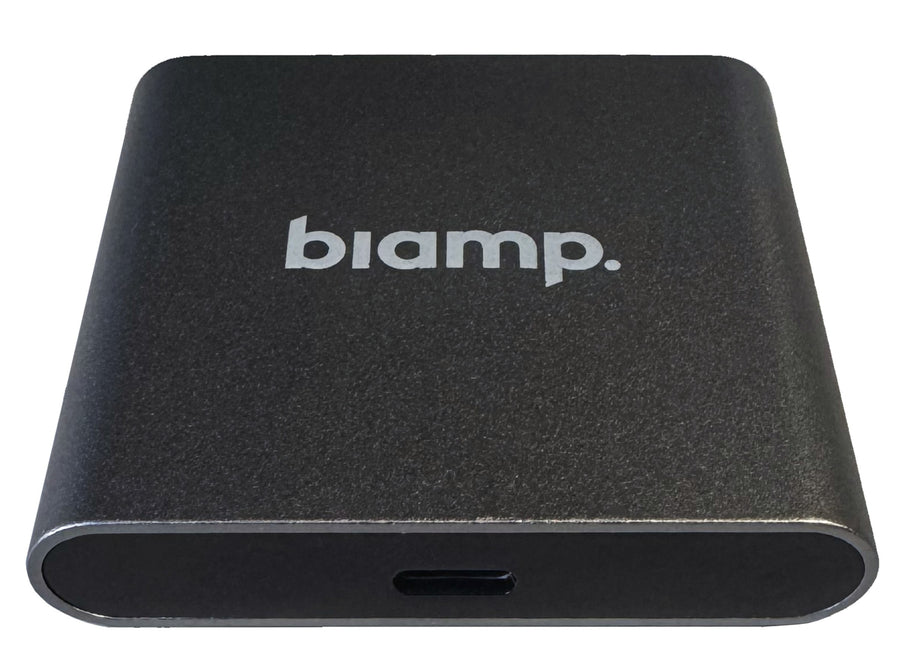

Biamp EasyConnect 3-in-1 USB-C adapter, model 910-00218Biamp
Meeting Room SolutionsSKU EasyConnect USB-C Adapter

Biamp EasyConnect 3-in-1 USB-C Adapter – 910-00218

The Biamp EasyConnect 3-in-1 USB-C Adapter (910-00218) is a video conferencing accessory that combines USB-C power delivery, display output and USB 3.0 data in one unit. It supports up to 4K UHD at 60 Hz, up to 90 W of output power and data transfer at 5 Gbps. Procure.ae supplies it across the UAE.

Display output runs over USB-C DisplayPort (DP Alt Mode) at up to 3840 x 2160 (4K UHD) at 60 Hz. Maximum output power is 90 W, with a voltage range of 5–20 V and a power efficiency of 90% or higher. The USB 3.0 port transfers data at up to 5 Gbps, and the USB output provides up to 0.9 A. Overcurrent protection, short-circuit protection with auto-recovery, and voltage regulation of ±5% are built in.

Use it in video conferencing rooms, meeting spaces and boardrooms where one USB-C connection needs to carry display, power and data. The manufacturer rates it for indoor environments, from -20 to 40 °C, and lists support for Mac OS X 10.2+, Windows and Linux. A wall mount plate is included, and the manufacturer lists a 5-year warranty. Delivery and installation are available across the UAE and MEA.

Resolution
3840 x 2160 (4K UHD)
Type
USB-C Adapter
  • 4K UHD display output
  • USB-C power delivery
  • USB 3.0 data
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD display output
Up to 3840 x 2160 (4K UHD) at 60 Hz over USB-C DisplayPort Alt Mode.
02
USB-C power delivery
Maximum output power of 90 W from a 5–20 V range.
03
USB 3.0 data
Data transfer at up to 5 Gbps.
04
Multi-OS compatibility
Listed for Mac OS X 10.2+, Windows and Linux.
05
Built-in protection
Overcurrent, short-circuit and voltage regulation protection.
06
Compact, hot-swappable design
Listed as compact and hot-swappable, with a wall mount plate included.

Specifications

16 specifications
General
Key Features4K UHD at 60 Hz, 90 W USB-C power delivery, USB 3.0 at 5 Gbps, Overcurrent and short-circuit protection, Hot-swappable, Indoor use, Wall mount plate included
ModelEasyConnect USB-C Adapter
TypeUSB-C Adapter
What's in the BoxUSB-C adapter, wall mount plate
Display
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Performance
Operating SystemMac OS X 10.2+, Windows, Linux
Storage Conditions-40 to 80 °C
Audio
Power Output90 W (maximum)
Connectivity
ConnectivityUSB-C, USB 3.0
Data Rate5 Gbps
Input Voltage5–20 V
Physical
MountingWall mount plate included
Operating Temperature-20 to 40 °C
Compliance
CertificationsCE, RoHS, FCC, EN, UL, IEC
Warranty5 years

Downloads

Manufacturer documents for the Biamp EasyConnect 3-in-1 USB-C Adapter – 910-00218 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the EasyConnect USB-C Adapter support 4K?
Yes. The manufacturer rates the adapter for display output up to 3840 x 2160 (4K UHD) at 60 Hz over USB-C DisplayPort (DP Alt Mode). The connected display and source device must also support 4K.
Does the adapter provide USB-C power delivery?
Yes. The maximum output power is 90 W, with a DC output current of 0.5 to 5 A and a USB output current of up to 0.9 A. The accepted voltage range is 5–20 V, and power efficiency is 90% or higher.
Which operating systems does the adapter support?
Yes. It is listed for Mac OS X 10.2+, Windows and Linux. The manufacturer rates it for indoor environments, with an operating temperature of -20 to 40 °C and storage down to -40 °C. Check that your computer's operating system is one of those listed.
Can I buy the EasyConnect USB-C Adapter in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
