BiampMeeting Room SolutionsSKU EasyConnect USB3-3-BC

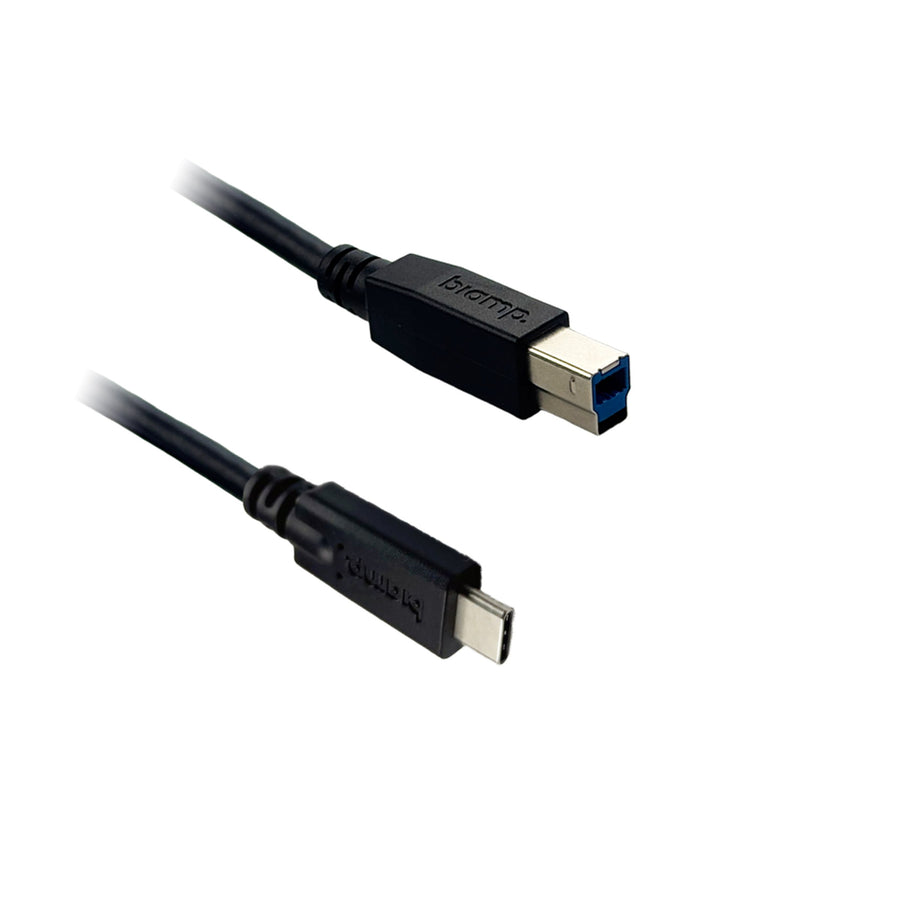

Biamp EasyConnect 3-Foot USB 3.2 Gen 1 Type-B to Type-C Cable – USB3-3-BC
The Biamp EasyConnect USB3-3-BC is a 1 m passive USB 3.2 Gen 1 cable with a USB Type-B connector at one end and a USB Type-C connector at the other. It transfers data at up to 5 Gbps and suits Type-B to Type-C links in meeting rooms and classrooms. Procure.ae supplies it across the UAE as an authorised Biamp reseller.
The USB3-3-BC has tinned copper conductors (28 AWG) inside a PVC jacket. Foil and braid double shielding protects the signal, and the contacts are gold-plated. The cable supports USB 3.2 Gen 1 transfer at up to 5 Gbps and is specified as passive. Its safety rating is UL-CMX, and the manufacturer states RoHS and REACH compliance. Its alternate manufacturer code is 910-00204, and the manufacturer lists a 3-year warranty.
Type
USB 3.2 Gen 1 Cable
- Passive signal design
- 5 Gbps data transfer
- Double-shielded construction
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Passive signal design
The cable is specified as passive for USB 3.2 Gen 1 links.
02
5 Gbps data transfer
Supports USB 3.2 Gen 1 transfer at up to 5 Gbps.
03
Double-shielded construction
Foil and braid shielding protects the signal.
04
Gold-plated contacts
Contact plating is gold, over tinned copper conductors.
05
3-year warranty
The manufacturer lists a 3-year warranty on this cable.
Specifications
13 specificationsGeneral
Key FeaturesPassive signal, gold-plated contacts, double shielding, 5 Gbps USB 3.2 Gen 1, UL-CMX rated, RoHS and REACH compliant
ModelEasyConnect USB3-3-BC
TypeUSB 3.2 Gen 1 Cable
Connectivity
Cable StandardUSB 3.2 Gen 1
ConductorTinned copper, 28 AWG
Connector TypeUSB Type-B to USB Type-C
Data Rate5 Gbps
Jacket MaterialPVC
ShieldingDouble shielded (foil + braid)
Physical
Length1 m (3 ft)
Compliance
CertificationsRoHS, REACH
Safety RatingUL-CMX
Warranty3 years
Downloads
Manufacturer documents for the Biamp EasyConnect 3-Foot USB 3.2 Gen 1 Type-B to Type-C Cable – USB3-3-BC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What data speed does the Biamp EasyConnect USB3-3-BC support?
It supports USB 3.2 Gen 1 data transfer at up to 5 Gbps. The cable is 1 m (3 feet) long, with a USB Type-B connector at one end and a USB Type-C connector at the other. The manufacturer specifies it as a passive cable.
Is the USB3-3-BC shielded against interference?
Yes. The cable has double shielding made of foil and braid around its tinned copper conductors. The outer jacket is PVC, the contacts are gold-plated, and the manufacturer lists a UL-CMX safety rating.
Does the USB3-3-BC come with a warranty?
Yes. The manufacturer lists a 3-year warranty on the USB3-3-BC. For support on a UAE order, Procure.ae can advise on the warranty and support process when you request a quote on WhatsApp or by email.
Can I buy the EasyConnect USB3-3-BC in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
