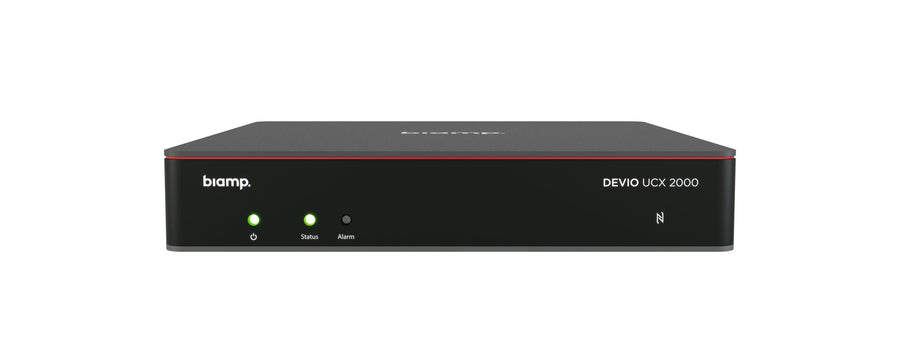

Biamp Devio UCX 2000 Meeting Room Hub – 920-02282
The Biamp Devio UCX 2000 (920-02282) is an Android-based meeting room hub for medium and large Microsoft Teams Rooms. It runs Microsoft Device Ecosystem Platform (MDEP) on Android 15, uses an 8 GB Qualcomm Dragonwing QCS6490 processor and provides PoE+ ports for room peripherals. Procure.ae supplies the Devio UCX 2000 across the UAE.
The UCX 2000 provides a primary 100/1000 Ethernet port plus three PoE+ ports: one PSE 30 W port for the Apprimo Touch 10 UCX controller and two isolated PoE+ 30 W ports for network media. It supports a video conferencing bar or standalone camera, and up to two table or ceiling microphones. Built-in Biamp DSP and Biamp Launch tune room acoustics with a single button press. Wi-Fi 6 and Bluetooth 5.3 BLE are included, and the USB-C port (60 W PD) powers Parle ABC and VBC bars.
The UCX 2000 suits medium and large Teams Rooms that need more peripherals than the UCX 1000. Biamp Workplace provides remote status monitoring and Launch Report Cards, while Microsoft 365 Admin, Entra ID, Intune, Teams Admin Center and the Teams Rooms Pro Management Portal handle device management. Every room peripheral is powered from the hub over PoE+ and USB. Compared with the UCX 1000, it adds two isolated PoE+ network media ports and a maximum power consumption of 210 W.
Type
Video Conferencing System
Weight
0.86 kg
- Medium and large rooms
- Expanded PoE+ ports
- Distributed loudspeakers
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Medium and large rooms
Built for medium and large Microsoft Teams Rooms, with support for an Apprimo Touch 10 UCX controller and a video conferencing bar or standalone camera.
02
Expanded PoE+ ports
Ethernet port 2 supplies PoE+ 30 W for the Apprimo Touch 10 UCX, and ports 3 and 4 are isolated PoE+ 30 W for network media.
03
Distributed loudspeakers
Supports up to four distributed loudspeakers and up to two table or ceiling microphones.
04
Built-in DSP
Biamp DSP delivers room audio processing in the same device as the UC compute.
05
Automatic room tuning
Biamp Launch analyzes and tunes room acoustics automatically with a single button press.
06
Qualcomm processing
Qualcomm Dragonwing QCS6490 processor with 8 GB memory, running MDEP on Android 15.
07
USB-C BYOM input
The USB-C port (USB 3.2 Gen 1, 60 W PD) supports BYOM and content sharing and powers Parle ABC and VBC bars.
08
Biamp Workplace management
Remote status monitoring and Launch Report Cards in Biamp Workplace, alongside other Biamp room devices.
Specifications
19 specificationsGeneral
CompatibilityMicrosoft Teams Rooms for Android
ControlsBiamp Workplace; Teams Admin Center; Teams Rooms Pro Management Portal; Microsoft 365 Admin, Entra ID, Intune
Key FeaturesTeams Rooms for Android, built-in DSP, Biamp Launch room tuning, three PoE+ ports, USB-C BYOM input, Wi-Fi 6, Biamp Workplace management
ModelDevio UCX 2000
TypeVideo Conferencing System
Performance
Operating SystemMicrosoft Device Ecosystem Platform (MDEP) based on Android 15
ProcessorQualcomm Dragonwing QCS6490
RAM8 GB
Audio
AudioBuilt-in Biamp DSP
Connectivity
BluetoothBluetooth 5.3 (BLE)
Ethernet100/1000 LAN x 1; PoE+ PSE 30 W x 1; isolated PoE+ 30 W x 2
Input Voltage100–240 V AC, 50/60 Hz
USB PortsUSB 3.0 x 3
USB-C PortsUSB 3.2 Gen 1 x 1, 60 W PD
Wi-FiWi-Fi 6, 802.11ac, 2x2 MIMO
Power
Power Consumption210 W (maximum)
Physical
Operating Temperature0 to 40 °C
Weight0.86 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Biamp Devio UCX 2000 Meeting Room Hub – 920-02282 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Biamp Devio UCX 2000?
The Devio UCX 2000 is a meeting room hub with UC compute and built-in DSP for medium and large Microsoft Teams Rooms. It runs MDEP on Android 15 with an 8 GB Qualcomm Dragonwing QCS6490 processor, and it powers room peripherals over PoE+ and USB.
How is the UCX 2000 different from the UCX 1000?
The UCX 2000 has more PoE+ ports: one PSE 30 W port for the Apprimo Touch 10 UCX controller plus two isolated PoE+ 30 W ports for network media. Its maximum power consumption is listed as 210 W, against 150 W for the UCX 1000. Both use the same processor and memory.
Does the Devio UCX 2000 support Microsoft Teams Rooms?
Yes. It supports Microsoft Teams Rooms for Android and is managed through the Teams Admin Center and the Teams Rooms Pro Management Portal. Microsoft 365 Admin, Entra ID and Intune are also supported for device management on the MDEP platform.
Can the Devio UCX 2000 be monitored remotely?
Yes. The UCX 2000 is integrated into Biamp Workplace, which provides remote status monitoring and Biamp Launch Report Cards. Installation, monitoring and management sit alongside other Biamp room devices in the same platform.
