BiampMeeting Room SolutionsSKU Desono DX-IC6

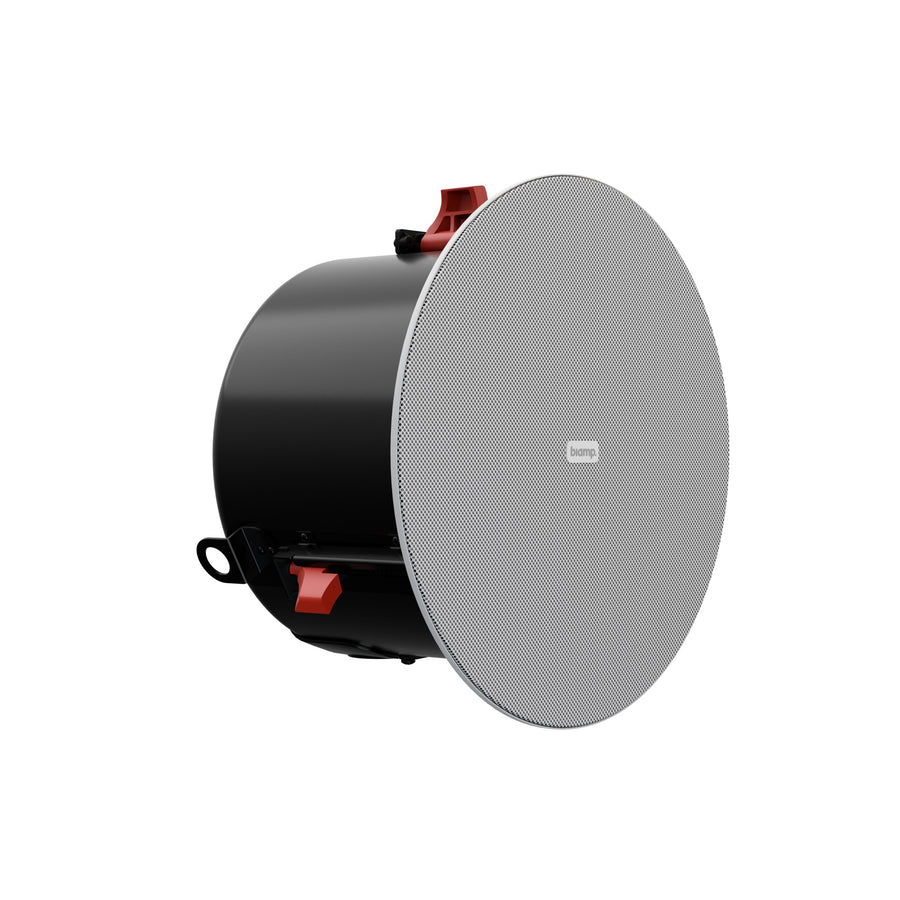

Biamp Desono DX-IC6 Ceiling Loudspeaker – 920-00104-20000
The Biamp Desono DX-IC6 is a two-way, 6.5-inch ceiling loudspeaker for paging, background music and conferencing in indoor venues. It is rated at 120 W continuous and 480 W peak with 8 ohms impedance, and its sensitivity is 94 dB at 1 W/1 m. Procure.ae supplies the Biamp Desono DX-IC6 in the UAE, with delivery and installation available.
The Desono DX-IC6 uses a 6.5-inch woofer and a 1-inch tweeter with separate LF and HF magnets to reduce distortion. The manufacturer specifies an operating range of 90 Hz to 20 kHz, sensitivity of 94 dB at 1 W/1 m, and maximum output of 114 dB at 1 m, or 124 dB peak. A front-face wattage selector switch sets 70 V and 100 V tap levels without removing the grille. The loudspeaker is rated for indoor use.
Use the DX-IC6 in conference rooms, houses of worship, theatres, sports facilities, health clubs, convention centres and airports. The manufacturer lists Zoom certification along with UL 1480, UL 2043, CSA 62368-1, NFPA 70 and NFPA 90 certifications. It pairs with the DX-IC10SUB subwoofer for extended low-frequency response, and its patent-pending SpringLock clamps allow single-handed placement. The manufacturer's model codes for the range are 920-00104-10000 and 920-00104-20000.
Type
Ceiling Loudspeaker
Weight
3.63 kg
- Coaxial design
- Higher output per watt
- 70 V and 100 V taps
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Coaxial design
Separate LF and HF magnets help minimise distortion and maximise uniformity.
02
Higher output per watt
The manufacturer states 3 to 6 dB higher SPL than comparable models while needing half the amplifier power.
03
70 V and 100 V taps
A front-face wattage selector changes tap levels without removing the grille.
04
SpringLock mounting
Patent-pending SpringLock clamps allow single-handed placement.
05
Power handling
It is rated at 120 W continuous and 480 W peak.
06
Subwoofer pairing
The manufacturer states the loudspeaker pairs with the DX-IC10SUB for extended low-frequency response.
07
Zoom certification
It is certified for use with Zoom software.
08
5-year warranty
The manufacturer backs the loudspeaker with a five-year warranty.
Specifications
17 specificationsGeneral
ApplicationConference rooms, houses of worship, theatres, sports facilities, health clubs, convention centres, auditoriums, malls, airports, corporate meeting rooms
CompatibilityZoom Certified
Key Features70 V/100 V front-face tap selector, SpringLock single-handed mounting, 120 W continuous / 480 W peak, DX-IC10SUB subwoofer pairing, Zoom certified, 5-year warranty
ModelDesono DX-IC6
TypeCeiling Loudspeaker
Audio
Frequency Response90 Hz to 20 kHz
Impedance8 Ω
Max SPL114 dB at 1 m (124 dB peak)
Sensitivity94 dB (1 W/1 m)
Speaker Configuration2-way (6.5-inch LF, 1-inch HF)
Speaker Size6.5 inch
Speaker Type2-way in-ceiling loudspeaker
Power
Power Capacity (W)120 W continuous, 480 W peak
Physical
MountingIn-ceiling, patent-pending SpringLock clamps
Weight3.63 kg
Compliance
CertificationsUL 1480, UL 2043, CSA 62368-1, NFPA 70, NFPA 90
Warranty5 years
Downloads
Manufacturer documents for the Biamp Desono DX-IC6 Ceiling Loudspeaker – 920-00104-20000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Desono DX-IC6 suitable for conference rooms?
Yes. The manufacturer lists the Desono DX-IC6 as Zoom Certified and names corporate meeting rooms among its common applications. It is also rated for paging and background music in larger indoor venues.
What amplifier power does the Desono DX-IC6 need?
The Desono DX-IC6 is rated at 120 W continuous and 480 W peak, with 8-ohm impedance. A front-face wattage selector sets 70 V or 100 V tap levels, so you can match the loudspeaker to your amplifier without removing the grille.
Can the Desono DX-IC6 be paired with a subwoofer?
Yes. The manufacturer states the DX-IC6 pairs with the DX-IC10SUB subwoofer for enhanced full-range performance. On its own, the loudspeaker operates from 90 Hz to 20 kHz. Ask for a quote on both models together if your design needs extended low-frequency coverage.
How is the Desono DX-IC6 installed?
It uses patent-pending SpringLock mounting clamps that allow single-handed placement and quick, secure installation in a ceiling. The manufacturer lists it as indoor-rated and certified to UL 1480, UL 2043 and CSA 62368-1.
