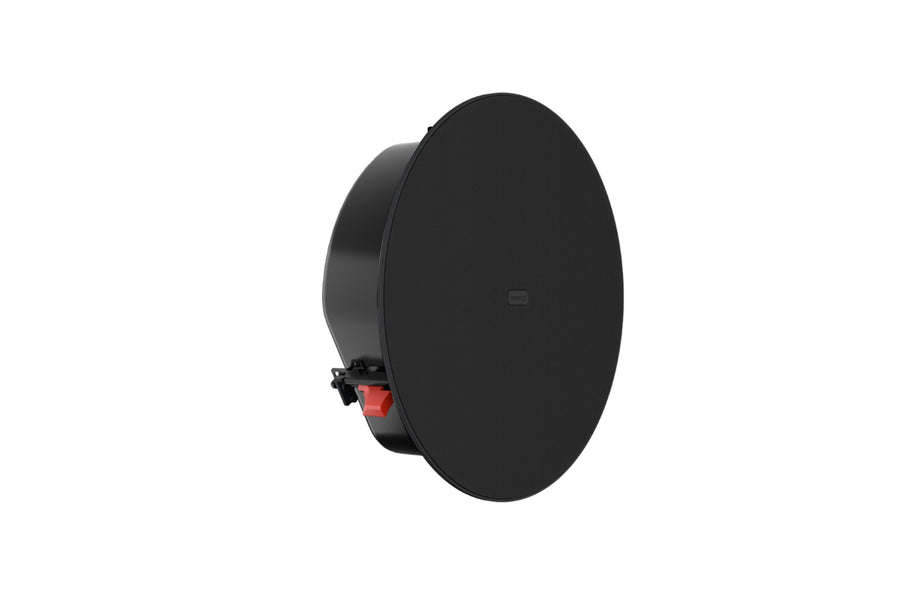

Biamp Desono C-IC6LP Black Ceiling Conferencing Loudspeaker – 920-10298-10000
The Biamp Desono C-IC6LP is a 2-way, 6.5-inch low-profile ceiling conferencing loudspeaker with a 140-degree conical pattern. It is rated for 60 W continuous at 8 ohms and is certified for Zoom. Procure.ae supplies the Biamp Desono C-IC6LP in the UAE, with delivery and installation available.
The Desono C-IC6LP combines a 6.5-inch treated paper cone with a 1-inch soft dome tweeter and waveguide, joined by a 2.5 kHz crossover. The manufacturer specifies an operating range of 63 Hz to 20 kHz (-10 dB), nominal sensitivity of 87 dB at 1 W and passive peak SPL of 109 dB, with continuous SPL of 103 dB. The nominal conical beamwidth is 140 degrees (H x V). The edgeless magnetic grille is designed to blend into the ceiling.
Use the Desono C-IC6LP in conference rooms, meeting spaces and other indoor areas with limited ceiling depth. The loudspeaker is passive and designed to integrate with the Tesira AMP-450BP backpack PoE+ amplifier, sold separately. It has RJ45 inputs, and its three SpringLock clamps have a 33 mm (1.3-inch) grip range. The manufacturer lists Zoom certification and states the loudspeaker is suitable for air-handling spaces under NFPA 70 and NFPA 90. Manufacturer model codes are 920-10298-10000 and 920-10298-20000.
Type
Conferencing Loudspeaker
Weight
4.12 kg
- Low-profile ceiling design
- Wide 140-degree coverage
- SpringLock mounting
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Low-profile ceiling design
The loudspeaker is designed for ceiling mounting in low-profile installations.
02
Wide 140-degree coverage
The nominal conical beamwidth is 140 degrees (H x V).
03
SpringLock mounting
Three SpringLock clamps have a 33 mm (1.3-inch) grip range.
04
Edgeless grille
The magnetic grille is edgeless for a clean ceiling finish.
05
Plenum conduit knock-outs
Conduit knock-outs meet Chicago plenum air space requirements.
06
Zoom certification
It is certified for use with Zoom software.
07
Power handling
It is passive and rated at 60 W continuous with 8-ohm impedance.
08
5-year warranty
The manufacturer backs the loudspeaker with a five-year warranty.
Specifications
21 specificationsGeneral
ApplicationIndoor ceiling installations
CompatibilityZoom Certified
Key FeaturesLow-profile ceiling design, coaxial driver with waveguide, 140° conical coverage, Zoom certified, plenum conduit knock-outs, 5-year warranty
ModelDesono C-IC6LP
TypeConferencing Loudspeaker
Audio
Coverage Pattern140° conical (nominal beamwidth)
Crossover Frequency2.5 kHz
Frequency Response63 Hz to 20 kHz (-10 dB)
Impedance8 Ω
Max SPL109 dB peak, 103 dB continuous
Sensitivity87 dB (1 W at 8 Ω)
Speaker Configuration2-way coaxial (6.5-inch LF, 1-inch HF with waveguide)
Speaker Size6.5 inch
Speaker Type2-way low-profile ceiling conferencing loudspeaker
Connectivity
ConnectivityRJ45 inputs
Power
Power Capacity (W)60 W continuous
Physical
FinishBlack (RAL 9017)
Mounting3 SpringLock clamps, 33 mm (1.3-inch) grip range
Weight4.12 kg
Compliance
CertificationsETL listed to UL 1480A, UL 2043, CSA 62368-1; air-handling use per NFPA 70 and NFPA 90
Warranty5 years
Downloads
Manufacturer documents for the Biamp Desono C-IC6LP Black Ceiling Conferencing Loudspeaker – 920-10298-10000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Desono C-IC6LP certified for Zoom?
Yes. The manufacturer lists the Desono C-IC6LP as Zoom Certified, meaning it is certified for use with Zoom software. Confirm your Zoom room system requirements before ordering, so the loudspeaker suits your conferencing setup and existing hardware.
Does the Desono C-IC6LP need an amplifier?
Yes. It is a passive loudspeaker rated at 60 W continuous with 8-ohm impedance. The manufacturer designed it to integrate with the Tesira AMP-450BP backpack PoE+ amplifier, which is sold separately.
How is the Desono C-IC6LP mounted in a ceiling?
It mounts with three SpringLock clamps that have a 33 mm (1.3-inch) grip range. The included accessories are a C-Ring supporting plate, tile support bridge rails, grilles, paint masks, a cut-out template and wire strain-relief fittings. New construction brackets are optional.
Can the Desono C-IC6LP be used in air-handling spaces?
Yes. The manufacturer states it is suitable for use in air-handling spaces under NFPA 70 and NFPA 90. Conduit knock-outs meet Chicago plenum air space requirements, and the loudspeaker is rated for indoor use.
