BiampMeeting Room SolutionsSKU BMA 360D
Biamp Dante Ceiling Microphone Array – BMA 360D

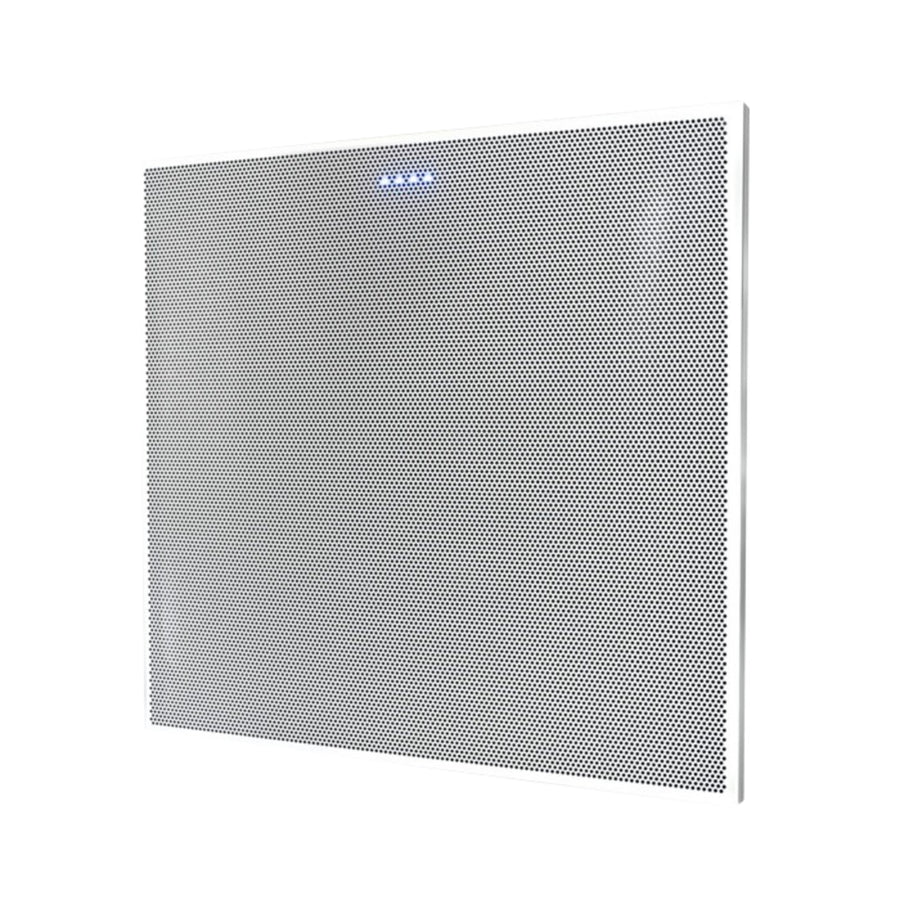

The Biamp BMA 360D is a ceiling tile microphone array for conferencing rooms. It uses ultra-wideband beamforming with 12 configurable beam patterns, outputs audio over Dante and AES67, and is PoE-powered. Procure.ae supplies the Biamp BMA 360D in the UAE.
The BMA 360D captures voice with ultra-wideband, frequency-invariant beamforming, so sound quality stays consistent across all beams and frequencies. Twelve configurable beam patterns support both standard room layouts and custom designs. A smart-switched output selects the combination of active talkers with integrated audio enhancement, and uniform gain keeps levels balanced wherever participants sit. The unit draws 23 W typical without the speaker amplifier and operates from -10 to 40 °C ambient.
The BMA 360D fits standard 24-inch by 24-inch ceiling grids and interoperates with any Dante-enabled DSP, so it suits conferencing, camera tracking and voice lift rooms. It networks over Dante and AES67 on one RJ-45 PoE++ connection using Cat 6 cable. Rooms with speakers need a 56 V 90 W PoE++ source, while 30 W PoE+ covers the unit without speakers. Surface and recess mounting need the separate BMA 360D-SM or BMA 360D-RM accessories.
Type
Ceiling Microphone Array
Weight
5.0 kg
- Ultra-wideband beamforming
- 12 beam patterns
- Native Dante audio
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-wideband beamforming
Frequency-invariant beamforming keeps sound quality consistent across all beams and frequencies.
02
12 beam patterns
Configurable patterns support standard room layouts and custom designs.
03
Native Dante audio
Outputs individual beam feeds and a smart-switched mix to any Dante-enabled DSP.
04
Smart-switched output
Selects the combination of active talkers with integrated audio enhancement.
05
Uniform gain response
Keeps audio balanced regardless of participant position.
06
24-inch ceiling tile fit
Designed for standard 24-inch by 24-inch ceiling tile openings.
07
PoE++ power
Requires a 56 V 90 W PoE++ source with speakers and 30 W PoE+ without speakers.
08
Multiple mounting options
Ceiling tile, four cable suspension points and a 100 mm VESA hole pattern.
Specifications
16 specificationsGeneral
Key FeaturesUltra-wideband beamforming, 12 beam patterns, Dante outputs, smart-switched mix, 24-inch ceiling tile fit, camera tracking support, voice lift support
ModelBMA 360D
TypeCeiling Microphone Array
Audio
Coverage Pattern12 configurable beam patterns
Connectivity
ConnectivityRJ-45 PoE++ (Cat 6)
Input Voltage100-240 V AC, 50/60 Hz
PoEPoE++ 56 V 90 W (IEEE 802.3bt); 30 W PoE+ without speakers
ProtocolsDante, AES67
Power
Power Consumption23 W (typical, without speaker amp)
Power SourcePoE injector or equivalent
Physical
ColorWhite
MountingCeiling tile (24-inch grid), suspension, VESA-ready; surface and recess kits sold separately
Operating Temperature-10 to 40 °C
Shipping Weight6.4 kg
VESA Mount100 mm hole pattern, M4 x 10 mm
Weight5.0 kg
Downloads
Manufacturer documents for the Biamp Dante Ceiling Microphone Array – BMA 360D — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the BMA 360D work with Dante audio systems?
Yes. The BMA 360D has native Dante audio, delivering individual beam outputs and a smart-switched mix. It also supports AES67 and interoperates with any Dante-enabled DSP, so it can sit in a vendor-agnostic system.
What ceiling grid does the BMA 360D fit?
It is designed for standard 24-inch by 24-inch ceiling tile openings. Rooms with 600 mm x 600 mm tile openings are served by the BMA 360D-I, which has the same beamforming feature set.
How is the BMA 360D powered?
Through PoE. With speakers connected, it requires a 56 V 90 W IEEE 802.3bt PoE++ source. Without speakers, 30 W PoE+ is enough. Typical draw is 23 W without the speaker amplifier, and the unit is rated for -10 to 40 °C ambient.
Can the BMA 360D be surface or recess mounted?
Yes, with accessories. Surface mounting requires the separate BMA 360D-SM accessory and recess mounting requires the BMA 360D-RM. The base unit mounts through a 24-inch drop-ceiling grid, a 100 mm VESA hole pattern or four cable suspension points.
Does the BMA 360D support camera tracking and voice lift?
Yes. The manufacturer lists conferencing, camera tracking and voice lift as intended applications. Native Dante outputs deliver individual beam feeds and a smart-switched mix, so a Dante-enabled DSP can route the active-talker mix to the camera tracking or voice lift system.
Can I buy the BMA 360D in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
