BiampMeeting Room SolutionsSKU Apprimo Touch 7

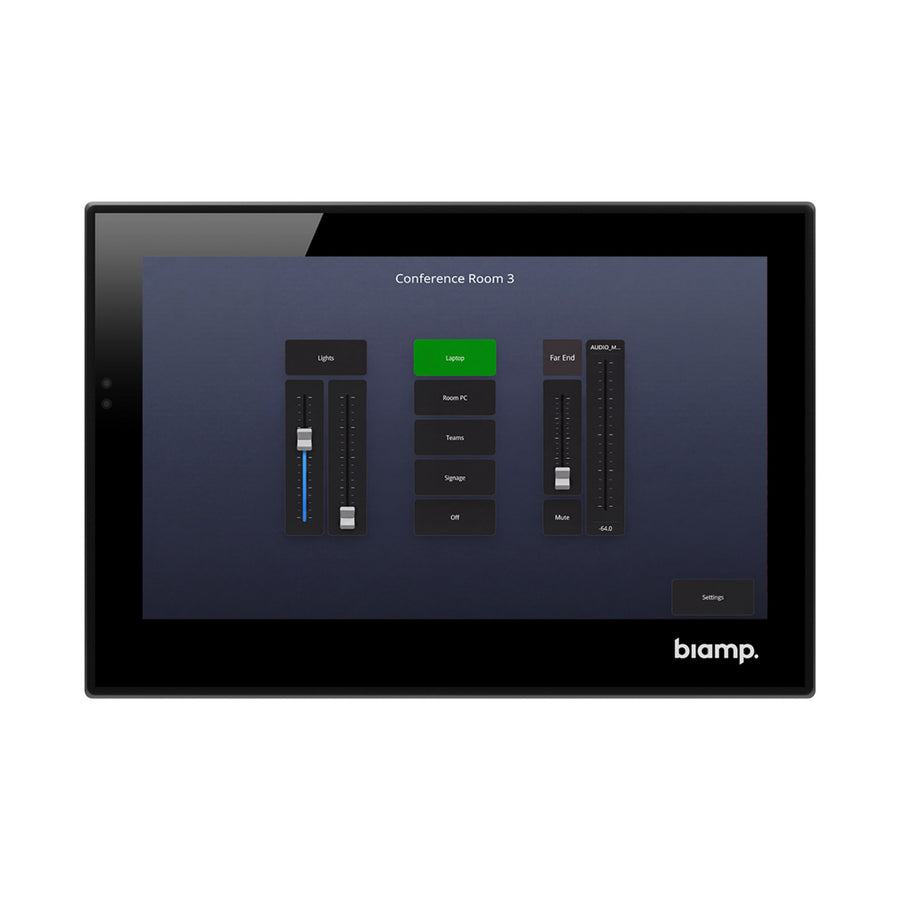

Biamp Apprimo Touch 7 Room Control Panel (Black) – 920-01871-10000
The Biamp Apprimo Touch 7 is a 7-inch capacitive touch control panel for Biamp Workplace Control room systems. Its 1024 x 595 LCD offers 350 nits of maximum brightness, a proximity sensor and PoE power over a single CAT5e or CAT6 cable. Procure.ae supplies the black model in the UAE.
The Apprimo Touch 7 pairs a 7-inch high-contrast capacitive touch LCD, at 1024 x 595 resolution, with 350 nits of maximum brightness. Scratch-resistant glass protects the surface and keeps a professional finish. Proximity and ambient light sensors turn the display on as someone approaches. Biamp's Project Designer software offers several pre-built templates and themes for building the interface, and firmware updates are applied through the integrated mini USB 2.0 port.
The panel fits standard single-gang US, EU and DK back boxes and includes a mounting bracket and screws, so it suits wall installations in meeting rooms, classrooms and offices. It connects over RJ-45 Ethernet (Cat 5e and above) and is PoE powered under IEEE 802.3at Class 3 (15 W), so one cable carries both power and data. Compared with the Apprimo Touch 8i, the Touch 7 is the smaller model, with a 7-inch screen at 1024 x 595. Procure.ae supplies Biamp equipment across the UAE with free training and support.
Screen Size
7 inch
Resolution
1024 x 595
Brightness
350 nits
Touch Technology
PCAP
- Workplace Control support
- 7-inch touch display
- Proximity wake-up
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Workplace Control support
Works with Biamp Workplace Control, a software-based control solution for simple deployment and complex systems.
02
7-inch touch display
High-contrast capacitive LCD with 1024 x 595 resolution and 350 nits maximum brightness.
03
Proximity wake-up
Proximity and ambient light sensors turn the display on as someone approaches.
04
Scratch-resistant glass
The glass front resists scratches for a durable, professional appearance.
05
PoE single-cable install
Powered over one CAT5e or CAT6 cable under IEEE 802.3at Class 3 (15 W).
06
Single-gang back box fit
Fits standard single-gang US, EU and DK back boxes, with bracket and screws included.
07
5-year warranty
The Apprimo Touch 7 is backed by a comprehensive 5-year warranty.
Specifications
18 specificationsGeneral
Key FeaturesCapacitive touch LCD, proximity sensor, ambient light sensor, scratch-resistant glass, PoE, Project Designer templates, Mini USB firmware updates, Workplace Control support
ModelApprimo Touch 7
TypeRoom Control Touch Panel
What's in the BoxMounting bracket and screws, ejector pin, USB-OTG adapter, polishing cloth
Display
Brightness350 nits
Panel TechnologyLCD
Resolution1024 x 595
Screen Size7 inch
Touch TechnologyPCAP
Connectivity
EthernetRJ-45, Cat 5e and above
PoEIEEE 802.3at Class 3, 15 W
USB PortsMini USB 2.0 × 1
Physical
ColorBlack
MountingSingle-gang US, EU and DK back boxes
Operating Temperature0 to 40 °C
Weight330 g
Compliance
CertificationsCE, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp Apprimo Touch 7 Room Control Panel (Black) – 920-01871-10000 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Apprimo Touch 7 need a separate power supply?
No. The Apprimo Touch 7 is PoE powered under IEEE 802.3at Class 3 (15 W), so a single CAT5e or CAT6 cable carries both power and the network connection. No separate power adaptor is needed at the panel.
Can the Apprimo Touch 7 be mounted in a standard wall box?
Yes. It mounts in a standard single-gang back box and fits US, EU and DK back boxes. The mounting bracket and screws are included with the panel. Because it is PoE powered, only one CAT5e or CAT6 cable needs to reach the wall box, and Procure.ae provides installation across the UAE.
Can the Apprimo Touch 7 run custom control interfaces?
Yes. Interfaces are designed in Project Designer software, which includes several pre-built templates and themes. The panel supports Biamp Workplace Control, a software-based control solution that is simple to deploy and flexible enough to handle any connected device, including complex systems.
Does the Apprimo Touch 7 wake up when someone approaches?
Yes. A proximity sensor turns the 7-inch display on as someone approaches, and an ambient light sensor is also included. The display has 350 nits of maximum brightness and a 1024 x 595 resolution.
