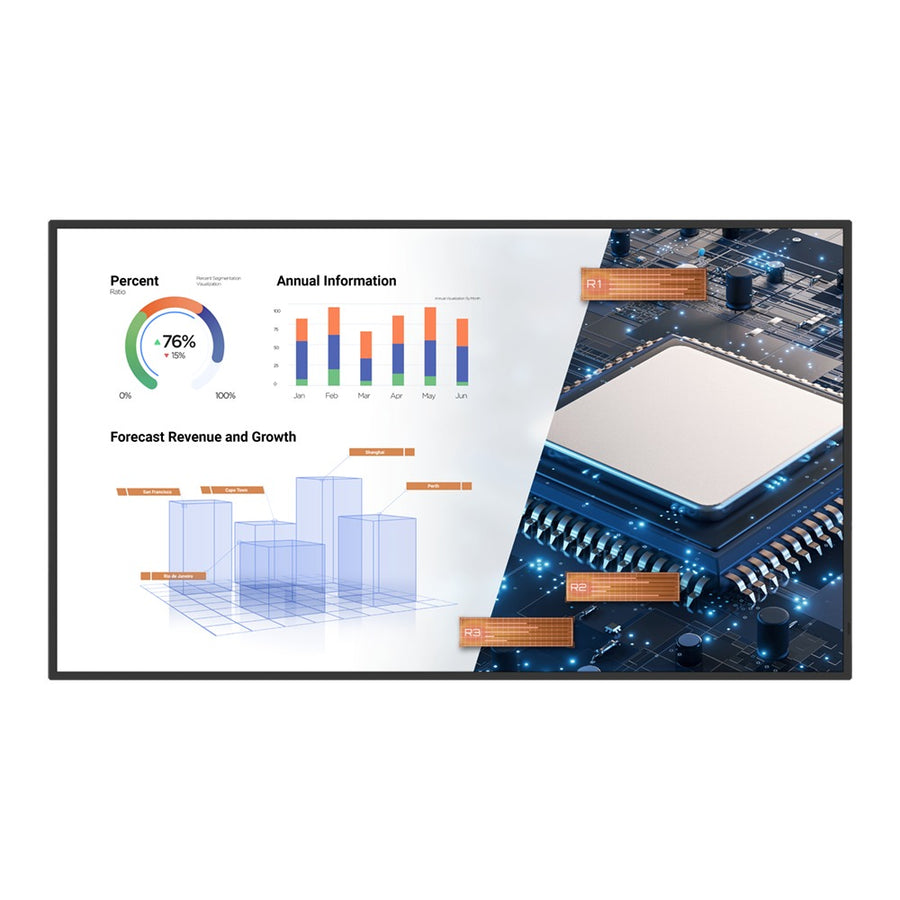

BenQ ST6502S 65-inch 4K UHD smart signage displayBenQ
Digital SignageSKU ST6502S

BenQ Smart Signage ST02S 65-inch 4K UHD Digital Signage Display – ST6502S

The BenQ Smart Signage ST6502S is a 65-inch 4K UHD digital signage display for schools and businesses, with a 400-nit ADS panel, 1,200:1 typical contrast and built-in Android 8.0. It supports InstaShare 1 wireless screen sharing and DMS device management. Procure.ae supplies the BenQ ST6502S across the UAE.

The ST6502S has a 65-inch 3840 x 2160 (4K UHD) ADS panel with 400 nits typical brightness, 1,200:1 typical contrast and a 72% NTSC colour gamut, with 8-bit colour depth and an 8 ms response time. It is specified for 18 hours a day, seven days a week, and runs Android 8.0 on two A73 and two A53 processor cores with a Mali-G51MP2 GPU. Two 10 W speakers provide built-in audio, and the listed cables include a 1.5 m HDMI cable, with one remote control.

The ST6502S suits classrooms, reception areas, corporate lobbies and retail signage that is managed remotely. Wireless sharing uses InstaShare 1 from the BenQ App Store, and DMS device management and the X-Sign Broadcast system support remote management and content broadcasting. An OPS slot takes a slot-in PC, and VESA 400 x 400 mm mounting is specified. Compared with the BenQ ST6504, this model has an 8-bit panel, 400-nit brightness, Android 8.0 and a 155 W typical power draw, against 10-bit, 350 nits, Android 14.0 and 76 W on the ST6504.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Smart Signage Display
  • 4K UHD Panel
  • Wireless Screen Sharing
  • Remote Device Management
Price
On request · best price
1
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD Panel
3840 x 2160 resolution on a 65-inch 16:9 ADS panel with 400 nits typical brightness.
02
Wireless Screen Sharing
InstaShare 1 wireless screen sharing from the BenQ App Store.
03
Remote Device Management
DMS device management with the X-Sign Broadcast system.
04
Built-in Android 8.0
Android 8.0 on two A73 and two A53 processor cores with a Mali-G51MP2 GPU.
05
Expansion Slot
OPS slot for a slot-in PC, plus a VGA input and a microSD card reader.
06
Ports and Connectivity
Ethernet rated 10/100 Mbps, RS-232, two USB 2.0 ports and 3.5 mm audio in and out.
07
Integrated Speakers
Two 10 W speakers and an IR sensor.

Specifications

31 specifications
General
Key Features4K UHD panel, 400-nit ADS display, InstaShare 1 wireless sharing, DMS device management, X-Sign Broadcast, IR sensor, Android 8.0, OPS slot
ModelST6502S
TypeSmart Signage Display
What's in the BoxHDMI cable (1.5 m), remote control × 1
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth8-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Performance
GraphicsMali-G51MP2
Operating SystemAndroid 8.0
ProcessorA73 × 2 + A53 × 2
Audio
Speaker Output2 × 10 W
Connectivity
Ethernet10 / 100 Mbps × 1
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 2.0 × 2, VGA × 1, OPS slot × 1, microSD × 1, RS-232 × 1, Ethernet × 1, 3.5 mm audio in × 1, 3.5 mm audio out × 1
Serial PortRS-232 × 1
Power
Power Consumption155 W (typical)
Standby Power<0.5 W
Physical
Dimensions1462.3 x 837.3 x 68.9 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1605 x 965 x 220 mm
VESA Mount400 x 400 mm
Compliance
CertificationsENERGY STAR

Questions

Can’t find your answer? Ask on WhatsApp

Does the ST6502S support wireless screen sharing?
Yes. It supports InstaShare 1 wireless screen sharing, which is installed from the BenQ App Store. Remote management is handled through DMS, and the X-Sign Broadcast system is listed for content broadcasting.
Can the ST6502S be wall mounted?
Yes. The display has a VESA 400 x 400 mm mounting pattern with four M8 x 15 mm screws. The manufacturer's specifications do not list a wall-mount bracket, so a VESA-compatible wall or stand mount needs to be selected separately.
Is the ST6502S suitable for a classroom or meeting room?
Yes. The 65-inch 4K UHD panel has 400 nits typical brightness and 1,200:1 typical contrast, with two 10 W speakers for built-in audio. The specifications also list an IR sensor, a remote control and a 1.5 m HDMI cable.
Which ports does the ST6502S have for connecting a PC or network?
It has a VGA input, an OPS slot for a slot-in PC, a 10/100 Mbps Ethernet port, RS-232, two USB 2.0 ports, a microSD card reader and 3.5 mm audio in and out. The manufacturer's specifications do not give an HDMI port count.
