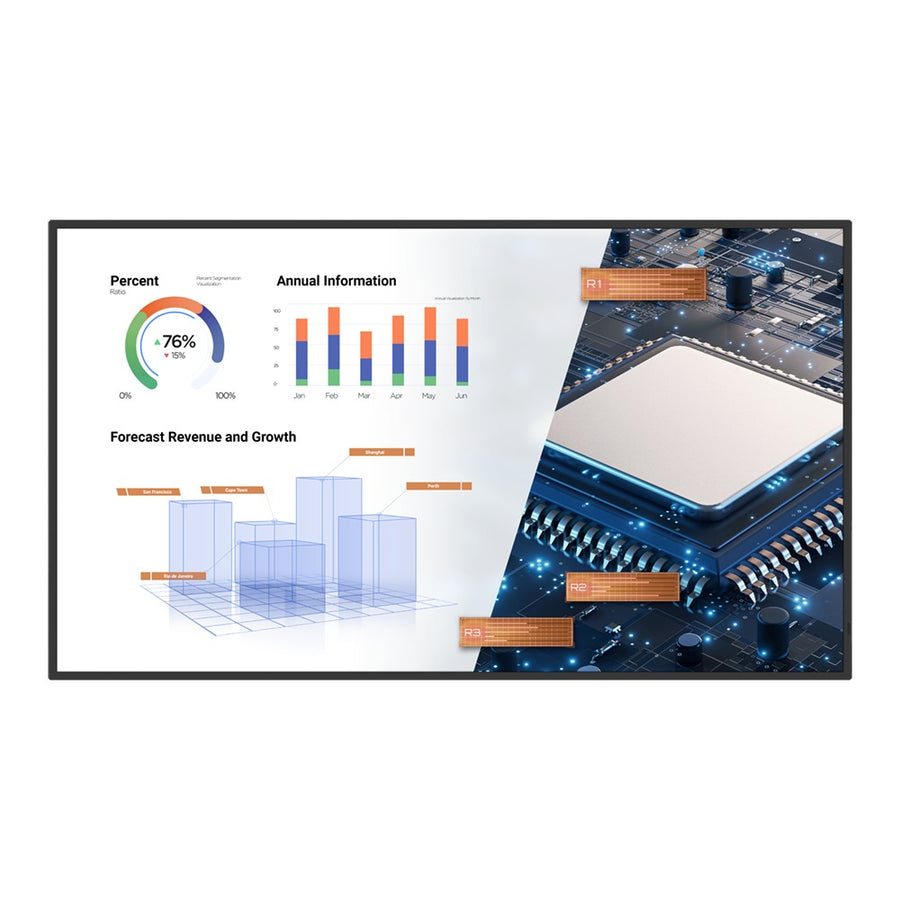

The BenQ Smart Signage ST6502S is a 65-inch 4K UHD digital signage display for schools and businesses, with a 400-nit ADS panel, 1,200:1 typical contrast and built-in Android 8.0. It supports InstaShare 1 wireless screen sharing and DMS device management. Procure.ae supplies the BenQ ST6502S across the UAE.
The ST6502S has a 65-inch 3840 x 2160 (4K UHD) ADS panel with 400 nits typical brightness, 1,200:1 typical contrast and a 72% NTSC colour gamut, with 8-bit colour depth and an 8 ms response time. It is specified for 18 hours a day, seven days a week, and runs Android 8.0 on two A73 and two A53 processor cores with a Mali-G51MP2 GPU. Two 10 W speakers provide built-in audio, and the listed cables include a 1.5 m HDMI cable, with one remote control.
The ST6502S suits classrooms, reception areas, corporate lobbies and retail signage that is managed remotely. Wireless sharing uses InstaShare 1 from the BenQ App Store, and DMS device management and the X-Sign Broadcast system support remote management and content broadcasting. An OPS slot takes a slot-in PC, and VESA 400 x 400 mm mounting is specified. Compared with the BenQ ST6504, this model has an 8-bit panel, 400-nit brightness, Android 8.0 and a 155 W typical power draw, against 10-bit, 350 nits, Android 14.0 and 76 W on the ST6504.
| Key Features | 4K UHD panel, 400-nit ADS display, InstaShare 1 wireless sharing, DMS device management, X-Sign Broadcast, IR sensor, Android 8.0, OPS slot |
| Model | ST6502S |
| Type | Smart Signage Display |
| What's in the Box | HDMI cable (1.5 m), remote control × 1 |
| Aspect Ratio | 16:9 |
| Brightness | 400 nits |
| Color Depth | 8-bit |
| Color Gamut | 72% NTSC |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape |
| Panel Technology | ADS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 65 inch |
| Graphics | Mali-G51MP2 |
| Operating System | Android 8.0 |
| Processor | A73 × 2 + A53 × 2 |
| Speaker Output | 2 × 10 W |
| Ethernet | 10 / 100 Mbps × 1 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | USB 2.0 × 2, VGA × 1, OPS slot × 1, microSD × 1, RS-232 × 1, Ethernet × 1, 3.5 mm audio in × 1, 3.5 mm audio out × 1 |
| Serial Port | RS-232 × 1 |
| Power Consumption | 155 W (typical) |
| Standby Power | <0.5 W |
| Dimensions | 1462.3 x 837.3 x 68.9 mm |
| Duty Cycle | 18 hours / 7 days |
| Operating Humidity | 10% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1605 x 965 x 220 mm |
| VESA Mount | 400 x 400 mm |
| Certifications | ENERGY STAR |
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
