BenQInteractive Flat PanelsSKU RM5502K

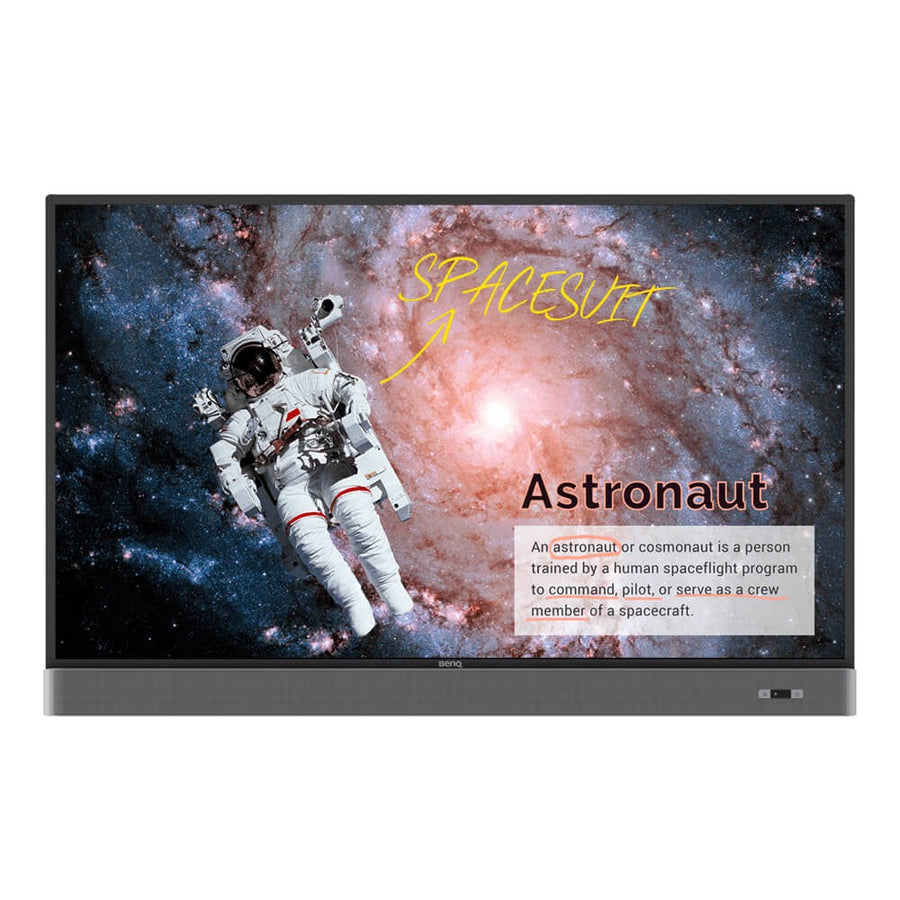

BenQ Board Master RM02K 55-inch Interactive Flat Panel – RM5502K
The BenQ RM5502K is a 55-inch 4K UHD interactive flat panel for classrooms and small meeting rooms. It has a VA panel with 5,000:1 typical contrast, 20-point infrared touch and an OPS slot for a slot-in PC. Procure.ae supplies BenQ RM5502K in the UAE, with quotes, delivery and installation.
The RM5502K pairs a 55-inch VA panel with 3840 × 2160 resolution, 400 nits typical brightness and 5,000:1 typical contrast. Infrared touch supports 20 points with a touch response time under 8 ms. Colour depth is 10-bit with a 68% NTSC gamut. Two 16 W speakers, a 3.5 mm earphone output and an optical S/PDIF output cover classroom audio. The panel carries nano-ionic silver germ-resistant technology and a 9H tempered surface.
The RM5502K suits classrooms, seminar rooms and small meeting spaces where a 55-inch screen is enough. It runs Android 8.0 with an OPS slot for a slot-in PC, includes EZWrite 5.0 whiteboarding, and offers InstaShare 1 wireless sharing through the BenQ App Store. DMS and AMS handle device and account management. It mounts on a VESA 400 × 200 mm pattern. Compared with the 65-inch RM6502K in the same series, it has a smaller footprint and a lower typical power draw of 102 W.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD VA panel
- 20-point infrared touch
- Android 8.0 with OPS slot
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD VA panel
3840 × 2160 resolution with 5,000:1 typical contrast.
02
20-point infrared touch
Touch response time under 8 ms.
03
Android 8.0 with OPS slot
Native Android 8.0 plus one OPS slot for a slot-in PC.
04
EZWrite 5.0 whiteboarding
Whiteboarding software included on the panel.
05
Wireless sharing
InstaShare 1, available through the BenQ App Store.
06
Device and account management
DMS device management and AMS account management.
07
Audio outputs
2 × 16 W speakers, 3.5 mm earphone output and optical S/PDIF.
08
Low power draw
102 W typical power consumption and under 0.5 W on standby.
Specifications
35 specificationsGeneral
Key Features4K UHD, VA panel, 5, 000:1 contrast, 20-point touch, Infrared touch, Android 8, OPS slot
ModelRM5502K
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness400 nits
Color Depth10-bit
Color Gamut68% NTSC
Contrast Ratio5,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8.5 ms
Screen Size55 inch
Touch Points20-point multi-touch
Touch Response Time< 8 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 8
ProcessorQuad-core (A73 × 2 + A53 × 2) CPU, Mali-G51 MP4 GPU
Storage Conditions-20 to 60 °C, 10% to 90% RH (non-condensing)
Audio
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
Speaker Output2 × 16 W
Connectivity
Ethernet10/100/1000 Mbps × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
USB PortsUSB-A × 2 (2.0), USB-A × 3 (3.0), USB-B touch × 2 (2.0)
VGA Input1
Power
Power Consumption102 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1268.1 x 814.5 x 115.6 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1428 x 922 x 225 mm
Surface Protection9H tempered glass
VESA Mount400 x 200 mm
Downloads
Manufacturer documents for the BenQ Board Master RM02K 55-inch Interactive Flat Panel – RM5502K — datasheets, manuals, drawings and certificates.
- Datasheet – RM5502K
- Datasheet – RM5502K
- User manual – BenQ (covers 62 models)
- User manual – BenQ (covers 25 models)
- User manual – BenQ Board Master RM02K
- User manual – BenQ Board Master RM02K (Arabic)
- Control protocol (RS232 / LAN) – BenQ Board Master RM02K
- Certificate / compliance – BenQ Board Master RM02K / Board Pro RP02 / DuoBoard CP01K
Questions
Can’t find your answer? Ask on WhatsApp
What is the BenQ RM5502K?
The BenQ RM5502K is a 55-inch 4K UHD interactive flat panel with a VA panel, 20-point infrared touch and Android 8.0. It belongs to the BenQ Board Master RM02K series and includes an OPS slot, EZWrite 5.0 whiteboarding, and DMS and AMS management tools for schools and offices.
Is the RM5502K suitable for a classroom?
Yes. The 55-inch display with 20-point infrared touch, two 16 W speakers and an OPS slot suits a classroom or seminar room. The manufacturer's specifications do not state a recommended viewing distance, so Procure.ae can advise on placement for your room before installation.
Can the RM5502K be wall mounted?
Yes. It includes a wall mount and supports VESA 400 × 200 mm mounting screws (4 × M8 × 25L). Procure.ae can arrange delivery and installation across the UAE and confirm the fixing method for your wall or frame before the visit.
Does the RM5502K have a slot-in PC option?
Yes. It has one OPS slot for a slot-in PC, alongside its built-in Android 8.0 platform, so the panel can run both. Procure.ae can advise on a slot-in PC that suits your software needs before ordering.
Does it support wireless screen sharing?
Yes. InstaShare 1 wireless sharing is available on the RM5502K through the BenQ App Store. EZWrite 5.0 whiteboarding is included, and DMS and AMS handle device and account management for the panel.
