BenQInteractive Flat PanelsSKU CP7505

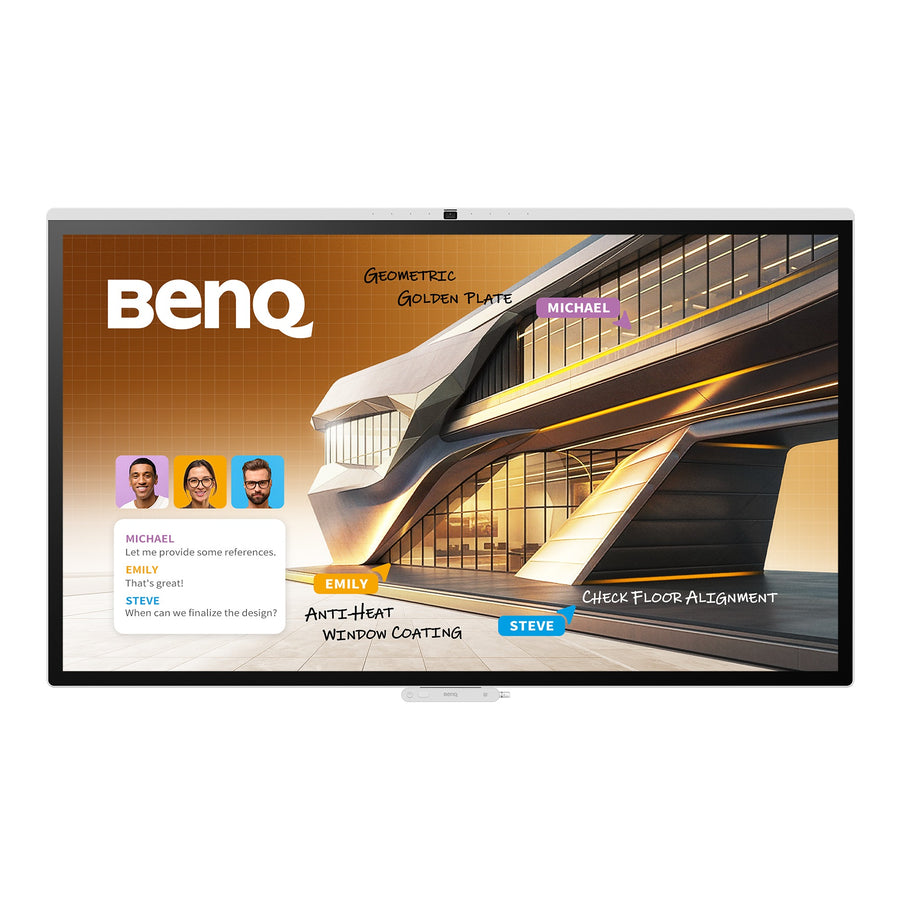

BenQ Board CP 75-inch Interactive Flat Panel – CP7505
The BenQ Board CP7505 is a 75-inch 4K interactive flat panel with capacitive touch for business meetings. It includes a 10 TOPS NPU, SummarAI automatic meeting minutes and a 50MP AI camera with 160° field of view. Procure.ae supplies the BenQ Board CP7505 in the UAE.
The CP7505 runs Android 15.0 on an Arm Cortex-A78 and A55 processor with a 10 TOPS NPU. Its 3840 x 2160 panel offers 450 nits typical brightness, a 1,200:1 typical contrast ratio, 10-bit color depth and 90% NTSC color gamut. Capacitive touch supports up to 50 points with a response time under 5 ms. The 8-microphone array picks up voices up to 12 m away, and audio comes from two 25 W speakers and a 40 W subwoofer. The panel offers Pantone-validated colors.
The CP7505 suits large meeting rooms, classrooms and collaboration spaces that need AI meeting tools. It adds SummarAI, multi-user login, meeting reservation and IT management, and it supports an OPS slot-in PC, Wi-Fi 6 and Ethernet. The panel is landscape only and mounts with a VESA 800 x 400 mm pattern. Compared with the CP5505, it is the 75-inch model with a subwoofer and 135 W typical power draw.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Capacitive
- Capacitive multi-touch
- 10 TOPS NPU
- SummarAI meeting minutes
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Capacitive multi-touch
Capacitive touch with up to 50 points and response time under 5 ms.
02
10 TOPS NPU
A 10 TOPS NPU for AI-powered features.
03
SummarAI meeting minutes
SummarAI creates automatic meeting minutes.
04
50MP AI camera
50MP camera with 160° field of view.
05
12 m voice pickup
8-microphone array with pickup up to 12 m (39 ft).
06
Subwoofer audio
Two 25 W speakers and one 40 W subwoofer.
07
Secure multi-user login
Secure multi-user login and meeting reservation.
08
IT management
DMS device management and AMS account management.
Specifications
36 specificationsGeneral
Key FeaturesSummarAI meeting minutes, Pantone-validated colors, multi-user login, meeting reservation, InstaShare 2, EZWrite 6.0, DMS and AMS management, low blue light
ModelCP7505
TypeInteractive Flat Panel
What's in the BoxHDMI, USB-C, USB-C to USB-A and RS-232 cables; wall mount
Display
Aspect Ratio16:9
Brightness450 nits
Camera50MP AI camera, 160° field of view
Color Depth10-bit
Color Gamut90% NTSC
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch PointsUp to 50-point multi-touch
Touch Response Time< 5 ms
Touch TechnologyCapacitive
Performance
Duty Cycle18 hours / 7 days
GraphicsArm Mali-G57 MC2
Operating SystemAndroid 15.0
ProcessorArm Cortex-A78 x 2 + A55 x 6, 10 TOPS NPU
Audio
Microphone8-microphone array, pickup up to 12 m
Speaker Output2 × 25 W, plus 1 × 40 W subwoofer
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 OPS slot
PortsUSB-A × 2 (3.0), USB-C × 2 (2.0 and 3.0, PD 65 W), 3.5 mm line out × 1
Wi-FiWi-Fi 6
Power
Power Consumption135 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1720.7 x 1052.7 x 97.5 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1880 x 1135 x 220 mm
VESA Mount800 x 400 mm
Compliance
CertificationsENERGY STAR, EDLA-certified
Downloads
Manufacturer documents for the BenQ Board CP 75-inch Interactive Flat Panel – CP7505 — datasheets, manuals, drawings and certificates.
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05 (Arabic)
- Control protocol (RS232 / LAN) – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- Certificate / compliance – CP7505
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the BenQ Board CP7505?
The CP7505 is a 75-inch display with a 3840 x 2160 (4K UHD) ADS panel in a 16:9 aspect ratio. Its panel brightness is 450 nits typical and its response time is 8 ms.
What touch technology does the CP7505 use?
The CP7505 uses capacitive touch with up to 50 points and a touch response time of less than 5 ms. The manufacturer lists the CM7505 with infrared touch, so the two models use different touch technology.
What does SummarAI do on the CP7505?
SummarAI creates automatic meeting minutes on the CP7505. The display has a 10 TOPS NPU for AI-powered features, and its 50MP AI camera and 8-microphone array pick up speakers up to 12 m away.
Can the CP7505 be wall mounted?
Yes. The CP7505 uses a VESA 800 x 400 mm pattern with 4 M8 x 25L screws and includes a wall mount. Its dimensions are 1720.7 x 1052.7 x 97.5 mm, so confirm the wall structure and bracket load before mounting.
Is the CP7505 landscape only?
Yes. The CP7505 supports landscape orientation only, so its 16:9 4K UHD panel suits wide-screen layouts. Its VESA 800 x 400 mm pattern calls for a wall or stand that can take the load, and Procure.ae can confirm the right mounting option for your room.
