BenQInteractive Flat PanelsSKU CP5505

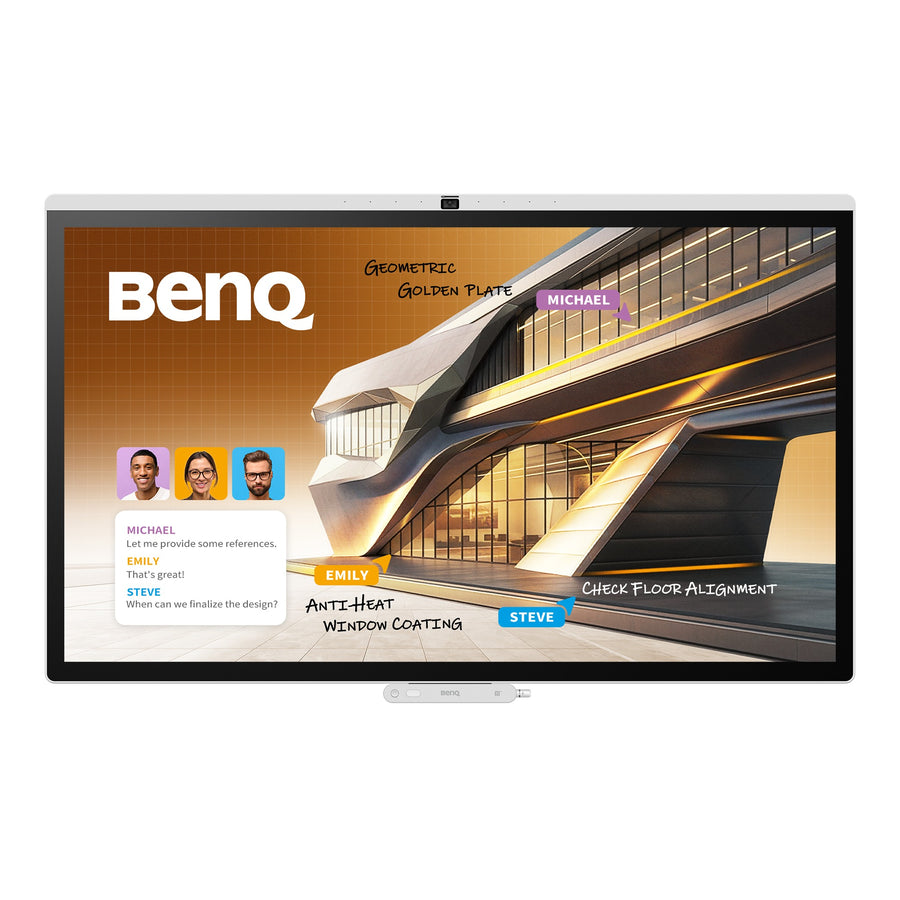

BenQ Board CP 55-inch Interactive Flat Panel – CP5505
The BenQ Board CP5505 is a 55-inch 4K interactive flat panel with capacitive touch for business meetings. It includes a 10 TOPS NPU, SummarAI automatic meeting minutes and a 50MP AI camera with 160° field of view. Procure.ae supplies the BenQ Board CP5505 in the UAE.
The CP5505 runs Android 15.0 on an Arm Cortex-A78 and A55 processor with a 10 TOPS NPU. Its 3840 x 2160 panel offers 450 nits typical brightness, a 1,200:1 typical contrast ratio, 10-bit color depth and 90% NTSC color gamut. Capacitive touch supports up to 50 points with a response time under 5 ms. The 8-microphone array picks up voices up to 12 m away, and two 15 W speakers provide audio. The panel offers Pantone-validated colors.
The CP5505 suits meeting rooms, classrooms and collaboration spaces that need AI meeting tools. It adds SummarAI, multi-user login, meeting reservation and IT management, and it supports an OPS slot-in PC, Wi-Fi 6 and Ethernet. Its 16:9 panel works in landscape or portrait orientation and mounts with a VESA 400 x 400 mm pattern. Compared with the CM5505, it is listed with capacitive touch and a 10 TOPS NPU.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Capacitive
- Capacitive multi-touch
- 10 TOPS NPU
- SummarAI meeting minutes
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Capacitive multi-touch
Capacitive touch with up to 50 points and response time under 5 ms.
02
10 TOPS NPU
A 10 TOPS NPU for AI-powered features.
03
SummarAI meeting minutes
SummarAI creates automatic meeting minutes.
04
50MP AI camera
50MP camera with 160° field of view.
05
12 m voice pickup
8-microphone array with pickup up to 12 m (39 ft).
06
Pantone-validated colors
Pantone-validated colors on a 10-bit 4K UHD panel.
07
Secure multi-user login
Secure multi-user login and meeting reservation.
08
IT management
DMS device management and AMS account management.
Specifications
36 specificationsGeneral
Key FeaturesSummarAI meeting minutes, Pantone-validated colors, multi-user login, meeting reservation, InstaShare 2, EZWrite 6.0, DMS and AMS management, low blue light
ModelCP5505
TypeInteractive Flat Panel
What's in the BoxHDMI, USB-C, USB-C to USB-A and RS-232 cables; wall mount
Display
Aspect Ratio16:9
Brightness450 nits
Camera50MP AI camera, 160° field of view
Color Depth10-bit
Color Gamut90% NTSC
Contrast Ratio1,200:1
OrientationLandscape and portrait
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch PointsUp to 50-point multi-touch
Touch Response Time< 5 ms
Touch TechnologyCapacitive
Performance
Duty Cycle18 hours / 7 days
GraphicsArm Mali-G57 MC2
Operating SystemAndroid 15.0
ProcessorArm Cortex-A78 x 2 + A55 x 6, 10 TOPS NPU
Audio
Microphone8-microphone array, pickup up to 12 m
Speaker Output2 × 15 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 OPS slot
PortsUSB-A × 2 (3.0), USB-C × 2 (2.0 and 3.0, PD 65 W), 3.5 mm line out × 1
Wi-FiWi-Fi 6
Power
Power Consumption95 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1272.8 x 799.6 x 85.2 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1380 x 880 x 220 mm
VESA Mount400 x 400 mm
Compliance
CertificationsENERGY STAR, EDLA-certified
Downloads
Manufacturer documents for the BenQ Board CP 55-inch Interactive Flat Panel – CP5505 — datasheets, manuals, drawings and certificates.
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05 (Arabic)
- Control protocol (RS232 / LAN) – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- Certificate / compliance – CP5505
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the BenQ Board CP5505?
The CP5505 is a 55-inch display with a 3840 x 2160 (4K UHD) ADS panel in a 16:9 aspect ratio. Its panel brightness is 450 nits typical and its response time is 8 ms.
What touch technology does the CP5505 use?
The CP5505 uses capacitive touch with up to 50 points and a touch response time of less than 5 ms. The manufacturer lists the CM5505 with infrared touch, so the two models use different touch technology.
What does SummarAI do on the CP5505?
SummarAI creates automatic meeting minutes on the CP5505. The display has a 10 TOPS NPU for AI-powered features, and its 50MP AI camera and 8-microphone array pick up speakers up to 12 m away.
Can the CP5505 be mounted on a wall?
Yes. The CP5505 uses a VESA 400 x 400 mm pattern with 4 M6 x 20L screws and includes a wall mount. Its dimensions are 1272.8 x 799.6 x 85.2 mm, so check the wall structure and bracket load before mounting.
Does the CP5505 support portrait orientation?
Yes. The CP5505 supports landscape and portrait orientation on its 16:9 4K UHD panel, which suits both wide-screen and vertical layouts. Procure.ae can confirm the right mount for your chosen orientation.
Can I buy the CP5505 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
