BarcoVideo WallsSKU Barco UniSee II

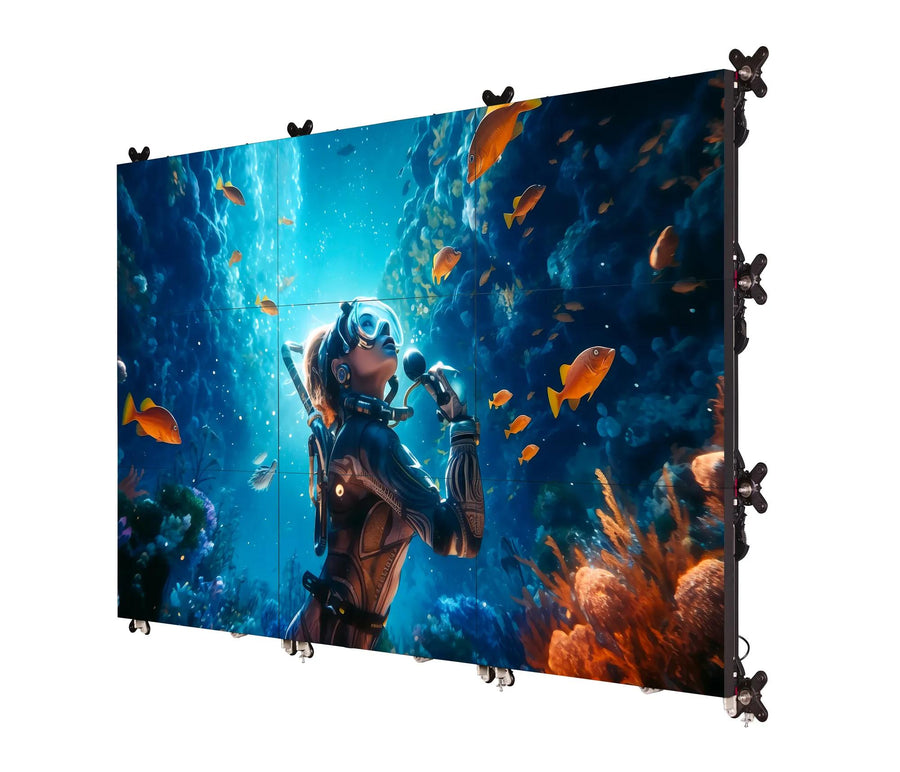

Barco UniSee II 55-inch LCD Video Wall Display – UniSee II
The Barco UniSee II is a 55-inch bezel-less LCD video wall display for control rooms, command centres and tiled installations. It offers 800 nits typical brightness, 1,300 nits peak, Full HD resolution and a Mini LED backlight. Procure.ae supplies the UniSee II across the UAE.
The UniSee II uses an IPS panel at 1920 x 1080 (Full HD, 16:9) with a direct Mini LED backlight of more than 5,000 LEDs. Typical luminance is 800 cd/m², with 1300 cd/m² in peak mode. The manufacturer lists a 1,200:1 typical contrast ratio, Smart dynamic contrast above 200,000:1, native 100% NTSC colour gamut and HDR10 compliance. Sense X automatic colour and brightness calibration is built in, and the backlight is rated at 60,000 hours typical.
The panel is designed for landscape or portrait mounting on the UniSee Smart mount or an InvisiMount, and it runs fan-less with temperature sensors embedded in each panel. Two HDMI 2.0 and two DisplayPort 1.2 inputs support 4K at 60 Hz, with two Ethernet ports for network control and a 60,000-hour backlight rating.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
800 nits (typical); 1300 nits peak
Type
LCD Video Wall Display
- Bezel-less design
- Mini LED backlight
- Peak brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Bezel-less design
Seamless tiling with no visible bezel between panels.
02
Mini LED backlight
Direct backlight with more than 5,000 LEDs for brightness and contrast.
03
Peak brightness
800 cd/m² typical and 1300 cd/m² in peak mode.
04
HDR10 support
HDR10 compliant processing for high dynamic range content.
05
Sense X calibration
Automatic colour and brightness calibration across the wall.
06
Fan-less cooling
Silent operation with embedded temperature sensors in each panel.
07
Flexible mounting
Landscape or portrait orientation on the UniSee Smart mount or InvisiMount.
Specifications
22 specificationsGeneral
Key FeaturesBezel-less design, Mini LED backlight, HDR10, Sense X automatic calibration, fan-less cooling, landscape and portrait operation
ModelBarco UniSee II
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
Brightness800 nits (typical); 1300 nits peak
Color Gamut100% NTSC
Color Temperature8000K native (typical)
Contrast Ratio1,200:1 (typical)
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response TimeLess than 8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out; HDMI 2.0 × 2 in; Ethernet × 2; USB × 2 (power only)
Power
Power Consumption225 W (internal power supply, typical)
Physical
Dimensions1211.36 x 682.02 x 91.10 mm (W x H x D, LCD with internal PSU)
Operating Humidity20% to 80% (non-condensing)
Operating Temperature0 to 40 °C
VESA MountStandard UniSee Smart mount or InvisiMount (optional)
Weight18.7 kg (LCD with internal PSU)
Compliance
CertificationsCE, FCC, UKCA, CCC, RoHS, WEEE, REACH, TÜV Rheinland eye comfort
Downloads
Manufacturer documents for the Barco UniSee II 55-inch LCD Video Wall Display – UniSee II — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco UniSee II used for?
The UniSee II is a 55-inch LCD video wall display for control rooms, command centres and tiled installations. The manufacturer describes it as designed for critical applications, with brightness and colour accuracy as key features.
Does the UniSee II support portrait mounting?
Yes. The manufacturer lists landscape and portrait operation for the UniSee II, which can be mounted on the UniSee Smart mount or an InvisiMount. Procure.ae can advise on the right mounting kit for your wall layout, including panel orientation and spacing.
What inputs does the UniSee II have?
It has two HDMI 2.0 inputs and two DisplayPort 1.2 inputs, each supporting 4K at 60 Hz. It also has one DisplayPort output, two Ethernet ports and two USB ports used for power only.
What is the power consumption of the UniSee II?
The manufacturer lists 225 W typical for the internal power supply and 220 W for the external power supply. It accepts 100–240 V AC, 50/60 Hz input. The panel is fan-less and has temperature sensors embedded in each panel, with an operating range of 0 to 40 °C.
Can I buy the UniSee II in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
