BarcoVideo WallsSKU Barco UniSee (UNI-8002)

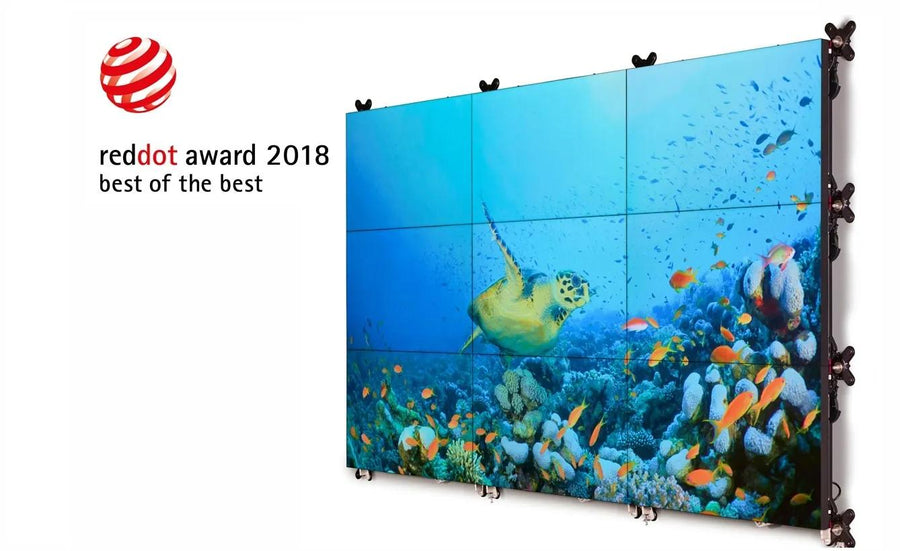

Barco UniSee 55-inch LCD Video Wall Display – UNI-8002
The Barco UniSee UNI-8002 is a 55-inch bezel-less LCD video wall display rated at 800 cd/m² typical brightness and 4,000:1 typical contrast. It suits control rooms and 24/7 tiled walls, with Sense X automatic calibration and a 100,000-hour backlight lifetime. Procure.ae supplies the Barco UNI-8002 across the UAE.
The UNI-8002 has a direct LED backlight, a 178-degree viewing angle and a response time under 8 ms. Sense X automatic color and brightness calibration keeps the tiles of the wall balanced. It supports 10- to 12-bit color depth at 50 Hz or 60 Hz refresh, with a typical white point of 10,500 K. The display is fanless and rated for 24/7 operation at 0 to 40 °C, with 10% to 80% operational humidity, non-condensing.
Power draw is listed at 190 W for 800 nit, 170 W for 700 nit and 100 W for 350 nit, on the internal power supply. The UNI-8002 differs from the UniSee 500+ in brightness and inputs: it is rated at 800 cd/m² typical against 500 cd/m² for the 500+, and it has two HDMI 1.4 inputs where the 500+ has HDMI 2.0. Setup and maintenance use the UniSee Connect module, which guides installation and detects panels automatically.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
800 nits (typical); 700 and 350 nit...
Type
LCD Video Wall Display
- 800 nit brightness
- High contrast
- Long backlight life
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
800 nit brightness
800 cd/m² typical, with 700 and 350 nit settings also listed.
02
High contrast
4,000:1 typical contrast ratio.
03
Long backlight life
A 100,000-hour typical backlight lifetime.
04
Bezel-less design
The gap between tiles is barely noticeable across the wall.
05
Sense X calibration
Continuous automatic color and brightness calibration.
06
Fanless 24/7 operation
Fanless cooling, rated for 24/7 operation at 0 to 40 °C.
07
Connectivity
Two DisplayPort 1.2 and two HDMI 1.4 inputs, with two Ethernet ports.
Specifications
26 specificationsGeneral
Key Features800 nit brightness, 4,000:1 contrast, bezel-less design, Sense X calibration, fanless 24/7 operation, 100,000-hour backlight, UniSee Connect setup
ModelBarco UniSee (UNI-8002)
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel SizeBezel-less
Brightness800 nits (typical); 700 and 350 nit settings listed
Color Depth10 to 12-bit
Color Temperature10,500 K (typical)
Contrast Ratio4,000:1 (typical)
Lamp Life100,000 hours (backlight, typical)
Refresh Rate50 Hz / 60 Hz
Resolution1920 x 1080 (Full HD)
Response Time< 8 ms
Screen Size55 inch
Viewing Angle178° / 178°
Performance
Duty Cycle24/7
Storage Conditions-20 to 65 °C; 10% to 90% RH, non-condensing
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out; HDMI 1.4 × 2 in; Ethernet × 2; USB × 2 (power only)
Power
Power Consumption190 W at 800 nit (internal PSU); 175 W (external PSU), typical
Physical
Dimensions1213.5 x 683 x 102.4 mm (internal PSU)
Operating Humidity10% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Weight17.4 kg (LCD net); 15 kg (LCM net)
Compliance
CertificationsCE (EN 55032, EN 55024, EN 60950-1); RoHS (EN 50581)
Downloads
Manufacturer documents for the Barco UniSee 55-inch LCD Video Wall Display – UNI-8002 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the UNI-8002 bezel-less?
Yes. The UniSee UNI-8002 is listed as bezel-less, so the gap between tiles is barely noticeable and content can span several panels without a black border. Bezel-less design suits seamless video walls where a continuous image matters.
Does the UNI-8002 have HDMI 2.0 inputs?
No. The manufacturer lists two HDMI 1.4 inputs. It also has two DisplayPort 1.2 inputs and one DisplayPort 1.2 output, and DisplayPort 1.2 cables are required for runs longer than 3 m (10 feet).
What brightness levels and power draw does it have?
The manufacturer lists three brightness levels: 800 nit, 700 nit and 350 nit. Typical power draw on the internal power supply is 190 W at 800 nit, 170 W at 700 nit and 100 W at 350 nit.
Is it rated for 24/7 operation?
Yes. The manufacturer lists 24/7 operation, fanless cooling and an operating temperature of 0 to 40 °C. Operational humidity is 10% to 80%, non-condensing, and storage is rated at -20 to 65 °C.
Which safety and EMC standards does it list?
The manufacturer lists EN 55032 and EN 55024 for EMC, EN 60950-1 for product safety and EN 50581 for RoHS. The EMC class is Class A under CE, FCC or UL.
Can I buy the Barco UNI-8002 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
