Barco TransForm Video Wall Controller – NSD-430

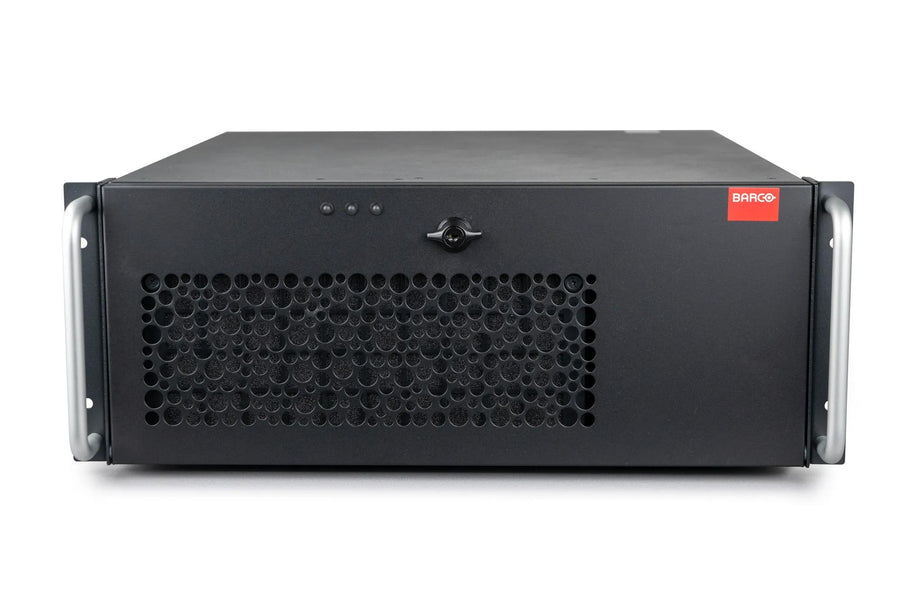

The Barco TransForm NSD-430 is a 4U 19-inch rackmount video wall controller. It drives up to 16 4K UHD displays or up to 64 HD displays, and it runs on an Intel Xeon Silver 4310 processor with RAID-1 solid-state storage. Procure.ae, an authorised reseller, supplies the TransForm NSD-430 across the UAE.

The TransForm NSD-430 captures networked video sources and local HDMI and DisplayPort inputs, then shows them on a video wall in high-resolution 3D images, including 3D-accelerated content. Its input cards take up to five dual-channel DisplayPort 1.2 inputs at up to 4096 x 2160 at 60 Hz, plus HDMI 2.0 and HDMI 1.4 inputs. Memory runs from 32 GB to 256 GB, and the chassis uses two 480 GB or two 960 GB solid-state drives in RAID-1 with two 1 Gb/s LAN ports.

The NSD-430 works as a standalone controller, or as a display node in a networked TransForm N video wall. It is a qualified platform for Barco's CMS control room management software, which lets operators organise display content on the wall to improve decision-making. It installs in a 19-inch rack and operates at 0 to 35 °C with 5% to 80% humidity, non-condensing. Procure.ae supplies it for control rooms and monitoring centres across the UAE.
