BarcoVideo WallsSKU EMS-110

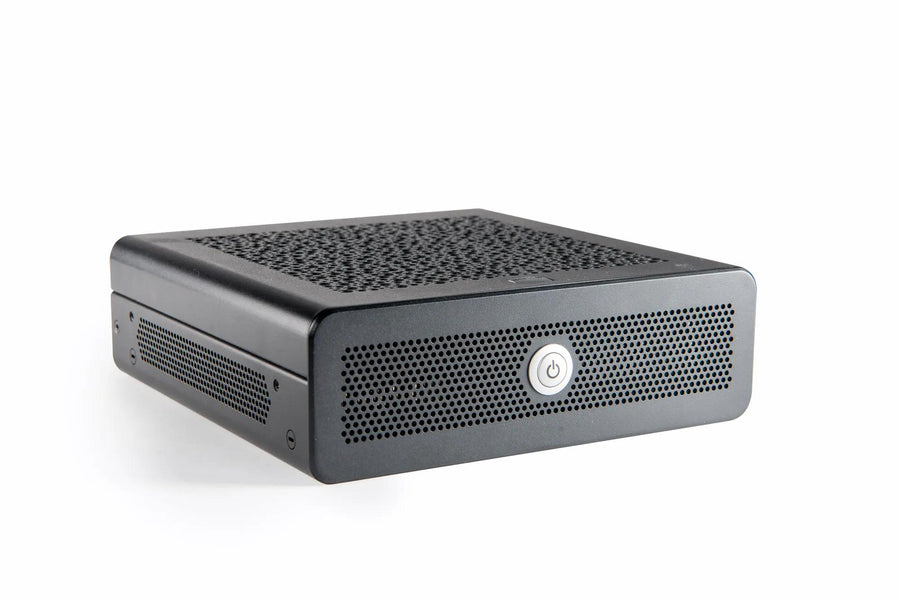

Barco TransForm N EMS-110 Networked Visualization Server – EMS-110
The Barco EMS-110 is a networked visualization server from the TransForm N range. It manages and redistributes up to 70 channels of streaming video, with a maximum aggregated bandwidth of 300 Mbit/s, on an Intel Core i5 with 8 GB RAM and a 128 GB industrial SSD. Procure.ae supplies the EMS-110 in the UAE.
The EMS-110 processes and redistributes up to 70 channels of streaming video, with a maximum aggregated bandwidth of 300 Mbit/s. It pre-processes streams on the fly and feeds them to Barco's universal decoders with low latency. An integrated watchdog supports high availability of the streaming video, and NIC bonding provides active fail-over of the network port. It supports UDP streams (elementary and transport streams) and TCP streams such as Milestone XProtect.
The EMS-110 is compatible with a growing list of encoders and cameras, including support for high frame rate and megapixel images, and it runs Linux. It has two 1 Gb/s LAN ports and mounts on the P110 VESA mount for one OPS-110 and one power supply. It shares the processor, memory, storage and power specifications of the Barco NAN-110 audio node in the same range, so the two can be specified together.
Type
Networked Visualization Server
Weight
2.2 kg (4.5 kg packed)
- Up to 70 channels
- 300 Mbit/s bandwidth
- Low-latency processing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Up to 70 channels
Manages and harmonizes up to 70 streaming video channels.
02
300 Mbit/s bandwidth
Maximum aggregated bandwidth of 300 Mbit/s for streaming video.
03
Low-latency processing
Pre-processes streams on the fly before they reach Barco's universal decoders.
04
Integrated watchdog
Supports high availability of streaming video.
05
Wide protocol support
UDP elementary and transport streams and TCP streams such as Milestone XProtect.
06
NIC bonding
Active fail-over of the device network port.
07
Load reporting
Reports load for higher-level resource management.
Specifications
19 specificationsGeneral
Key FeaturesUp to 70 channels, watchdog high availability, NIC bonding, load reporting, low-latency pre-processing
ModelEMS-110
TypeNetworked Visualization Server
What's in the BoxEMS-110 server, power supply, mounting bracket set, vertical stand, region-specific mains cable (optional)
Performance
Bandwidth300 Mbit/s (maximum aggregated)
Operating SystemLinux
ProcessorIntel Core i5
RAM8 GB
Storage128 GB industrial SSD
Audio
ChannelsUp to 70 channels
Connectivity
Ethernet2 × 1 Gb/s LAN
Input Voltage90–264 V AC, 47–63 Hz
ProtocolsUDP (elementary and transport streams); TCP streams
Power
Power Consumption83 W (typical); 109 W (maximum)
Physical
MountingP110 VESA mount (R9811098) for one OPS-110 and one power supply
Operating HumidityUp to 80% (non-condensing)
Operating Temperature0 to 40 °C
Weight2.2 kg (4.5 kg packed)
Compliance
CertificationsCE, CB, UL, RCM, BIS, CU-EAC, CCC, KC, FCC Class A
Downloads
Manufacturer documents for the Barco TransForm N EMS-110 Networked Visualization Server – EMS-110 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the Barco EMS-110 do?
The EMS-110 is a networked visualization server. It processes and redistributes up to 70 channels of streaming video, up to 300 Mbit/s in total, as part of Barco's networked visualization solution.
Does the EMS-110 support Milestone XProtect?
Yes. The manufacturer lists support for TCP streams such as Milestone XProtect, alongside UDP elementary and transport streams. The device also provides load reporting, which allows higher-level resource management across the streams it processes.
Which encoders and cameras work with the EMS-110?
The manufacturer describes a continuously growing list of compatible encoders and cameras, including support for high frame rate and megapixel images. Check the current compatibility list with Procure.ae before ordering.
How is the EMS-110 powered and mounted?
It uses an external 150 W power supply that accepts 90–264 V AC, 47–63 Hz, and the power supply is a separate unit in the package. The manufacturer lists a P110 VESA mount for one OPS-110 and one power supply. Procure.ae can confirm the region-specific mains cable for your site.
