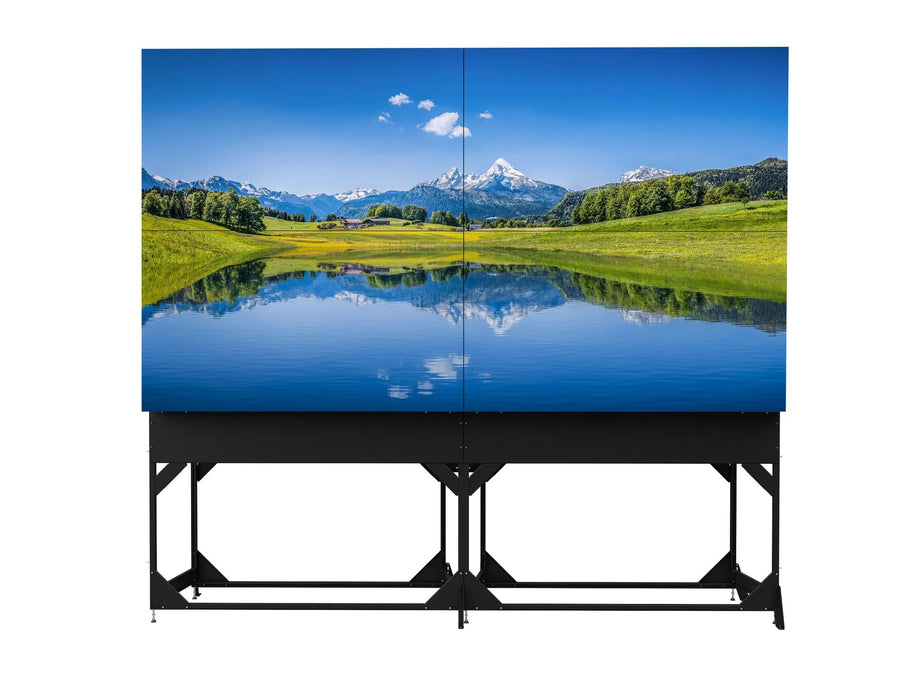

Barco OverView RGB Laser 80-inch Rear-Projection Video Wall Cube – ODL-821

The Barco OverView RGB Laser ODL-821 is an 80-inch Full HD rear-projection video wall cube for 24/7 control rooms. It uses RGB laser illumination with a light source rated at 125,000 hours in Normal and Eco mode, and it reaches 500 nits in Boost mode. Procure.ae supplies the ODL-821 in the UAE.

The ODL-821 uses RGB laser illumination with no rotating color wheel, so each color is controlled individually, according to the manufacturer. It delivers 500 nits in Boost mode, 390 nits in Normal mode and 195 nits in Eco mode, with a 1800:1 contrast ratio and up to 170% REC709 color. The light source is rated above 125,000 hours in Normal and Eco mode, and 60,000 hours in Boost mode. Redundant laser banks and power supply drivers support uptime.

The manufacturer notes that 80-inch cubes need fewer seams across a large video wall. Power draw is 120 W in Eco mode, 200 W in Normal mode and 260 W in Boost mode, on 100–240 V AC. It takes two DisplayPort 1.2 inputs, one DisplayPort output and two HDMI 2.0 inputs at 4K and 60 Hz, and it is managed through its web server or WEB service API. The projection module weighs 65.5 kg.
