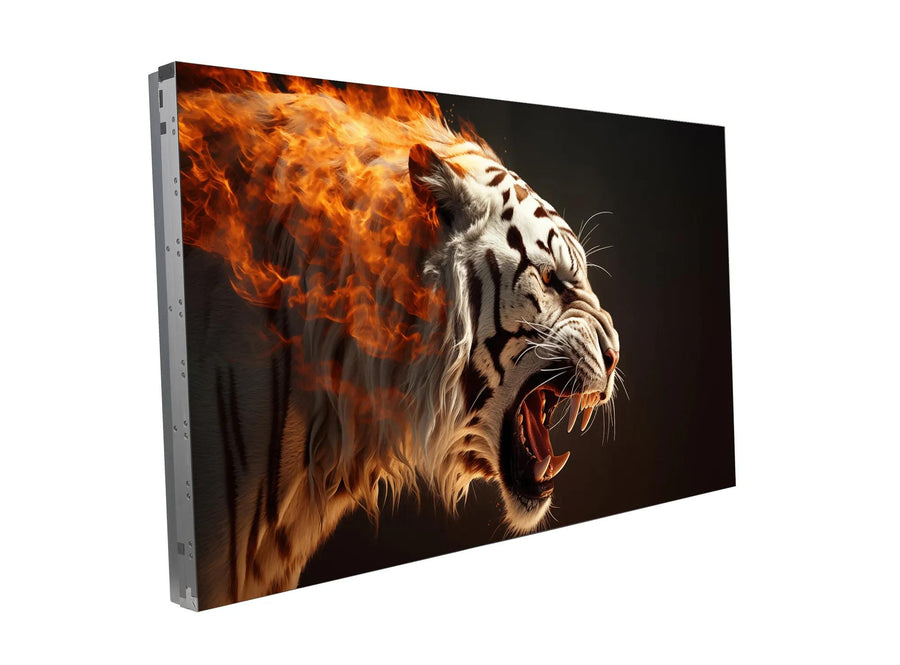

Barco OverView 55-inch LCD Video Wall Display – LVD-5521D
The Barco OverView LVD-5521D is a 55-inch Full HD LCD video wall display with IPS technology and 1.8 mm ENB bezels, built for tiled video walls. It offers 500 cd/m² typical brightness, a 1,200:1 typical contrast ratio and a 60,000-hour typical backlight lifetime. Procure.ae supplies the OverView LVD-5521D across the UAE.
The LVD-5521D is a mid-level brightness, cost-optimised display in the ENB 1.8 mm bezel generation. It uses in-plane switching (IPS) with a direct LED backlight, an 8 ms response time and 178-degree horizontal and vertical viewing angles. Sense X automatic color and brightness calibration keeps the wall balanced. The display is fanless, rated for 0 to 40 °C operation and 10% to 90% humidity, non-condensing, and draws 170 W typical at 500 nit native.
The LVD-5521D has a narrower bezel than the UNB-generation KVD-5521C and KVD-5521D, at 1.8 mm against 3.5 mm. Its 170 W typical power draw sits between the 160 W of the KVD-5521D and the 190 W of the KVD-5521C, all at 500 nit native. Inputs are two DisplayPort 1.2 and two HDMI 2.0, with one DisplayPort 1.2 output, one Ethernet port and one USB port used for power only. Mounting uses a 600 x 400 mm VESA pattern.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (typical)
Type
LCD Video Wall Display
- IPS panel
- Narrow ENB bezel
- Sense X calibration
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
IPS panel
In-plane switching LCD technology with a direct LED backlight.
02
Narrow ENB bezel
A 1.8 mm (0.07-inch) bezel width generation.
03
Sense X calibration
Automatic color and brightness calibration across the wall.
04
Long backlight life
A 60,000-hour typical backlight lifetime.
05
Fanless cooling
A fanless design rated for 0 to 40 °C operation.
06
Connectivity
Two DisplayPort 1.2 and two HDMI 2.0 inputs, plus one Ethernet port.
07
VESA mounting
A 600 x 400 mm mounting pattern with HDCP 2.2 support.
Specifications
24 specificationsGeneral
Key FeaturesIPS panel, Sense X automatic calibration, fanless cooling, 1.8 mm ENB bezel, 60,000-hour typical backlight, HDCP 2.2
ModelOverView LVD-5521D
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size1.8 mm (ENB generation)
Brightness500 nits (typical)
Color Temperature10,000 K native white point (typical)
Contrast Ratio1,200:1 (typical)
Lamp Life60,000 hours (backlight, typical)
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Storage Conditions-20 to 60 °C; 5% to 90% RH, non-condensing
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out; HDMI 2.0 × 2; Ethernet × 1; USB × 1 (power only)
Power
Power Consumption170 W (typical, 500 nit native)
Physical
Dimensions1211.5 x 682.3 x 122.1 mm
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight27.55 kg
Downloads
Manufacturer documents for the Barco OverView 55-inch LCD Video Wall Display – LVD-5521D — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LVD-5521D an IPS display?
Yes. The manufacturer lists in-plane switching (IPS) LCD technology with a direct LED backlight. The viewing angle is 178 degrees horizontal and vertical, and the response time is 8 ms.
What bezel width does the LVD-5521D have?
It belongs to the ENB generation with a 1.8 mm (0.07-inch) bezel width. That is narrower than the 3.5 mm UNB bezel on the KVD-5521C and KVD-5521D, which suits tiled walls where a smaller gap between panels is wanted.
What is the typical power draw of the LVD-5521D?
The typical power consumption is 170 W at 500 nit native, on 100 to 240 V AC, 50 to 60 Hz input. The operating range is 0 to 40 °C, and the display is fanless.
Which inputs and outputs does it include?
It has two DisplayPort 1.2 inputs, one DisplayPort 1.2 output, two HDMI 2.0 inputs, one Ethernet port and one USB port used only for power. The manufacturer requires DisplayPort 1.2 cables for runs longer than 3 m (10 ft).
Is the LVD-5521D suitable for wall mounting?
Yes. It uses a VESA 600 x 400 mm mounting pattern. The active screen diagonal is 55 inches (1397 mm), the net weight is 27.55 kg and the dimensions are 1211.5 x 682.3 x 122.1 mm.
