BarcoVideo WallsSKU OverView KVD-5521C

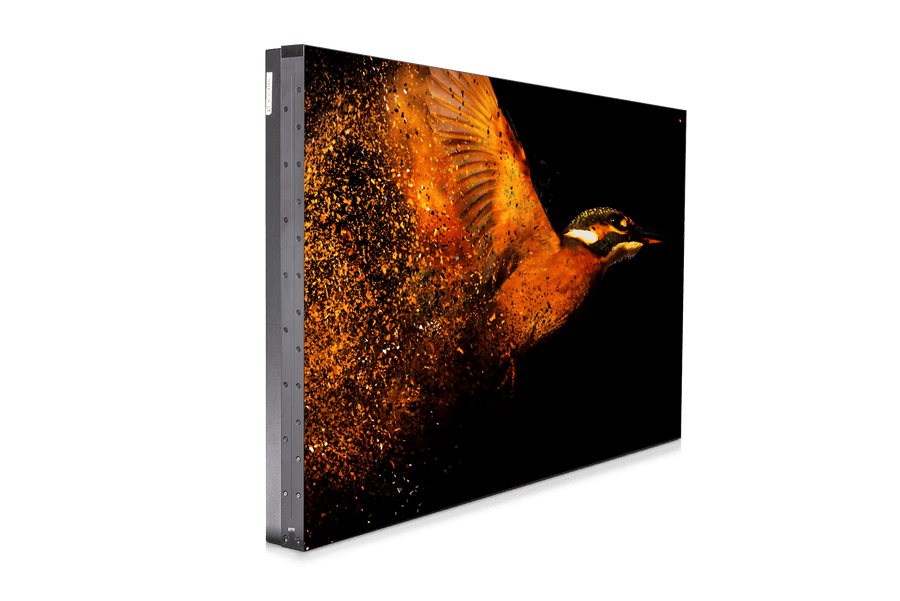

Barco OverView 55-inch LCD Video Wall Display – KVD-5521C
The Barco OverView KVD-5521C is a 55-inch Full HD LCD video wall display for tiled walls that run around the clock. It offers 500 cd/m² typical brightness, a 1,200:1 typical contrast ratio and a 3.5 mm UNB bezel with fanless cooling. Procure.ae supplies the OverView KVD-5521C across the UAE.
Sense X automatic color and brightness calibration keeps the tiles of a video wall matched over time. The panel uses in-plane technology with a direct LED backlight, a 178-degree horizontal and vertical viewing angle and a response time under 8 ms. The typical backlight lifetime is 50,000 hours, and the display carries temperature sensors. It is rated for 0 to 40 °C operation and 20% to 80% humidity, non-condensing.
The KVD-5521C suits entry-level and mid-range video walls that need 24/7 operation. Its inputs are two DisplayPort 1.2 and two HDMI 2.0, with one DisplayPort 1.2 output and a Full HD 1920 x 1080 panel. It uses a VESA 600 x 400 mm mount. Compared with the KVD-5521D, it draws 190 W at 500 nit native, against 160 W typical for the KVD-5521D, and both share the 3.5 mm UNB bezel generation.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits (typical)
Type
LCD Video Wall Display
- Full HD panel
- Automatic calibration
- Narrow bezel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD panel
1920 x 1080 resolution at 16:9 with a direct LED backlight.
02
Automatic calibration
Sense X keeps color and brightness balanced across the wall.
03
Narrow bezel
UNB generation with a 3.5 mm (0.14-inch) bezel width.
04
Wide viewing angle
178 degrees horizontal and vertical.
05
Fanless 24/7 operation
Fanless cooling and a 24/7 operating rating.
06
Connectivity
Two DisplayPort 1.2 and two HDMI 2.0 inputs, plus one Ethernet port.
07
VESA mounting
A 600 x 400 mm mounting pattern.
Specifications
26 specificationsGeneral
Key FeaturesFanless cooling, Sense X automatic calibration, temperature sensors, 3.5 mm UNB bezel, 24/7 operation, HDCP 2.2
ModelOverView KVD-5521C
TypeLCD Video Wall Display
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size3.5 mm (UNB generation)
Brightness500 nits (typical)
Color Depth8-bit
Color Temperature10,000 K native white point (typical)
Contrast Ratio1,200:1 (typical)
Lamp Life50,000 hours (backlight, typical)
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time< 8 ms
Screen Size55 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle24/7
Storage Conditions-20 to 60 °C; 10% to 80% RH, non-condensing
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsDisplayPort 1.2 × 2 in, × 1 out; HDMI 2.0 × 2; Ethernet × 1; USB × 1 (power only)
Power
Power Consumption190 W (500 nit native)
Physical
Dimensions1213.5 x 684.3 x 122.9 mm
Operating Humidity20% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight27.55 kg
Downloads
Manufacturer documents for the Barco OverView 55-inch LCD Video Wall Display – KVD-5521C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Barco OverView KVD-5521C built for 24/7 use?
Yes. The manufacturer rates it for 24/7 operation, with fanless cooling, a 0 to 40 °C operating temperature and a typical backlight lifetime of 50,000 hours. Operational humidity is 20% to 80%, non-condensing.
What bezel and mounting does the KVD-5521C use?
The KVD-5521C uses the UNB generation with a 3.5 mm (0.14-inch) bezel width and a 600 x 400 mm VESA mounting pattern. The active screen diagonal is 55 inches (1397 mm), and the display weighs 27.55 kg.
Is the KVD-5521C a 4K display?
No. The panel is Full HD at 1920 x 1080 pixels. Its DisplayPort 1.2 and HDMI 2.0 inputs carry the signal, and the manufacturer says DisplayPort 1.2 cables must be used when the cable length exceeds 3 m (10 feet).
Does the KVD-5521C support HDCP?
Yes. The manufacturer lists HDCP 2.2 support, so protected content from HDCP-compliant sources can be shown. The display has two DisplayPort 1.2 inputs, two HDMI 2.0 inputs and one Ethernet port for network connection.
How does the KVD-5521C differ from the KVD-5521D?
The two models share a 55-inch Full HD panel, 500 nit typical brightness, 1,200:1 typical contrast and the 3.5 mm UNB bezel. The KVD-5521C draws 190 W at 500 nit native, while the KVD-5521D is listed at 160 W typical.
Can I buy the OverView KVD-5521C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
