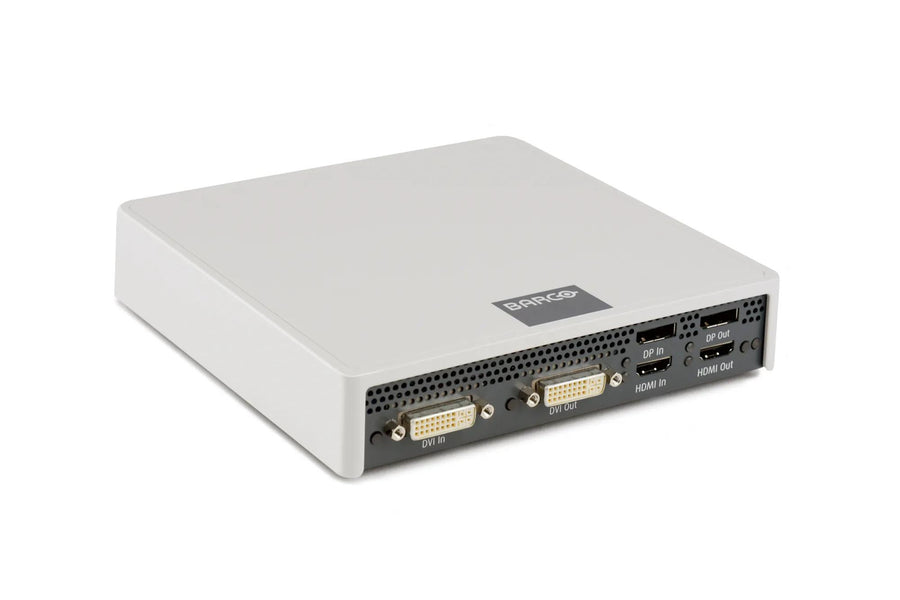

Barco NGS-D320 FLEX Pro Networked Video Encoder – NGS-D320 FLEX Pro
The Barco NGS-D320 FLEX Pro is a networked H.264 and V2D video encoder with integrated keyboard and mouse control and a redundant network port. It is validated for Barco TransForm N 3.3 or higher and runs at up to 4096 x 2160 resolution. Procure.ae supplies the NGS-D320 FLEX Pro in the UAE.
The NGS-D320 FLEX Pro can be configured at runtime as an encoder for DVI, HDMI and DisplayPort content, with or without audio and USB keyboard and mouse. It supports two streaming protocols, H.264 at 384 kbps to 24 Mbps and V2D at 25 to 200 Mbps, over one or two streaming channels. The manufacturer describes a dual-channel image processing engine that preserves fine detail such as spreadsheets and single-pixel line diagrams.
The device starts streaming automatically when a valid input signal is connected, and its web interface discovery page lists the other devices on the network. It is validated for Barco TransForm N 3.3 or higher and suits application sharing, simulation and training setups where keyboard and mouse control must sit with the encoded source. Its redundant 1 Gb Ethernet copper port and optional VESA or 1U rack mounting suit mission-critical installations.
Resolution
Up to 4096 x 2160 (24–30 Hz); up to...
Type
Networked Video Encoder
Weight
1 kg (2.20 lb)
- Runtime encoder configuration
- Dual streaming protocols
- Automatic streaming
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Runtime encoder configuration
Set as an encoder for DVI, HDMI or DisplayPort content.
02
Dual streaming protocols
H.264 and V2D over one or two streaming channels.
03
Automatic streaming
Starts streaming when a valid input signal is connected.
04
Integrated keyboard and mouse
Keyboard and mouse control in a single unit.
05
Redundant network port
Redundant 1 Gb Ethernet copper on RJ45.
06
TransForm N validation
Validated for Barco TransForm N 3.3 or higher.
07
Dual-channel processing
Image processing engine for fine detail and graphics.
Specifications
19 specificationsGeneral
CompatibilityBarco TransForm N 3.3 or higher
Key FeaturesH.264 and V2D streaming, automatic streaming on valid input, integrated keyboard and mouse control, redundant network port, runtime encoder configuration
ModelNGS-D320 FLEX Pro
TypeNetworked Video Encoder
Display
ResolutionUp to 4096 x 2160 (24–30 Hz); up to 2560 x 1600 (24–60 Hz)
Performance
BandwidthH.264 384 kbps–24 Mbps; V2D 25–200 Mbps
Storage Conditions-20 to 70 °C
Audio
AudioUncompressed; line in/out, mono mic in and stereo headphones out
Connectivity
Ethernet2 × 1 GbE full duplex; redundant 1 Gb Ethernet copper on RJ45
Input Voltage100–240 V AC (60 W external power supply)
PortsInputs: Dual Link DVI, DisplayPort 1.1a, HDMI 1.4; Outputs: Dual Link DVI, DisplayPort 1.2, HDMI 1.4; USB × 3 Type A, Micro-B
ProtocolsUnicast, multicast (IGMP v3), RTP, RTSP
USB Ports3 × Type A, 1 × Micro-B
Power
Power Consumption35 W (typical); 48 W (maximum)
Physical
Dimensions170 x 38 x 170 mm
MountingOptional VESA adapter plate or 1U rack mount for 2 devices
Operating Temperature0 to 40 °C
Weight1 kg (2.20 lb)
Compliance
CertificationsCE, FCC Part 15 Class A, ICES-003, UL/cUL, EN/IEC 60950-1 (CB report)
Downloads
Manufacturer documents for the Barco NGS-D320 FLEX Pro Networked Video Encoder – NGS-D320 FLEX Pro — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco NGS-D320 FLEX Pro?
The NGS-D320 FLEX Pro is a networked video encoder that streams DVI, HDMI and DisplayPort content using H.264 or V2D. It can be configured at runtime as an encoder, over one or two streaming channels, with integrated keyboard and mouse control.
Is the NGS-D320 FLEX Pro compatible with Barco TransForm N?
Yes. The manufacturer states the device is validated to work with Barco TransForm N 3.3 or higher. Procure.ae can confirm the TransForm N version on your site before ordering, so the encoder is set up correctly.
Does the NGS-D320 FLEX Pro have redundant networking?
Yes. The manufacturer lists redundant 1 Gb Ethernet copper on its RJ45 network port, along with two 1 GbE full-duplex Ethernet connections. This supports a network design with a redundant copper connection.
Does the NGS-D320 FLEX Pro support keyboard and mouse control?
Yes. The manufacturer lists remote keyboard and mouse support with a native keymap. The integrated keyboard and mouse control suits application sharing, simulation and training setups, with keyboard and mouse control built into the same unit.
