BarcoVideo WallsSKU NGS-D320 FLEX

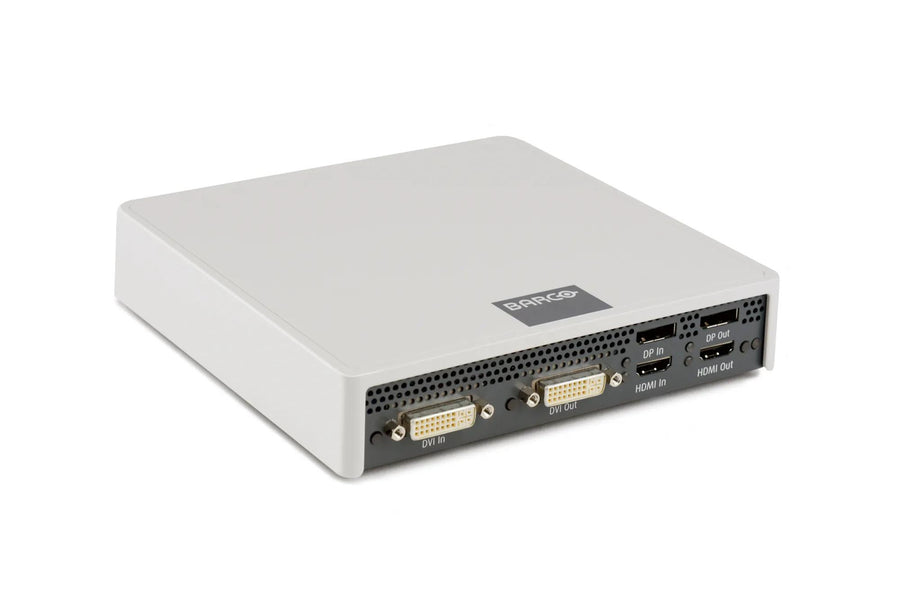

Barco NGS-D320 FLEX Networked Video Encoder – NGS-D320 FLEX
The Barco NGS-D320 FLEX is a networked video encoder that streams DVI, DisplayPort and HDMI sources over the network using H.264 or V2D. It supports resolutions up to 4096 x 2160, remote keyboard and mouse, and flexible loop-through. Procure.ae supplies the NGS-D320 FLEX in the UAE.
The NGS-D320 FLEX accepts Dual Link DVI, DisplayPort 1.1a and HDMI 1.4 inputs and provides matching outputs with flexible loop-through. It streams video using H.264 at 384 kbps to 12 Mbps or V2D at 25 to 100 Mbps, and it handles graphics from 640 x 480 up to 2560 x 1600 at 24 to 60 Hz and 4096 x 2160 at 24 to 30 Hz. Audio is 16-bit, 48 kHz stereo, and the manufacturer supports remote keyboard and mouse with a native keymap.
The encoder fits networked TransForm N and Barco CTRL systems that send shared computer or screen content to video walls. It uses unicast or multicast (IGMP v3) with RTP and RTSP, plus DNS and NTP, and it has two 1 GbE full-duplex Ethernet connections. It mounts on an optional VESA adapter plate or a 1U rack for two devices, which suits equipment racks.
Resolution
Up to 4096 x 2160 (24–30 Hz); up to...
Type
Networked Video Encoder
Weight
1 kg (2.20 lb)
- H.264 and V2D streaming
- High-resolution graphics
- Flexible loop-through
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
H.264 and V2D streaming
Two streaming formats for networked video.
02
High-resolution graphics
Up to 4096 x 2160 at 24–30 Hz and 2560 x 1600 at 24–60 Hz.
03
Flexible loop-through
Flexible loop-through on the video inputs and outputs.
04
Remote keyboard and mouse
Supported with a native keymap.
05
Dual Ethernet
Two 1 GbE full-duplex Ethernet connections.
06
Standard protocols
Unicast, multicast (IGMP v3), RTP, RTSP, DNS and NTP.
07
Compact mounting
Optional VESA adapter plate or 1U rack mount for two devices.
Specifications
18 specificationsGeneral
Key FeaturesH.264 and V2D streaming, flexible loop-through, remote keyboard and mouse, 16-bit 48 kHz stereo audio, dual Ethernet
ModelNGS-D320 FLEX
TypeNetworked Video Encoder
Display
ResolutionUp to 4096 x 2160 (24–30 Hz); up to 2560 x 1600 (24–60 Hz)
Performance
BandwidthH.264 384 kbps–12 Mbps; V2D 25–100 Mbps
Storage Conditions-20 to 70 °C
Audio
Audio16-bit 48 kHz stereo; line in/out, mono mic in and stereo headphones out
Connectivity
Ethernet2 × 1 GbE full duplex
Input Voltage100–240 V AC (60 W external power supply)
PortsInputs: Dual Link DVI, DisplayPort 1.1a, HDMI 1.4; Outputs: Dual Link DVI, DisplayPort 1.2, HDMI 1.4; USB × 3 Type A, Micro-B
ProtocolsUnicast, multicast (IGMP v3), RTP, RTSP, DNS, NTP
USB Ports3 × Type A, 1 × Micro-B
Power
Power Consumption35 W (typical); 48 W (maximum)
Physical
Dimensions170 x 38 x 170 mm
MountingOptional VESA adapter plate or 1U rack mount for 2 devices
Operating Temperature0 to 40 °C
Weight1 kg (2.20 lb)
Compliance
CertificationsCE, FCC Part 15 Class A, ICES-003, UL/cUL, EN/IEC 60950-1 (CB report)
Downloads
Manufacturer documents for the Barco NGS-D320 FLEX Networked Video Encoder – NGS-D320 FLEX — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Barco NGS-D320 FLEX?
The NGS-D320 FLEX is a networked video encoder from the Barco TransForm N and CTRL range. It takes DVI, DisplayPort or HDMI sources and streams them over the network using H.264 or V2D.
Does the NGS-D320 FLEX support remote keyboard and mouse?
Yes. The manufacturer lists remote keyboard and mouse support with a native keymap. This lets a user at the remote end control the connected source, which suits application sharing and training setups.
What is the maximum resolution of the NGS-D320 FLEX?
The manufacturer lists graphics up to 4096 x 2160 at 24–30 Hz, and up to 2560 x 1600 at 24–60 Hz. The lowest listed setting is 640 x 480. The maximum input bandwidth is listed at 330 MHz.
Which protocols does the NGS-D320 FLEX support?
It supports unicast and multicast (IGMP v3), RTP, RTSP, DNS and NTP. Video is carried as H.264 or V2D, so the encoder suits networked video distribution across a standard IP network.
