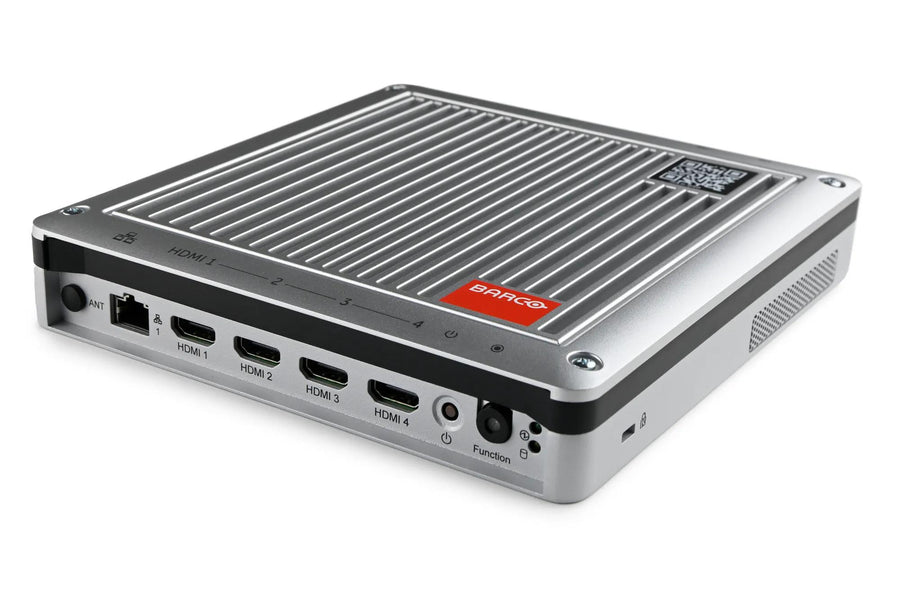

Barco CTRL Service Node – SAS-050

The Barco SAS-050 is the service node for Barco CTRL networked visualization systems. It manages all hardware in the system, orchestrates collaboration and information sharing between displays and operator workstations, and runs the Barco CTRL software. Procure.ae supplies the SAS-050 across the UAE, with delivery and installation.

The SAS-050 delivers the core functionality of the Barco CTRL networked visualization system. It manages all hardware and orchestrates the collaboration and visualization of information shared between displays and operator workstations. Its two 1Gb/s Ethernet ports run with active failover, and it provides two USB 3.0 and two USB 2.0 Type A ports with on-screen display (OSD) support. It draws 25 W typical and 55 W maximum.

The SAS-050 manages the security features of the Barco CTRL platform, so it is a central component of the system's cybersecurity. It handles collaboration and sharing of information between the displays and workstations in the system. The 180 x 28 x 190 mm unit weighs 1.03 kg and operates from 0 to 40 °C, with humidity up to 80% non-condensing. For larger Barco CTRL deployments, the SAS-500 manages more devices.
