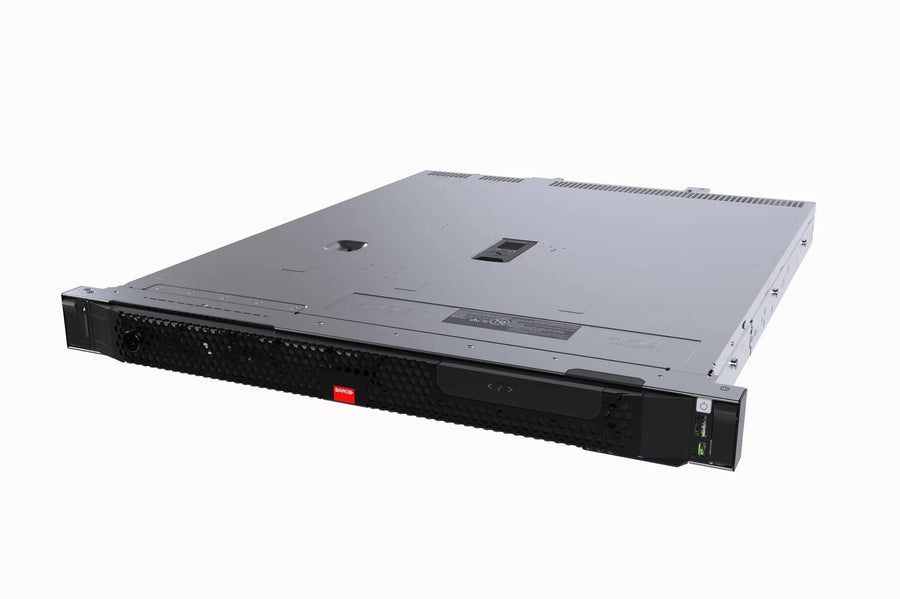

Barco CTRL Service Node for Large Deployments – SAS-500

The Barco SAS-500 is a 1U rackmount service node for large Barco CTRL networked visualization deployments. It manages the whole system, including its cybersecurity, and handles collaboration and sharing between displays and operator workstations. It has redundant 600 W power supplies and two 960 GB SSDs in RAID 1. Procure.ae supplies the SAS-500 across the UAE.

The SAS-500 is the service node for Barco CTRL, delivering the core functionality of the networked visualization system. It can manage more devices than the SAS-050, which suits large-scale Barco CTRL deployments. It orchestrates the collaboration and visualization of information shared between displays and operator workstations, and it runs the Barco CTRL software. Its network has two 1Gb/s Ethernet ports, with redundant 600 W power supplies and RAID 1 SSD storage.

The SAS-500 manages the security features of the Barco CTRL platform and is a central component of the system's cybersecurity. It mounts in a 19-inch server rack in 1U. Its two 600 W power supplies and RAID 1 storage on 2 x 960 GB SSDs provide redundancy. Maximum power draw is 188.8 W, falling to 72.5 W at idle, with an operating range of 10 to 35 °C.
