BarcoMeeting Room SolutionsSKU ClickShare X-Display Plus 65
Barco ClickShare X-Display Plus 65-inch Display – ClickShare X-Display Plus 65

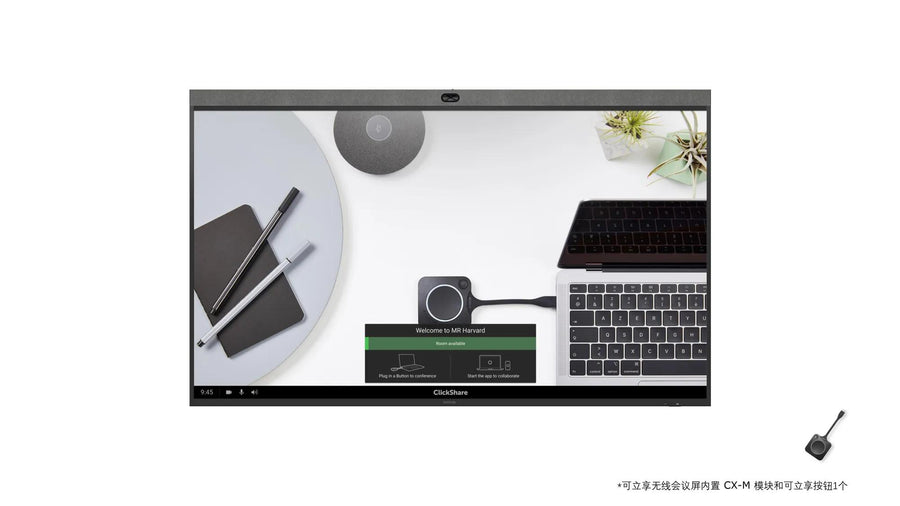

The Barco ClickShare X-Display Plus 65 is a 65-inch all-in-one meeting room display with a 4K UHD panel, a 4K 50 MP camera and a 16-microphone array. It adds the ClickShare App, AirPlay, Google Cast and Miracast to the X-Display design, for hybrid meeting rooms. Procure.ae supplies it across the UAE with quotes, delivery and installation.
The X-Display Plus 65 combines a 65-inch 4K UHD panel (3840 x 2160) with 400 nits typical brightness, 94% P3 colour gamut and a D-LED backlight. Its 50 MP camera has a 99° field of view, 5x digital zoom, Speaker framing and Group framing for up to 8 people. The 16 beamforming MEMS microphones pick up sound up to 12 metres away across 180°, and the 2.1 speaker system outputs 2 x 15 W plus 20 W.
The Plus model adds the ClickShare App for desktop and mobile, native AirPlay, Google Cast and Miracast support, and switching between MTR and BYOM modes. The OPS module (CX-M) is included, and the manufacturer lists 4K UHD output at 30 Hz through HDMI 1.4b or USB-C DisplayPort 1.2. The manufacturer lists a 1-year standard warranty, extendable to 5 years with SmartCare registration.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Type
All-in-One Meeting Room Display
- 4K UHD display
- 50 MP 4K camera
- 16-microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
65-inch panel at 3840 x 2160 with 400 nits typical brightness.
02
50 MP 4K camera
99° field of view, 5x digital zoom and Speaker framing.
03
16-microphone array
Beamforming MEMS microphones with 12 m pickup across 180°.
04
2.1 speaker system
Five speaker units with 2 x 15 W + 20 W output.
05
Wireless sharing
ClickShare App for desktop and mobile, with Wi-Fi 802.11 a/g/n/ac.
06
Native casting
AirPlay, Google Cast and Miracast support.
07
MTR and BYOM modes
Switches between meeting-room and bring-your-own-meeting modes.
08
Remote management
Management and reporting features for IT teams.
Specifications
36 specificationsGeneral
Key FeaturesClickShare App sharing, AirPlay, Google Cast and Miracast, MTR and BYOM modes, Local view, Remote management and reporting
ModelClickShare X-Display Plus 65
TypeAll-in-One Meeting Room Display
What's in the BoxPower cord, remote control, wall-mounted bracket, storage box, USB-C cable
Display
BacklightD-LED
Brightness400 nits (typical)
Camera4K 50 MP camera, 99° FOV, 5x digital zoom, SONY sensor
Color Gamut94% P3 (typical)
Contrast Ratio4,000:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Performance
Storage Conditions-20 to 60 °C, 10% to 90% RH
Audio
Audio OutSPDIF × 1
Frequency Response60 Hz to 20 kHz
Microphone16 beamforming MEMS microphones, 12 m pickup, 180° angle
Speaker Configuration2.1 channel stereo, 5 speaker units
Speaker Output2 x 15 W + 20 W
Connectivity
ConnectivityEthernet LAN 1 Gbps, USB-C 3.0 (front), OPS 80-pin, LAN and Wi-Fi network connection
EthernetRJ45 (1 Gbps) × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot, CX-M module included
Outputs4K UHD (3840 x 2160) at 30 Hz via HDMI 1.4b (OPS 80-pin) or USB-C DisplayPort 1.2
PortsHDMI In × 2 (HDMI 2.0), HDMI Out × 1, USB-C × 2 (front and board), USB-A 3.0 × 2, USB-B 2.0 × 1, USB-A 2.0 × 1 (X-Display upgrade only)
ProtocolsAirPlay, Google Cast, Miracast, ClickShare App (desktop and mobile)
Serial PortRS232 (DB9) × 1
Wi-FiIEEE 802.11 a/g/n/ac, 2.4 GHz and 5 GHz
Power
Power ConsumptionUnder 180 W (maximum operating)
Standby PowerUnder 0.5 W
Physical
Dimensions1465.1 x 912 x 77.7 mm (W x H x D)
MountingWall-mounted bracket included, floor stand optional
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Weight30.19 kg net, 35.185 kg gross
Compliance
CertificationsSRRC, CE
Warranty1 year standard; 5 years with SmartCare registration
Downloads
Manufacturer documents for the Barco ClickShare X-Display Plus 65-inch Display – ClickShare X-Display Plus 65 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ClickShare X-Display Plus 65?
It is a 65-inch all-in-one meeting room display from Barco with a built-in 4K camera, a 16-microphone array and a 2.1 speaker system. It adds ClickShare App sharing, native casting and MTR and BYOM mode switching to the X-Display design.
Does the ClickShare X-Display Plus 65 support AirPlay and Google Cast?
Yes. The manufacturer lists AirPlay, Google Cast and Miracast as native protocols, alongside the ClickShare App for desktop and mobile. Wireless transmission uses IEEE 802.11 a/g/n/ac on 2.4 GHz and 5 GHz.
Can the ClickShare X-Display Plus 65 be managed remotely?
Yes. The manufacturer lists management and reporting as supported. Procure.ae can confirm the management tools available for your IT setup. The unit connects over LAN or Wi-Fi.
Does the ClickShare X-Display Plus 65 support 4K video output?
Yes. The manufacturer lists 4K UHD at 30 Hz over HDMI 1.4b through the OPS 80-pin connector, or over USB-C DisplayPort 1.2. The unit also has a front USB-C 3.0 port and two RJ45 1 Gbps Ethernet ports.
