BarcoMeeting Room SolutionsSKU ClickShare USB-C Input converter

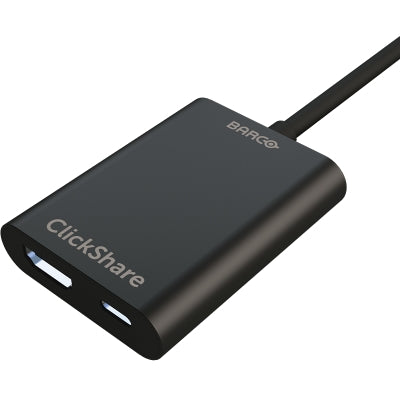

Barco ClickShare USB-C Input Converter
The Barco ClickShare USB-C Input converter takes an HDMI 2.0 input and a USB 3.2 Gen 1 (5 Gbps) input and outputs USB-C with DisplayPort 1.2. It weighs 100 g and measures 30 x 60 x 180 mm (W x H x D), for AV teams adapting source connections. Procure.ae supplies it across the UAE.
The converter accepts an HDMI 2.0 input and a USB 3.2 Gen 1 input at 5 Gbps, and outputs a USB-C connection carrying DisplayPort 1.2. The manufacturer's specifications list an operating range of -10 °C to 60 °C and a storage range of -10 °C to 60 °C. It weighs 100 g and measures 30 x 60 x 180 mm (W x H x D).
Use it where a USB-C DisplayPort 1.2 input is needed and the source provides HDMI 2.0 with USB 3.2 Gen 1. The manufacturer's specifications do not state the maximum resolution or the USB-C device types for this converter, so confirm them with Procure.ae before ordering.
Type
USB-C Input Converter
Weight
100 g
- HDMI 2.0 input
- USB 3.2 Gen 1 input
- USB-C DisplayPort output
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
HDMI 2.0 input
Accepts HDMI 2.0 as the video input.
02
USB 3.2 Gen 1 input
Provides a USB 3.2 Gen 1 input at 5 Gbps.
03
USB-C DisplayPort output
Outputs DisplayPort 1.2 over USB-C.
04
Compact size
30 x 60 x 180 mm and 100 g.
Specifications
9 specificationsGeneral
Key FeaturesHDMI 2.0 input, USB 3.2 Gen 1 input (5 Gbps), USB-C DisplayPort 1.2 output
ModelClickShare USB-C Input converter
TypeUSB-C Input Converter
Performance
Storage Conditions-10 to 60 °C
Connectivity
InputsHDMI 2.0, USB 3.2 Gen 1 (5 Gbps)
OutputsUSB-C DisplayPort 1.2
Physical
Dimensions30 x 60 x 180 mm (W x H x D)
Operating Temperature-10 to 60 °C
Weight100 g
Downloads
Manufacturer documents for the Barco ClickShare USB-C Input Converter — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What inputs and outputs does the converter have?
The manufacturer lists HDMI 2.0 and USB 3.2 Gen 1 (5 Gbps) as inputs, and USB-C with DisplayPort 1.2 as the output. The converter measures 30 x 60 x 180 mm and weighs 100 g, so allow for its footprint when planning the connection.
What is the operating temperature range?
The manufacturer lists operation from -10 °C to 60 °C and storage from -10 °C to 60 °C. Check this range against the room or rack location before installation.
Does the converter support 4K?
The manufacturer's specifications do not state a maximum resolution for this converter. Procure.ae can confirm the supported formats before you order. The output is USB-C carrying DisplayPort 1.2, so confirm that the destination device accepts that signal before ordering.
Can I buy the ClickShare USB-C Input converter in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
