BarcoMeeting Room SolutionsSKU ClickShare Hub Pro + Sennheiser TeamConnect Bar M room system

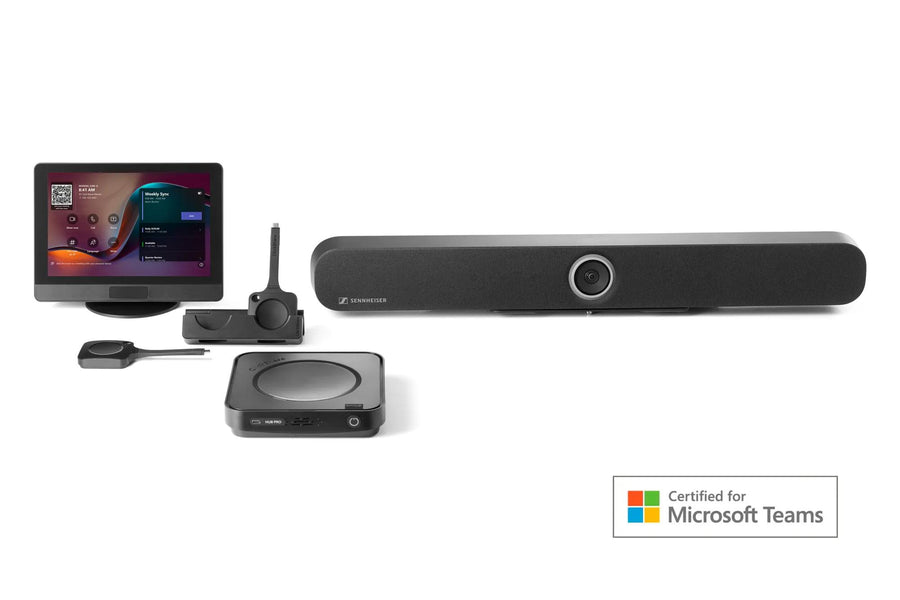

Barco ClickShare Hub Pro Teams Rooms Kit – Hub Pro + Sennheiser TeamConnect Bar M
The Barco ClickShare Hub Pro with Sennheiser TeamConnect Bar M is a certified Microsoft Teams Rooms kit for medium meeting rooms. It pairs wireless ClickShare sharing with 4K video output, autoframing camera, four beamforming microphones and two speakers. Procure.ae, an authorised reseller, supplies this Teams Rooms bundle across the UAE with delivery and installation.
The bundle supports 4K sharing, with 4K UHD (3840 x 2160) video input and dual screen output: HDMI-1 at 5120 x 2160 (UW5K) and HDMI-2 at 3840 x 2160 (4K UHD), both at 30 Hz. The camera provides person tiling and autoframing, while four Sennheiser beamforming microphones handle audio, with extension microphones available, and two speakers provide playback. Wireless sharing runs over IEEE 802.11 a/b/g/n/ac/ax/be on 2.4 GHz, 5 GHz and 6 GHz bands, with Bluetooth 5.3 (IEEE 802.15.1).
The kit suits Microsoft Teams Rooms deployments that need one certified system for medium rooms. The hub runs on Android (MDEP), requires a Microsoft Teams Rooms license and is managed through XMS Cloud over LAN. The hub uses an external USB-C power supply rated 100 W (PD3.0) or 180 W (PD3.1 EPR). A Kensington lock slot and FCC/CE certifications are listed in the specifications.
Resolution
5120 x 2160 (UW5K) output, 3840 x 2...
Brightness
300 nits
Type
Microsoft Teams Rooms Kit
Weight
720 g (hub)
- Certified Teams Rooms kit
- 4K wireless sharing
- Dual screen support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Certified Teams Rooms kit
Microsoft Teams Rooms solution for medium meeting rooms, with a Teams Rooms license required.
02
4K wireless sharing
4K UHD video input with ClickShare desktop sharing and up to 5120 x 2160 output at 30 Hz.
03
Dual screen support
Two HDMI 2.0 outputs
04
Autoframing camera
Person tiling and autoframing keep participants in view during meetings.
05
Beamforming microphones
Four Sennheiser beamforming microphones, with extension microphones available.
06
Touch control panel
10.1-inch projected capacitive touchscreen with 4-point multi-touch at 1280 x 800.
07
Wireless connectivity
Wi-Fi 802.11 a/b/g/n/ac/ax/be on 2.4, 5 and 6 GHz, with Bluetooth 5.3.
08
Remote management
XMS Cloud reporting over LAN, Kensington lock and a 3-year standard warranty.
Specifications
24 specificationsGeneral
Key FeaturesCertified Teams Rooms kit, 4K sharing, dual screen output, autoframing camera, beamforming mics, touch panel, XMS Cloud management
ModelClickShare Hub Pro + Sennheiser TeamConnect Bar M room system
TypeMicrosoft Teams Rooms Kit
Display
Brightness300 nits
CameraPerson tiling and autoframing
Contrast Ratio1,000:1
Refresh Rate30 Hz (HDMI output and input)
Resolution5120 x 2160 (UW5K) output, 3840 x 2160 (4K UHD) input
Touchscreen10.1-inch PCAP, 4-point multi-touch, 1280 x 800
Performance
LicenseMicrosoft Teams Rooms license required
Operating SystemAndroid (MDEP)
Audio
Microphone4 Sennheiser beamforming microphones, extension mics optional
Speaker Configuration2 Sennheiser speakers
Connectivity
BluetoothBluetooth 5.3
ConnectivityWi-Fi, Bluetooth 5.3, 1 Gbit Ethernet, USB-C, USB-A, HDMI 2.0, DisplayPort over USB-C
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 out × 2, USB-C 2.0/3.0 × 3, USB-A 2.0/3.0 × 1, DisplayPort over USB-C × 2, Ethernet 1 Gbit × 1
Wi-Fi802.11 a/b/g/n/ac/ax/be, 2.4 GHz, 5 GHz and 6 GHz
Power
Power Consumption160 W (max)
Physical
Dimensions180 x 37 x 180 mm (hub)
Operating Temperature0 to 40 °C
Weight720 g (hub)
Compliance
CertificationsFCC, CE
Warranty3 years standard
Downloads
Manufacturer documents for the Barco ClickShare Hub Pro Teams Rooms Kit – Hub Pro + Sennheiser TeamConnect Bar M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ClickShare Hub Pro with Sennheiser TeamConnect Bar M need a Microsoft Teams Rooms license?
Yes. The manufacturer lists a Microsoft Teams Rooms license as required. The kit is a certified Microsoft Teams Rooms solution, and the hub runs on Android (MDEP) with XMS Cloud for remote management.
What room size is this bundle designed for?
The manufacturer positions this bundle for medium meeting rooms. The camera offers person tiling and autoframing, and the microphone array can be extended. The manufacturer's specifications do not state a maximum room size.
Can the bundle drive two displays at 4K?
Yes. It has two HDMI 2.0 outputs, HDMI-1 at 5120 x 2160 (UW5K) and HDMI-2 at 3840 x 2160 (4K UHD), both at 30 Hz, plus DisplayPort over USB-C output on the back panel.
Can I add more microphones to the bundle?
Yes. The manufacturer states the four beamforming microphones can be extended with additional microphones. Procure.ae can advise on the microphone layout for a specific room during the quote stage, including where extension microphones suit the table.
Does it support wireless sharing from laptops?
Yes. Participants share wirelessly with the ClickShare Desktop app over Wi-Fi 802.11 a/b/g/n/ac/ax/be on 2.4, 5 and 6 GHz bands, and Bluetooth 5.3 is included in the kit. The app is used to share from the presenter's own laptop during a meeting.
Can I buy the ClickShare Hub Pro with Sennheiser TeamConnect Bar M in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
