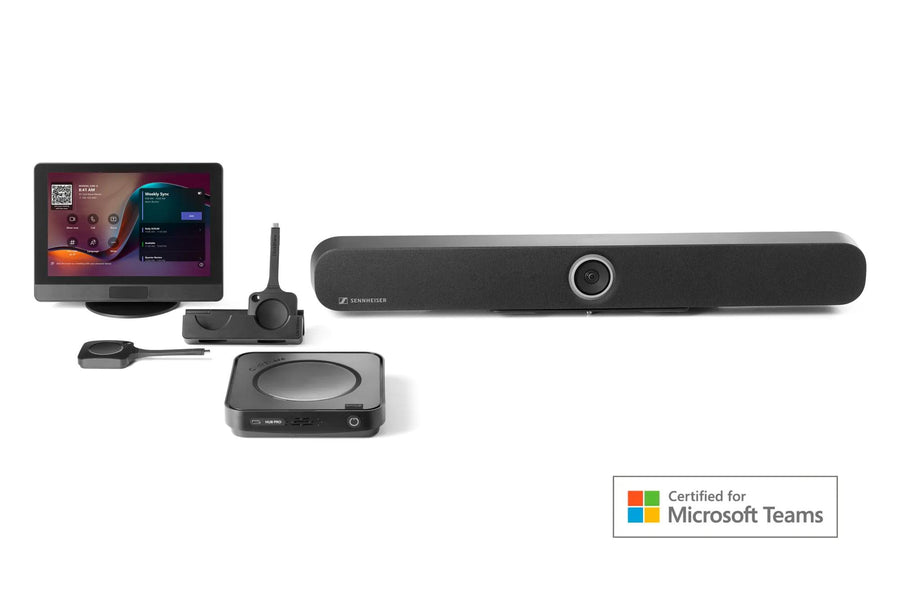

Barco ClickShare Hub Pro Teams Rooms Kit – Hub Pro + Sennheiser TeamConnect Bar M
The Barco ClickShare Hub Pro with Sennheiser TeamConnect Bar M is a certified Microsoft Teams Rooms kit for medium meeting rooms. It pairs wireless ClickShare sharing with 4K video output, autoframing camera, four beamforming microphones and two speakers. Procure.ae, an authorised reseller, supplies this Teams Rooms bundle across the UAE with delivery and installation.
The bundle supports 4K sharing, with 4K UHD (3840 x 2160) video input and dual screen output: HDMI-1 at 5120 x 2160 (UW5K) and HDMI-2 at 3840 x 2160 (4K UHD), both at 30 Hz. The camera provides person tiling and autoframing, while four Sennheiser beamforming microphones handle audio, with extension microphones available, and two speakers provide playback. Wireless sharing runs over IEEE 802.11 a/b/g/n/ac/ax/be on 2.4 GHz, 5 GHz and 6 GHz bands, with Bluetooth 5.3 (IEEE 802.15.1).
The kit suits Microsoft Teams Rooms deployments that need one certified system for medium rooms. The hub runs on Android (MDEP), requires a Microsoft Teams Rooms license and is managed through XMS Cloud over LAN. The hub uses an external USB-C power supply rated 100 W (PD3.0) or 180 W (PD3.1 EPR). A Kensington lock slot and FCC/CE certifications are listed in the specifications.
Key features
Specifications
| Key Features | Certified Teams Rooms kit, 4K sharing, dual screen output, autoframing camera, beamforming mics, touch panel, XMS Cloud management |
| Model | ClickShare Hub Pro + Sennheiser TeamConnect Bar M room system |
| Type | Microsoft Teams Rooms Kit |
| Brightness | 300 nits |
| Camera | Person tiling and autoframing |
| Contrast Ratio | 1,000:1 |
| Refresh Rate | 30 Hz (HDMI output and input) |
| Resolution | 5120 x 2160 (UW5K) output, 3840 x 2160 (4K UHD) input |
| Touchscreen | 10.1-inch PCAP, 4-point multi-touch, 1280 x 800 |
| License | Microsoft Teams Rooms license required |
| Operating System | Android (MDEP) |
| Microphone | 4 Sennheiser beamforming microphones, extension mics optional |
| Speaker Configuration | 2 Sennheiser speakers |
| Bluetooth | Bluetooth 5.3 |
| Connectivity | Wi-Fi, Bluetooth 5.3, 1 Gbit Ethernet, USB-C, USB-A, HDMI 2.0, DisplayPort over USB-C |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI 2.0 out × 2, USB-C 2.0/3.0 × 3, USB-A 2.0/3.0 × 1, DisplayPort over USB-C × 2, Ethernet 1 Gbit × 1 |
| Wi-Fi | 802.11 a/b/g/n/ac/ax/be, 2.4 GHz, 5 GHz and 6 GHz |
| Power Consumption | 160 W (max) |
| Dimensions | 180 x 37 x 180 mm (hub) |
| Operating Temperature | 0 to 40 °C |
| Weight | 720 g (hub) |
| Certifications | FCC, CE |
| Warranty | 3 years standard |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
