BarcoMeeting Room SolutionsSKU ClickShare X-Display Plus 86
Barco ClickShare 86-inch 4K Video Conferencing System – X-Display Plus 86

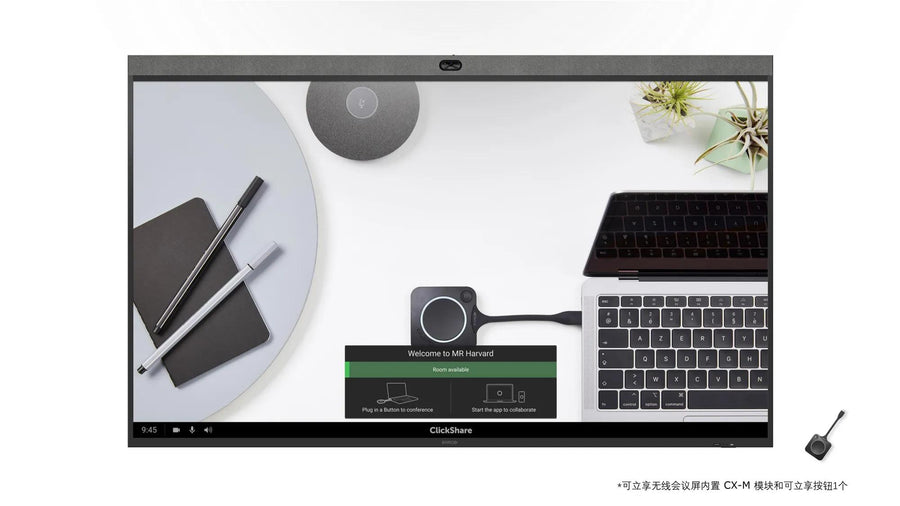

The Barco ClickShare X-Display Plus 86 is an 86-inch 4K UHD all-in-one video conferencing display for hybrid meeting rooms. It combines a 50-megapixel camera with speaker framing, a 16-microphone beamforming array and 2.1 speakers, plus wireless ClickShare sharing. Procure.ae, an authorised reseller, supplies it across the UAE with delivery and installation.
The ClickShare X-Display Plus 86 combines an 86-inch 4K UHD panel (3840 x 2160) with a 50-megapixel camera that captures 4K, 1080p and 720p video at 30 fps, with a 99° field of view and 5x digital zoom. Its 16 beamforming MEMS microphones pick up sound up to 12 metres away across a 180° angle, with echo cancellation, noise suppression for more than 300 noise types and automatic gain control. Speaker framing, intelligent tracking and composition mode for up to eight people keep participants in view, and the 2.1 speaker system outputs 2 x 15 W plus 20 W.
The display suits meeting rooms that need one device for video, audio, display and wireless sharing. It runs in MTR (Microsoft Teams Rooms) and BYOM modes, and the manufacturer states it is compatible with major cloud platforms and devices. ClickShare desktop and mobile apps, AirPlay, Google Cast and Miracast handle wireless sharing, and XMS Cloud gives IT teams remote management. A wall-mount bracket is included, and a floor stand is optional.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits (typical)
Type
Video Conferencing Display
- All-in-one design
- 4K 50 MP camera
- Speaker framing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
All-in-one design
Display, 4K camera, microphones and speakers in one unit with wireless ClickShare sharing.
02
4K 50 MP camera
Captures 4K, 1080p and 720p at 30 fps with a 99° field of view and 5x digital zoom.
03
Speaker framing
Intelligent tracking and panoramic speaker framing, with composition mode for up to 8 people.
04
16-microphone array
Beamforming MEMS microphones with 12-metre pickup range and 180° pickup angle.
05
Audio processing
Echo cancellation, noise suppression for more than 300 noise types, automatic gain control and dereverberation.
06
86-inch 4K UHD panel
3840 x 2160 resolution, 400 nits typical brightness, 1,200:1 contrast ratio and 94% P3 colour gamut typical.
07
Wireless sharing
ClickShare desktop and mobile apps, AirPlay, Google Cast and Miracast over 2.4 GHz and 5 GHz Wi-Fi.
08
Remote management
XMS Cloud reporting and control, 1 Gbps Ethernet, and HDMI, USB-C, RS232 and SPDIF ports.
Specifications
28 specificationsGeneral
Key FeaturesAll-in-one display, 4K 50 MP camera, 16-mic array, 2.1 speakers, wireless sharing, MTR and BYOM modes, XMS Cloud management
ModelClickShare X-Display Plus 86
TypeVideo Conferencing Display
What's in the BoxPower cord, remote control, storage box, USB-C cable, wall-mount bracket, CX-M OPS module
Display
BacklightD-LED
Brightness400 nits (typical)
Camera50 MP sensor, 4K, 1080p and 720p at 30 fps, 99° FOV, 5x digital zoom
Color Gamut94% P3 (typical)
Contrast Ratio1,200:1
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
TouchscreenYes
Audio
Microphone16 beamforming MEMS microphones, 12 m pickup, 180° pickup angle
Speaker Output2 x 15 W + 20 W (2.1 channel)
Connectivity
ConnectivityWi-Fi (2.4 GHz and 5 GHz), 1 Gbps Ethernet, AirPlay, Google Cast, Miracast
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out × 1, USB-C × 2, USB-A 3.0 × 2, USB-B 2.0 × 1, RJ45 × 2, RS232 × 1, SPDIF × 1
Wi-Fi802.11 a/g/n/ac, 2.4 GHz and 5 GHz
Power
Power Consumption320 W (max)
Standby Power0.5 W (max)
Physical
Dimensions1932 x 1175 x 82.5 mm
MountingWall-mount bracket included, floor stand optional
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Weight47 kg (net), 62.3 kg (gross)
Compliance
CertificationsCCC, CE, SRRC, China Energy Label 2, China RoHS
Warranty1 year standard, up to 5 years on registration via SmartCare
Downloads
Manufacturer documents for the Barco ClickShare 86-inch 4K Video Conferencing System – X-Display Plus 86 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the ClickShare X-Display Plus 86 support Microsoft Teams Rooms?
Yes. It runs in MTR (Microsoft Teams Rooms) mode and in BYOM mode, and switching between the two is supported. The manufacturer states it is compatible with major cloud platforms and devices.
What are the screen size and resolution of the X-Display Plus 86?
The display is 86 inches with 3840 x 2160 (4K UHD) resolution, 400 nits typical brightness, a 1,200:1 contrast ratio, a 60 Hz refresh rate and an anti-glare panel. It suits rooms where remote and in-room participants need the same clear picture.
What room size does the X-Display Plus 86 suit?
The manufacturer's specifications do not state a maximum room size. The microphone array picks up sound up to 12 metres away across a 180° angle, and the camera has a 99° field of view, so Procure.ae can confirm the fit for a specific room.
Can the X-Display Plus 86 be wall mounted, and is a floor stand included?
Yes, a wall-mount bracket is included. A floor stand is available as an optional accessory. Procure.ae can advise on mounting height, cable routing and installation across the UAE, including the floor stand option for rooms without a wall mount.
Does it integrate with other devices and platforms?
Yes. It supports third-party USB peripherals, AirPlay, Google Cast, Miracast and XMS Cloud remote management. It has HDMI In and Out, USB-C, USB-A, RJ45 Ethernet, RS232 and SPDIF ports for room integration.
Can I buy the ClickShare X-Display Plus 86 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
