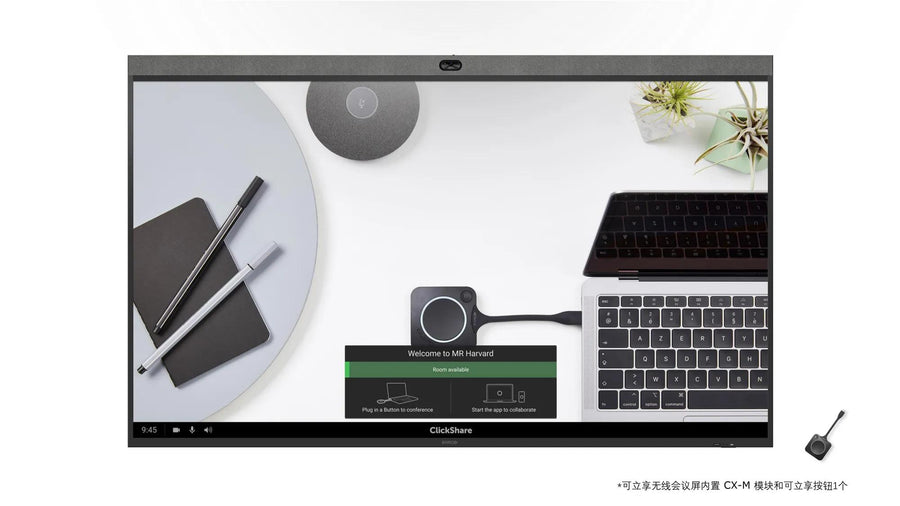

Barco ClickShare 86-inch 4K Video Conferencing System – X-Display Plus 86
The Barco ClickShare X-Display Plus 86 is an 86-inch 4K UHD all-in-one video conferencing display for hybrid meeting rooms. It combines a 50-megapixel camera with speaker framing, a 16-microphone beamforming array and 2.1 speakers, plus wireless ClickShare sharing. Procure.ae, an authorised reseller, supplies it across the UAE with delivery and installation.
The ClickShare X-Display Plus 86 combines an 86-inch 4K UHD panel (3840 x 2160) with a 50-megapixel camera that captures 4K, 1080p and 720p video at 30 fps, with a 99° field of view and 5x digital zoom. Its 16 beamforming MEMS microphones pick up sound up to 12 metres away across a 180° angle, with echo cancellation, noise suppression for more than 300 noise types and automatic gain control. Speaker framing, intelligent tracking and composition mode for up to eight people keep participants in view, and the 2.1 speaker system outputs 2 x 15 W plus 20 W.
The display suits meeting rooms that need one device for video, audio, display and wireless sharing. It runs in MTR (Microsoft Teams Rooms) and BYOM modes, and the manufacturer states it is compatible with major cloud platforms and devices. ClickShare desktop and mobile apps, AirPlay, Google Cast and Miracast handle wireless sharing, and XMS Cloud gives IT teams remote management. A wall-mount bracket is included, and a floor stand is optional.
Key features
Specifications
| Key Features | All-in-one display, 4K 50 MP camera, 16-mic array, 2.1 speakers, wireless sharing, MTR and BYOM modes, XMS Cloud management |
| Model | ClickShare X-Display Plus 86 |
| Type | Video Conferencing Display |
| What's in the Box | Power cord, remote control, storage box, USB-C cable, wall-mount bracket, CX-M OPS module |
| Backlight | D-LED |
| Brightness | 400 nits (typical) |
| Camera | 50 MP sensor, 4K, 1080p and 720p at 30 fps, 99° FOV, 5x digital zoom |
| Color Gamut | 94% P3 (typical) |
| Contrast Ratio | 1,200:1 |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Screen Size | 86 inch |
| Touchscreen | Yes |
| Microphone | 16 beamforming MEMS microphones, 12 m pickup, 180° pickup angle |
| Speaker Output | 2 x 15 W + 20 W (2.1 channel) |
| Connectivity | Wi-Fi (2.4 GHz and 5 GHz), 1 Gbps Ethernet, AirPlay, Google Cast, Miracast |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | HDMI In × 2, HDMI Out × 1, USB-C × 2, USB-A 3.0 × 2, USB-B 2.0 × 1, RJ45 × 2, RS232 × 1, SPDIF × 1 |
| Wi-Fi | 802.11 a/g/n/ac, 2.4 GHz and 5 GHz |
| Power Consumption | 320 W (max) |
| Standby Power | 0.5 W (max) |
| Dimensions | 1932 x 1175 x 82.5 mm |
| Mounting | Wall-mount bracket included, floor stand optional |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 40 °C |
| Weight | 47 kg (net), 62.3 kg (gross) |
| Certifications | CCC, CE, SRRC, China Energy Label 2, China RoHS |
| Warranty | 1 year standard, up to 5 years on registration via SmartCare |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
