YealinkMeeting Room SolutionsSKU RoomSensor

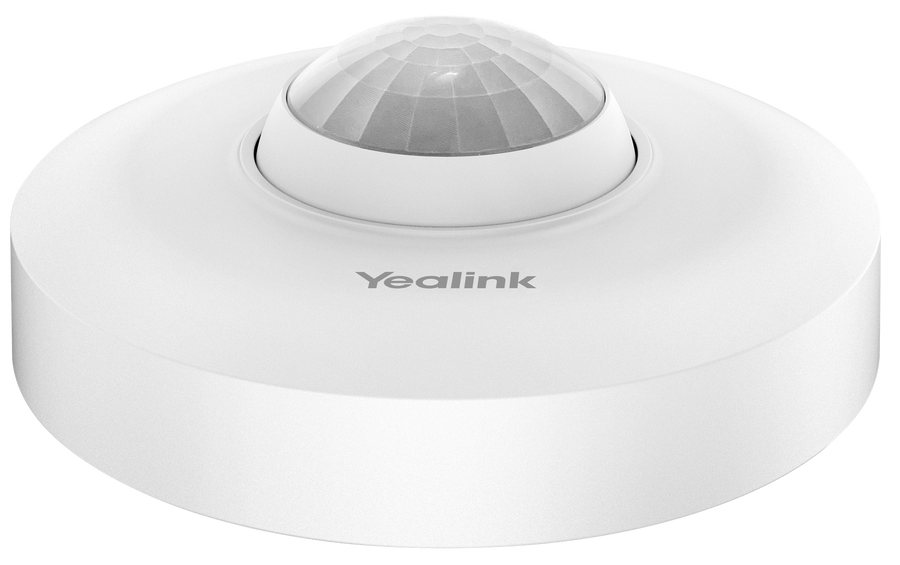

Yealink RoomSensor Room Occupancy Sensor
The Yealink RoomSensor is a passive infrared occupancy sensor for conference rooms, designed for professional video conference systems. It detects motion over a 120° angle, connects over Bluetooth BLE 5.2 and is rated for 4 years of service life. Procure.ae supplies the RoomSensor in the UAE.
The RoomSensor uses passive infrared detection with a 120° detection angle and an adjustable sensor angle of ±20°. At a standard 3 m (9.8 ft) mounting height, it covers a 6 m (19.7 ft) radius for major motion and a 3 m (9.8 ft) radius for minor motion. It measures temperature from -10 °C to 70 °C and humidity from 0 to 80% RH. It connects over Bluetooth BLE 5.2 at 2.4 GHz, with BLE mesh and up to four simultaneous connections.
The RoomSensor suits conference rooms, huddle spaces and meeting rooms where occupancy data is needed for professional video conference systems. It mounts on the ceiling or wall with a circular magnetic bracket and weighs 0.092 kg (0.203 lb). The white PC housing has an LED indicator and an IP20 rating for indoor installation. Procure.ae supplies the RoomSensor across the UAE with delivery and installation.
Type
Room Occupancy Sensor
Weight
0.092 kg
- PIR detection
- Coverage
- Environmental readings
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
PIR detection
120° detection angle with ±20° adjustable sensor angle.
02
Coverage
6 m (19.7 ft) radius for major motion at 3 m mounting height.
03
Environmental readings
Temperature -10 °C to 70 °C and 0 to 80% RH humidity.
04
Bluetooth BLE 5.2
2.4 GHz with BLE mesh and up to four simultaneous connections.
05
Battery
3 V CR123A lithium battery with 4 years of service life.
06
Mounting
Circular magnetic bracket for ceiling or wall mounting.
Specifications
16 specificationsGeneral
Key FeaturesPIR occupancy detection, 120° detection angle, temperature and humidity sensing, Bluetooth BLE 5.2 mesh, up to 4 simultaneous connections, 4-year battery life, magnetic circular bracket, IP20
ModelRoomSensor
TypeRoom Occupancy Sensor
Performance
Measurement RangeTemperature -10 to 70 °C; humidity 0 to 80% RH
Audio
Coverage Pattern120° PIR detection angle, ±20° adjustable sensor angle
Connectivity
BluetoothBluetooth BLE 5.2
Frequency Band2.4 GHz
Operating Range6 m radius (major motion) and 3 m radius (minor motion) at 3 m mounting height
Power
Battery3 V CR123A lithium, 1 x (4 years service life)
Physical
ColorWhite
DimensionsØ 95.3 x 36 mm
MaterialPC
MountingCeiling or wall, circular magnetic bracket
Operating Temperature0 to 40 °C
Weight0.092 kg
Compliance
IP RatingIP20
Downloads
Manufacturer documents for the Yealink RoomSensor Room Occupancy Sensor — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What does the Yealink RoomSensor detect?
It detects occupancy with passive infrared (PIR) technology, using a 120° detection angle that can be adjusted by ±20°. It also measures temperature from -10 °C to 70 °C and humidity from 0 to 80% RH, so it covers both presence and room conditions.
How far does the RoomSensor cover?
At a standard 3 m (9.8 ft) mounting height, it covers a 6 m (19.7 ft) radius for major motion and a 3 m (9.8 ft) radius for minor motion. Its 120° detection angle and ±20° adjustable sensor angle let you aim coverage at the part of the room you need to monitor.
Does the RoomSensor need a Wi-Fi network?
No Wi-Fi is listed in the manufacturer's specifications. The RoomSensor connects over Bluetooth BLE 5.2 at 2.4 GHz, with BLE mesh and up to four simultaneous connections. It runs on a 3 V CR123A lithium battery rated for 4 years of service life.
