YealinkMeeting Room SolutionsSKU MeetingBar A40
Yealink MeetingBar A40 Video Conferencing Bar – MeetingBar A40

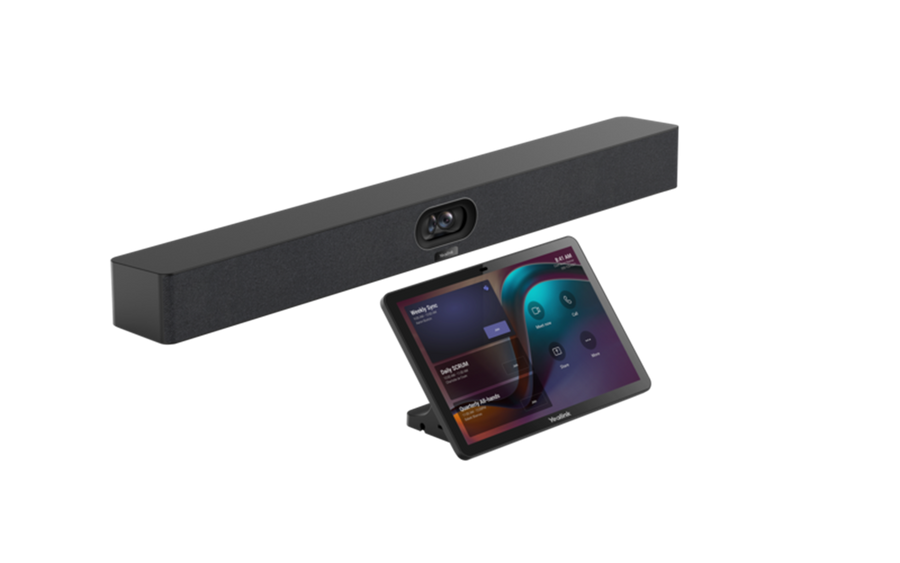

The Yealink MeetingBar A40 is an all-in-one video conferencing bar for small to medium meeting rooms. It has two tele cameras with a 120° DFOV and 4K UHD maximum resolution, and it supports two expansion microphones. Procure.ae supplies the Yealink MeetingBar A40 across the UAE, with delivery and installation.
The A40 uses two tele cameras with 120° diagonal and 110° horizontal fields of view, and each camera has a 48 MP sensor. The bar supports 4K UHD maximum resolution, with video output of 4K at 30 fps or 1080p at 60 fps. Its audio system provides full duplex operation, acoustic echo cancellation, automatic gain control and AI-enhanced noise suppression. It supports two expansion microphones, and frequency response runs from 100 Hz to 20 kHz.
The A40 suits small to medium meeting rooms that run Microsoft Teams Rooms on Android or Zoom Rooms appliances, as its model codes show. It supports H.323, SIP and H.239 or BFCP content sharing, and its general mode runs at up to 4K at 30 fps. The TV-clip mount is included, and a tabletop mount is sold separately. Procure.ae supplies the Yealink MeetingBar A40 across the UAE, including Dubai, Abu Dhabi and Sharjah.
Resolution
3840 x 2160 (4K UHD)
Type
Video Conferencing Bar
- Dual tele cameras
- 4K video
- Expansion microphones
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual tele cameras
Two tele cameras with 120° DFOV and 110° HFOV.
02
4K video
Maximum resolution of 3840 x 2160 at 30 fps, with 1080p at 60 fps output.
03
Expansion microphones
Supports two expansion microphones.
04
AI audio processing
Full duplex, AEC, AGC and AI-enhanced noise suppression.
05
Audio output
Rated 10 W + 10 W with 12 W + 12 W maximum power.
06
Privacy cover
Electric lens cap for the cameras.
07
Data encryption
AES-128 and AES-256 full disk encryption.
Specifications
26 specificationsGeneral
Key FeaturesTwo 48 MP tele cameras, 4K 30 fps video, Two expansion microphones supported, Full duplex AEC and AGC, AI-enhanced noise suppression, Electric lens cap, TV-clip mount included
ModelMeetingBar A40
TypeVideo Conferencing Bar
Display
Camera2 tele cameras, 120° DFOV, 110° HFOV, 54° VFOV
Resolution3840 x 2160 (4K UHD)
Performance
Bandwidth10 Mbps or more
Storage Conditions-30 to 70 °C
Audio
Audio CodecsG.722.1C, G.722.1, G.722, G.711 (PCMA/PCMU), G.729, ARES
Dynamic Range28 to 100 dB SPL
Frequency Response100 Hz to 20 kHz
Impedance4 ohms
Max SPL130 dB SPL (whole device), 100 dB SPL (individual microphone)
Power Output10 W + 10 W rated, 12 W + 12 W maximum
Sensitivity100 ± 3 dB @ 1 W, 0.1 m
Signal-to-Noise Ratio72 dB @ 1 kHz
THD< 5% at 10 W, 1 kHz
Connectivity
Conference CallingMicrosoft Teams, Zoom, RingCentral, H.323, SIP, General mode (BYOM)
ExpansionSupports 2 expansion microphones
Ports1x Ethernet (10/100/1000 Mbps)
ProtocolsH.323, SIP, H.239 (H.323) / BFCP (SIP), H.224/H.281 FECC
Physical
Dimensions650 x 62 x 80 mm
MountingTV-clip mount included; tabletop mount sold separately
Operating Humidity10% to 95% RH
Operating Temperature0 to 40 °C
Compliance
Security FeaturesFull disk encryption AES-128 and AES-256, Device attestation, Authenticated API access
Warranty2 years limited hardware
Downloads
Manufacturer documents for the Yealink MeetingBar A40 Video Conferencing Bar – MeetingBar A40 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What camera does the MeetingBar A40 have?
The MeetingBar A40 has two tele cameras with 120° DFOV, 110° HFOV and 54° VFOV. Each camera has a 48 MP sensor, and the maximum resolution is 3840 x 2160 at 30 fps.
Does the MeetingBar A40 support expansion microphones?
Yes. The A40 supports two expansion microphones, which helps extend audio pickup in larger rooms. The bar also includes full duplex, AEC, AGC and AI-enhanced noise suppression. This support is listed in the manufacturer's specifications for the A40.
Which platforms does the MeetingBar A40 support?
The A40 is listed for Microsoft Teams and Zoom, plus RingCentral, H.323, SIP and General mode (BYOM). Teams meetings run at 1080p 30 fps, with 4K 30 fps for local sharing.
Can the MeetingBar A40 be mounted on a TV or placed on a desk?
Yes. A TV-clip mount is included with the product. A tabletop mount is sold separately for desktop use. The included TV-clip mount attaches the bar to a TV. The bar measures 650 x 62 x 80 mm.
What bandwidth does the MeetingBar A40 need?
The A40 needs 10 Mbps or more of bandwidth. It has one 10/100/1000 Mbps Ethernet port, which suits standard office networks used for video conferencing. The bar is listed with that bandwidth requirement, so check your connection before installation.
Can I buy the MeetingBar A40 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
