YealinkMeeting Room SolutionsSKU PA20

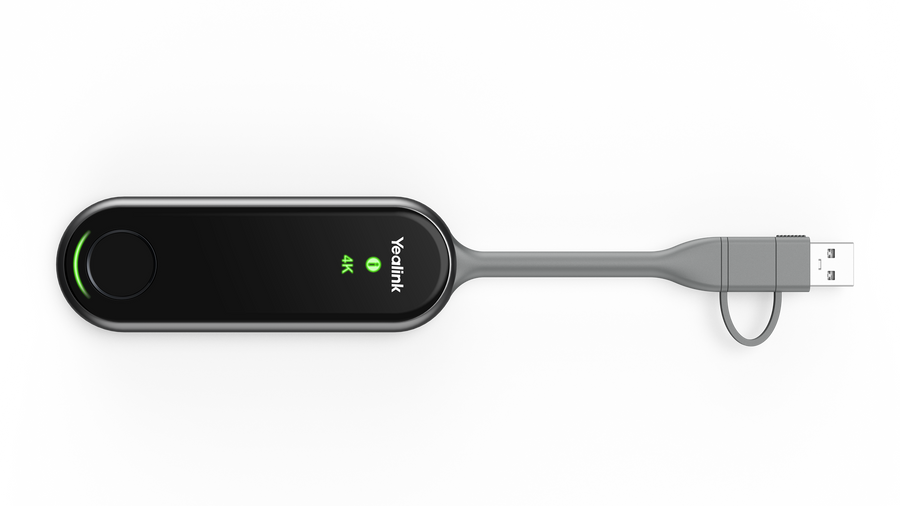

Yealink 4K Wireless Presentation System – PA20
The Yealink PA20 is a BYOD wireless presentation system for teams that present from their own laptops. It delivers 4K/30 fps hardware encoding over Wi-Fi 6 with no software or drivers, and it is compatible with USB Type-A and Type-C. Procure.ae supplies the Yealink PA20 across the UAE.
The PA20 supports 4K Ultra HD content sharing at up to 30 frames per second. Its hardware encoding works without software or drivers, so a presenter can plug in and present. The device is compatible with USB Type-A and Type-C, includes an embedded meeting assistant, and uses Wi-Fi 6 for quick setup. Its listed power consumption is 2.2 W typical from a 5 V, 600 mA input, and its operating range is -10 to 40 °C.
The PA20 suits meeting spaces where presenters bring their own laptops and want to share without installing software. It supports the 802.11 a/b/g/n/ac/ax wireless standards and WPA-PSK or WPA2-PSK security. Its listed size is 220 x 38 x 16 mm and it weighs 75 g. The manufacturer's specifications do not state mounting options or the supported operating systems for this model.
Resolution
3840 x 2160 (4K UHD) at 30 fps
Type
Wireless Presentation System
Weight
75 g
- 4K Ultra HD sharing
- Hardware encoding
- Plug-and-present use
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K Ultra HD sharing
Shares content at 4K resolution and up to 30 fps.
02
Hardware encoding
Provides 4K/30 FPS hardware encoding without software or drivers.
03
Plug-and-present use
Presenters plug in and present with no software installation.
04
Wi-Fi 6 setup
Uses Wi-Fi 6 (802.11ax) for quick setup.
05
Embedded meeting assistant
Features an embedded meeting assistant.
06
USB Type-A and Type-C
Compatible with USB Type-A and Type-C connections.
07
WPA2 security
Supports WPA-PSK and WPA2-PSK wireless security.
08
Low power draw
Consumes 2.2 W typical from a 5 V, 600 mA input.
Specifications
11 specificationsGeneral
Key Features4K/30 fps hardware encoding, no software or drivers needed, embedded meeting assistant, Wi-Fi 6 setup, WPA-PSK/WPA2-PSK security, USB Type-A and Type-C compatible, BYOD device
ModelPA20
TypeWireless Presentation System
Display
Resolution3840 x 2160 (4K UHD) at 30 fps
Connectivity
Wi-Fi802.11 a/b/g/n/ac/ax
Power
Power Consumption2.2 W (typical)
Power Source5 V, 600 mA
Physical
Dimensions220 x 38 x 16 mm
Operating Humidity0% to 90% RH, non-condensing
Operating Temperature-10 to 40 °C
Weight75 g
Downloads
Manufacturer documents for the Yealink 4K Wireless Presentation System – PA20 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the Yealink PA20 need software or drivers?
No. The manufacturer states that the PA20 provides 4K/30 FPS hardware encoding without the need for software or drivers. Presenters plug in and share directly, which keeps setup simple for BYOD meetings where people use their own laptops.
What resolution and frame rate does the PA20 support?
The PA20 decodes up to 4K at 30 frames per second, according to the manufacturer's specifications. That covers 4K Ultra HD content sharing, and the specifications do not list a higher frame rate for this model.
Which wireless standards and security does the PA20 use?
The PA20 supports 802.11 a/b/g/n/ac/ax, which includes Wi-Fi 6, and WPA-PSK or WPA2-PSK security. The manufacturer's specifications do not state the Wi-Fi bands supported, so confirm your network requirements with Procure.ae before installation.
Can the PA20 be wall mounted?
The manufacturer's specifications do not state a mounting option or VESA pattern for the PA20. Procure.ae can advise on mounting and installation for your room, with installation available across the UAE and the wider MEA.
