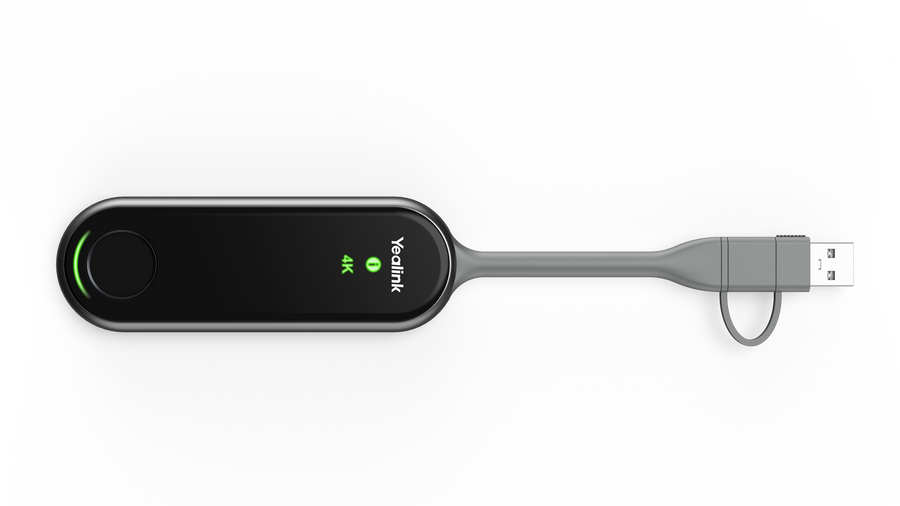

Yealink 4K Wireless Presentation System – PA20

The Yealink PA20 is a BYOD wireless presentation system for teams that present from their own laptops. It delivers 4K/30 fps hardware encoding over Wi-Fi 6 with no software or drivers, and it is compatible with USB Type-A and Type-C. Procure.ae supplies the Yealink PA20 across the UAE.

The PA20 supports 4K Ultra HD content sharing at up to 30 frames per second. Its hardware encoding works without software or drivers, so a presenter can plug in and present. The device is compatible with USB Type-A and Type-C, includes an embedded meeting assistant, and uses Wi-Fi 6 for quick setup. Its listed power consumption is 2.2 W typical from a 5 V, 600 mA input, and its operating range is -10 to 40 °C.

The PA20 suits meeting spaces where presenters bring their own laptops and want to share without installing software. It supports the 802.11 a/b/g/n/ac/ax wireless standards and WPA-PSK or WPA2-PSK security. Its listed size is 220 x 38 x 16 mm and it weighs 75 g. The manufacturer's specifications do not state mounting options or the supported operating systems for this model.

Resolution

3840 x 2160 (4K UHD) at 30 fps

Type

Wireless Presentation System

Weight

75 g

Key features

4K Ultra HD sharing

Shares content at 4K resolution and up to 30 fps.

Hardware encoding

Provides 4K/30 FPS hardware encoding without software or drivers.

Plug-and-present use

Presenters plug in and present with no software installation.

Wi-Fi 6 setup

Uses Wi-Fi 6 (802.11ax) for quick setup.

Embedded meeting assistant

Features an embedded meeting assistant.

USB Type-A and Type-C

Compatible with USB Type-A and Type-C connections.

WPA2 security

Supports WPA-PSK and WPA2-PSK wireless security.

Low power draw

Consumes 2.2 W typical from a 5 V, 600 mA input.

Specifications

General
Key Features	4K/30 fps hardware encoding, no software or drivers needed, embedded meeting assistant, Wi-Fi 6 setup, WPA-PSK/WPA2-PSK security, USB Type-A and Type-C compatible, BYOD device
Model	PA20
Type	Wireless Presentation System

Display
Resolution	3840 x 2160 (4K UHD) at 30 fps

Connectivity
Wi-Fi	802.11 a/b/g/n/ac/ax

Power
Power Consumption	2.2 W (typical)
Power Source	5 V, 600 mA

Physical
Dimensions	220 x 38 x 16 mm
Operating Humidity	0% to 90% RH, non-condensing
Operating Temperature	-10 to 40 °C
Weight	75 g
