VSYS VTLS17H-46TW Crank Height-Adjustable TV Cart for 37"–70" Displays, 70 kg
- Model: VTLS17H-46TW
- SKU: VTLS17H-46TW
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VTLS17H-46TW is a crank height-adjustable TV cart with pegboard storage for 37"–70" displays up to 70 kg, available in the UAE from Procure.ae.Spring-lock columns are quick, but they move in one jump and they fight back when a heavy panel is loaded.... See More
The VSYS VTLS17H-46TW is a crank height-adjustable TV cart with pegboard storage for 37"–70" displays up to 70 kg, available in the UAE from Procure.ae.
Spring-lock columns are quick, but they move in one jump and they fight back when a heavy panel is loaded. Where the display height needs to land on a specific figure, and land on it repeatedly, a geared crank is the better mechanism. The VTLS17H-46TW turns a handle to raise or lower the column through a 450mm range under full load, stopping wherever it is left. For wheelchair-height viewing, camera framing in a studio, or a ward round where the screen must clear a bed rail, that control matters more than speed.
Everything else is built for daily service. The bracket takes 70 kg on VESA patterns from 200x200mm to 600x400mm, tilts toolless from plus 5 to minus 12 degrees, and rotates 0 to 90 degrees for portrait content. A pegboard panel holds cables and accessories on the cart, two height-adjustable shelves rated to 5 kg each carry source equipment and a conferencing camera, and the steel frame is finished in matte black powder coat.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features

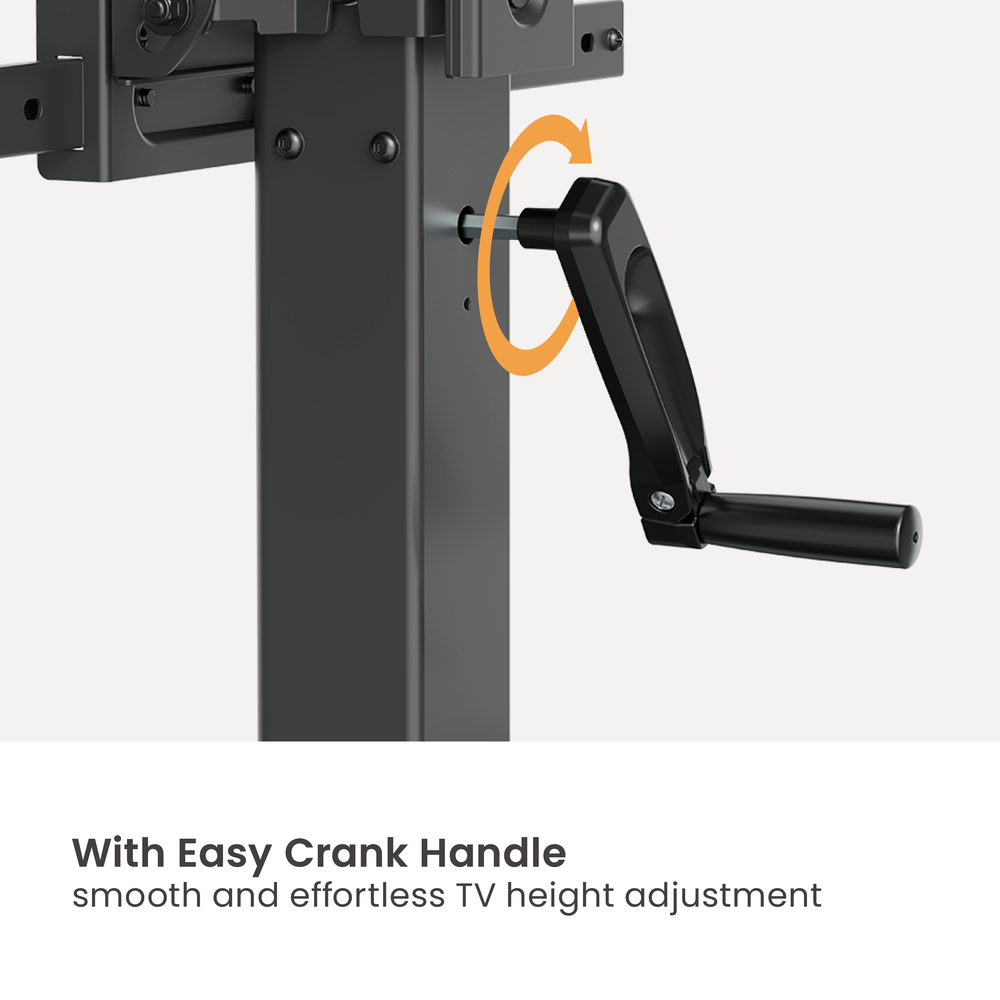

- Crank handle raises and lowers the column smoothly through a 450mm range while the display is loaded, with no spring release to overcome.
- Geared adjustment stops at any point in the travel, so a specific screen height can be reproduced exactly on every setup.
- 70 kg display rating on VESA patterns from 200x200mm to 600x400mm covers mainstream 37" to 70" commercial panels.
- Toolless tilt from plus 5 to minus 12 degrees, with extra downward travel for screens set above seated viewers.
- Rotation through 0 to 90 degrees allows portrait signage as well as landscape presentation use.
- Pegboard storage panel keeps cables, hooks and small accessories fixed to the cart rather than loose in a drawer.

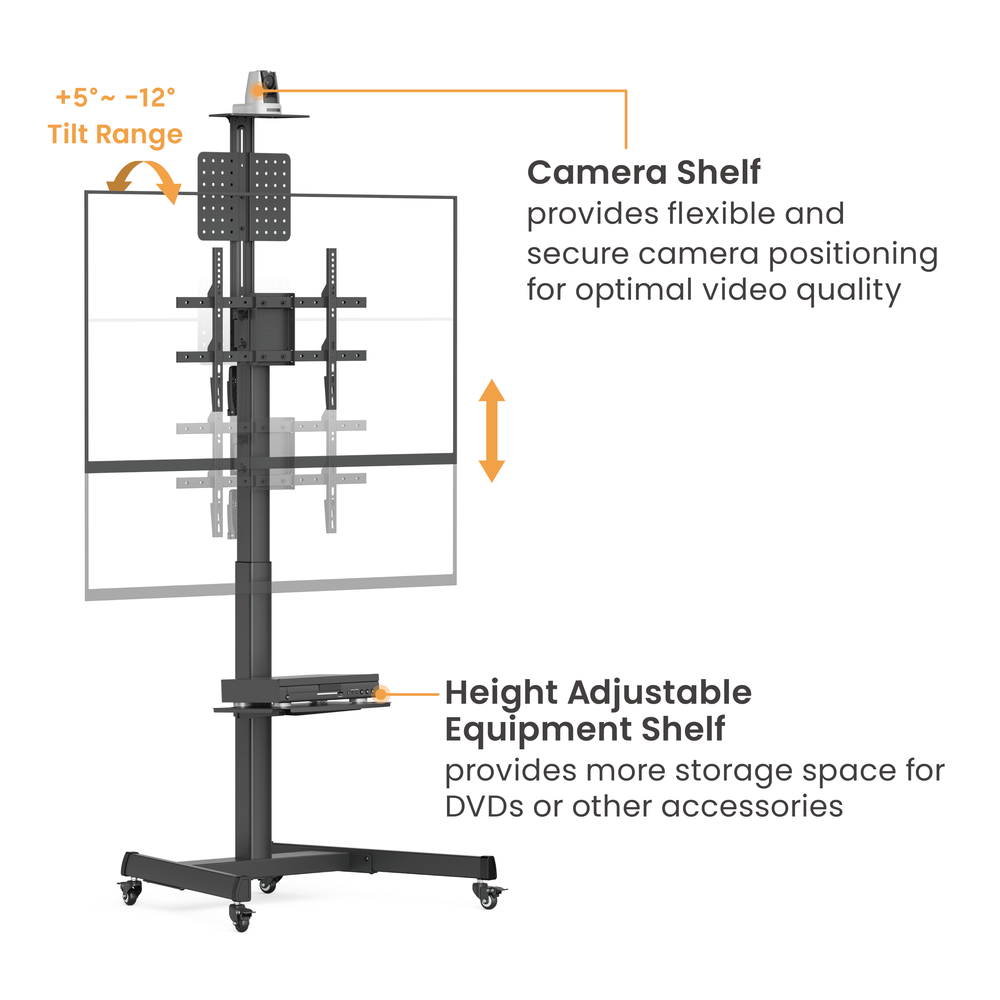

- Two height-adjustable shelves rated to 5 kg each, one for a source device and one for a conferencing camera above the display.
- Caster base lets one person move the cart between rooms without dismantling anything.
- Steel construction with matte black powder coating, chosen to survive repeated handling in shared spaces.
- Strength tested to four times the rated load, and entirely free-standing so no wall or floor fixing is needed.
Technical Specifications
| Model | VTLS17H-46TW |
| Type | Crank height-adjustable mobile TV cart with pegboard storage |
| Screen size range | 37 to 70 inches |
| Weight capacity | 70 kg display, 5 kg per shelf |
| VESA compatibility | 200x200mm to 600x400mm |
| Movement | Toolless tilt and 0 to 90 degree rotation |
| Tilt | Plus 5 to minus 12 degrees, toolless |
| Rotation | 0 to 90 degrees, portrait or landscape |
| Height adjustment | 450mm range, crank handle mechanism |
| Shelves | Height-adjustable equipment shelf and camera shelf, 5 kg each |
| Storage | Pegboard accessory and cable panel |
| Mobility | Caster base |
| Material | Steel and plastic |
| Finish | Matte black powder coating |
| Testing | Strength tested to 4x rated load |
| Package contents | Steel column, TV bracket, crank handle mechanism, pegboard storage panel, height-adjustable equipment and camera shelves, caster base, mounting hardware, assembly guide |
Ideal for: hospitals and clinics where screen height must clear beds and equipment, inclusive-access meeting rooms serving seated and standing viewers, broadcast and content studios needing repeatable framing, laboratories and technical training rooms, showrooms with rotating demonstrations, and government service counters across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VTLS17H-46TW Crank Height-Adjustable TV Cart for 37"–70" Displays, 70 kg |
| Height Adjustment Type | Crank handle mechanism, 450mm range, operable under load |
| Mounting Type | Free-standing mobile cart, no wall fixing required |
| Screen Size Support | 37 to 70 inch flat and curved displays |
| Product Type | Crank height-adjustable mobile TV cart with pegboard storage |
| Screen Size Range | 37 to 70 inches |
| Load Capacity | 70 kg display, 5 kg per shelf |
| VESA Compatibility | 200x200mm to 600x400mm |
| Movement | Toolless tilt and 0 to 90 degree rotation |
| Tilt | Plus 5 to minus 12 degrees, toolless |
| Swivel | None |
| Rotation | 0 to 90 degrees, portrait or landscape |
| Height Range | 450mm adjustment range |
| Material and Finish | Steel and plastic |
| Available Finishes | Matte black powder coating |
| Mounting Interface | VESA 200x200mm to 600x400mm |
| Cable Management | Pegboard panel for cables and accessories plus column cable management |
| Shelves | Height-adjustable equipment shelf and camera shelf, 5 kg each |
| Mobility | Caster base |
| Testing and Certification | Strength tested to 4 times rated load |
| In the Box | Steel column, TV bracket, crank handle mechanism, pegboard storage panel, height-adjustable equipment and camera shelves, caster base, mounting hardware, assembly guide |
| MPN | VTLS17H-46TW |
| Model | VTLS17H-46TW |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VTLS17H-46TW in the UAE?
Procure.ae supplies the VSYS VTLS17H-46TW across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Why choose a crank rather than a quick-release lock?
A crank moves the column gradually and holds at any point in the 450mm travel, so an exact screen height can be set and repeated with a loaded display. A quick-release lock is faster but less precise. The quick-release version of this frame is the VTLS17-46TW.
Can the crank be turned with the display mounted?
Yes. The mechanism is designed to be operated under load within the 70 kg rating, so the screen does not need to be removed to change height.
What can the pegboard panel hold?
Cables, hooks, remotes, adapters and other small AV accessories, kept attached to the cart so the kit stays with the display as it moves between rooms.
Does it support portrait orientation for signage?
Yes. The bracket rotates through 0 to 90 degrees, and the toolless tilt range of plus 5 to minus 12 degrees can then be used to correct the viewing angle.
