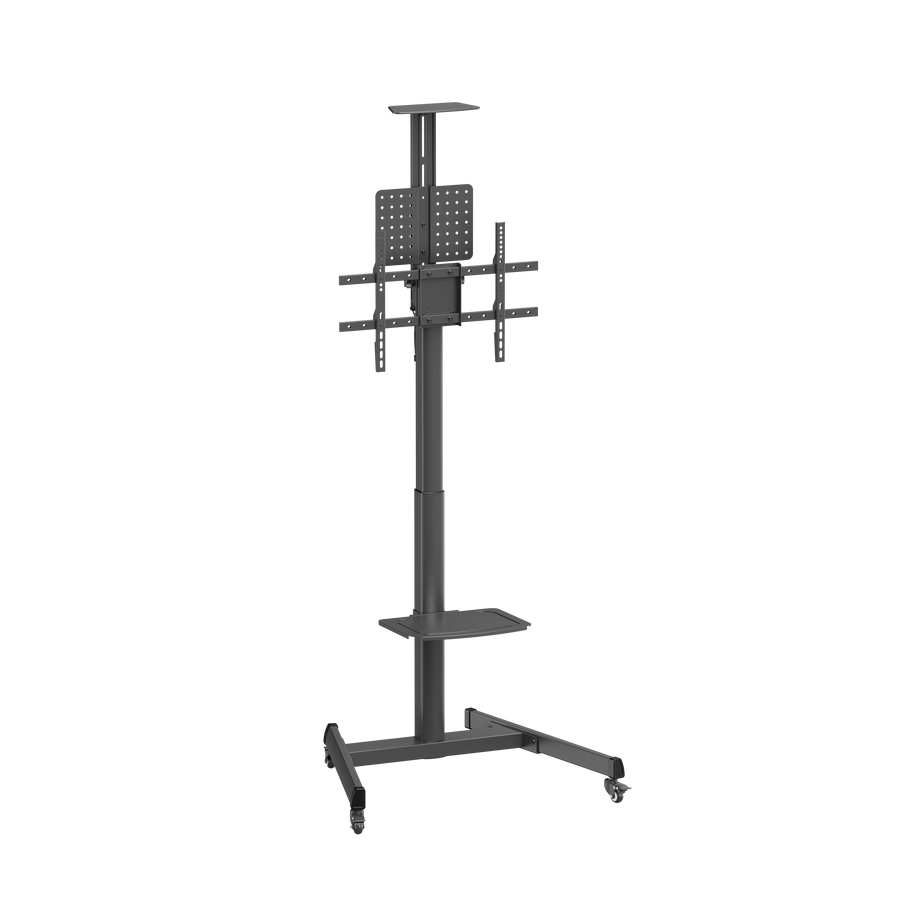

VSYS VTLS17H-46TW Crank Height-Adjustable TV Cart for 37"–70" Displays, 70 kg

The VSYS VTLS17H-46TW is a crank height-adjustable TV cart with pegboard storage for 37"–70" displays up to 70 kg, available in the UAE from Procure.ae.

Spring-lock columns are quick, but they move in one jump and they fight back when a heavy panel is loaded. Where the display height needs to land on a specific figure, and land on it repeatedly, a geared crank is the better mechanism. The VTLS17H-46TW turns a handle to raise or lower the column through a 450mm range under full load, stopping wherever it is left. For wheelchair-height viewing, camera framing in a studio, or a ward round where the screen must clear a bed rail, that control matters more than speed.

Everything else is built for daily service. The bracket takes 70 kg on VESA patterns from 200x200mm to 600x400mm, tilts toolless from plus 5 to minus 12 degrees, and rotates 0 to 90 degrees for portrait content. A pegboard panel holds cables and accessories on the cart, two height-adjustable shelves rated to 5 kg each carry source equipment and a conferencing camera, and the steel frame is finished in matte black powder coat.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

Crank height-adjustable mobile TV cart with pegboard storage

Key features

Crank handle raises and lowers the column smoothly through a 450mm range while the display is loaded, with no spring release to overcome.

Geared adjustment stops at any point in the travel, so a specific screen height can be reproduced exactly on every setup.

70 kg display rating on VESA patterns from 200x200mm to 600x400mm covers mainstream 37" to 70" commercial panels.

Toolless tilt from plus 5 to minus 12 degrees, with extra downward travel for screens set above seated viewers.

Rotation through 0 to 90 degrees allows portrait signage as well as landscape presentation use.

Pegboard storage panel keeps cables, hooks and small accessories fixed to the cart rather than loose in a drawer.

Two height-adjustable shelves rated to 5 kg each, one for a source device and one for a conferencing camera above the display.

Caster base lets one person move the cart between rooms without dismantling anything.

Steel construction with matte black powder coating, chosen to survive repeated handling in shared spaces.

Strength tested to four times the rated load, and entirely free-standing so no wall or floor fixing is needed.

Specifications

General
Key Features	Pegboard panel for cables and accessories plus column cable management, Caster base
Model	VTLS17H-46TW
Type	Crank height-adjustable mobile TV cart with pegboard storage
What's in the Box	Steel column, TV bracket, Crank handle mechanism, Pegboard storage panel, Height-adjustable equipment and camera shelves, Caster base, Mounting hardware, Assembly guide

Display
Supported Screen Sizes	37-70" (flat and curved)

Physical
Adjustability	Tilt, rotation
Finish	Matte black powder-coated
Height Range	450 mm range, crank handle, operable under load
Load Capacity	70 kg display, 5 kg per shelf
Material	Steel and plastic
Mounting	Free-standing mobile cart, no wall fixing required
Rotation	0-90° (portrait/landscape)
Shelves	Height-adjustable equipment shelf and camera shelf, 5 kg each
Tilt	-12 to +5°, toolless
VESA Mount	200 x 200 to 600 x 400 mm

Compliance
Certifications	Strength tested to 4 times rated load
