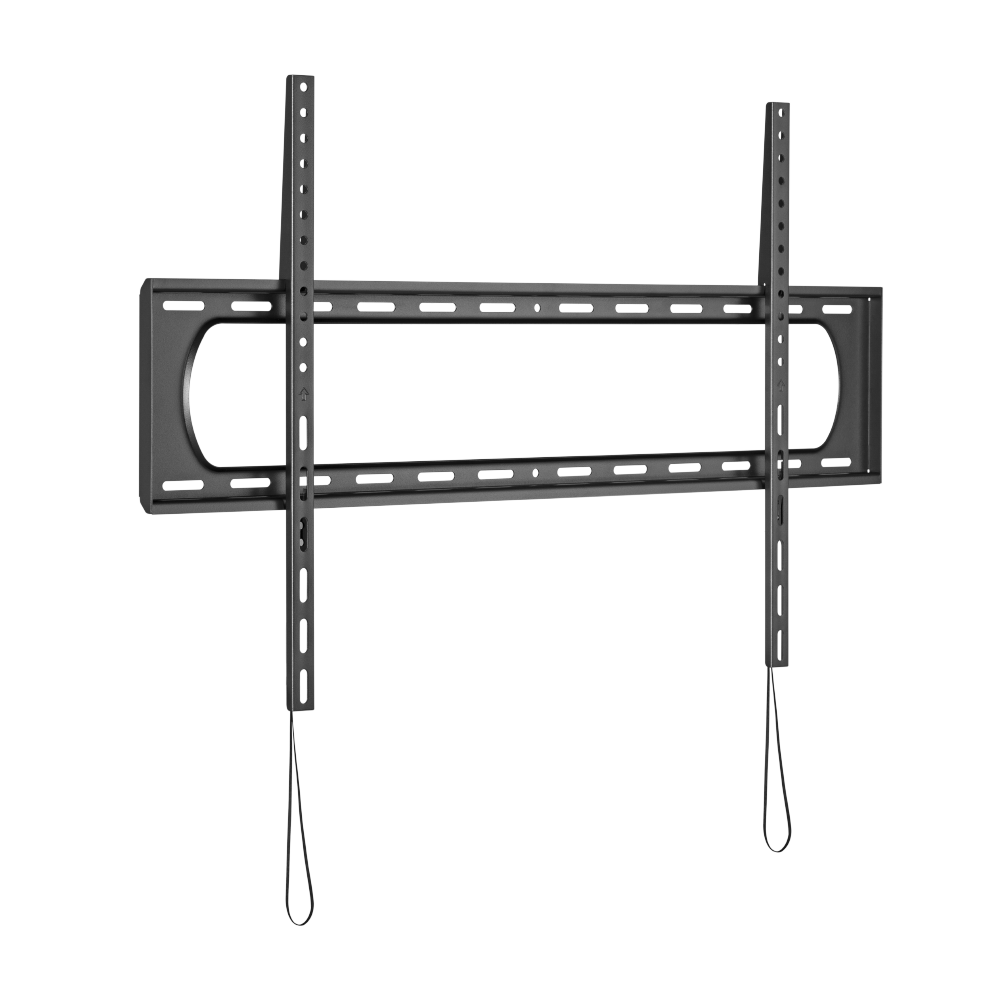

VSYS VS01A-69F Heavy-Duty Fixed TV Wall Mount for 60"–120" Displays, 120 kg
- Model: VS01A-69F
- SKU: VS01A-69F
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS01A-69F is a 120 kg heavy-duty fixed wall mount for large-format displays from 60" to 120", available in the UAE from Procure.ae. Once a panel passes roughly 85 inches, the mount stops being a bracket and becomes a structural component. An auditorium... See More
The VSYS VS01A-69F is a 120 kg heavy-duty fixed wall mount for large-format displays from 60" to 120", available in the UAE from Procure.ae.
Once a panel passes roughly 85 inches, the mount stops being a bracket and becomes a structural component. An auditorium screen, a ballroom display or a 120" signage panel concentrates well over a hundred kilos on a small area of wall, usually at height and usually above people. The VS01A-69F is built for that duty: a 120 kg rating, a UL approval, and a wall plate wide enough to distribute the load across two structural studs rather than a single fixing line.

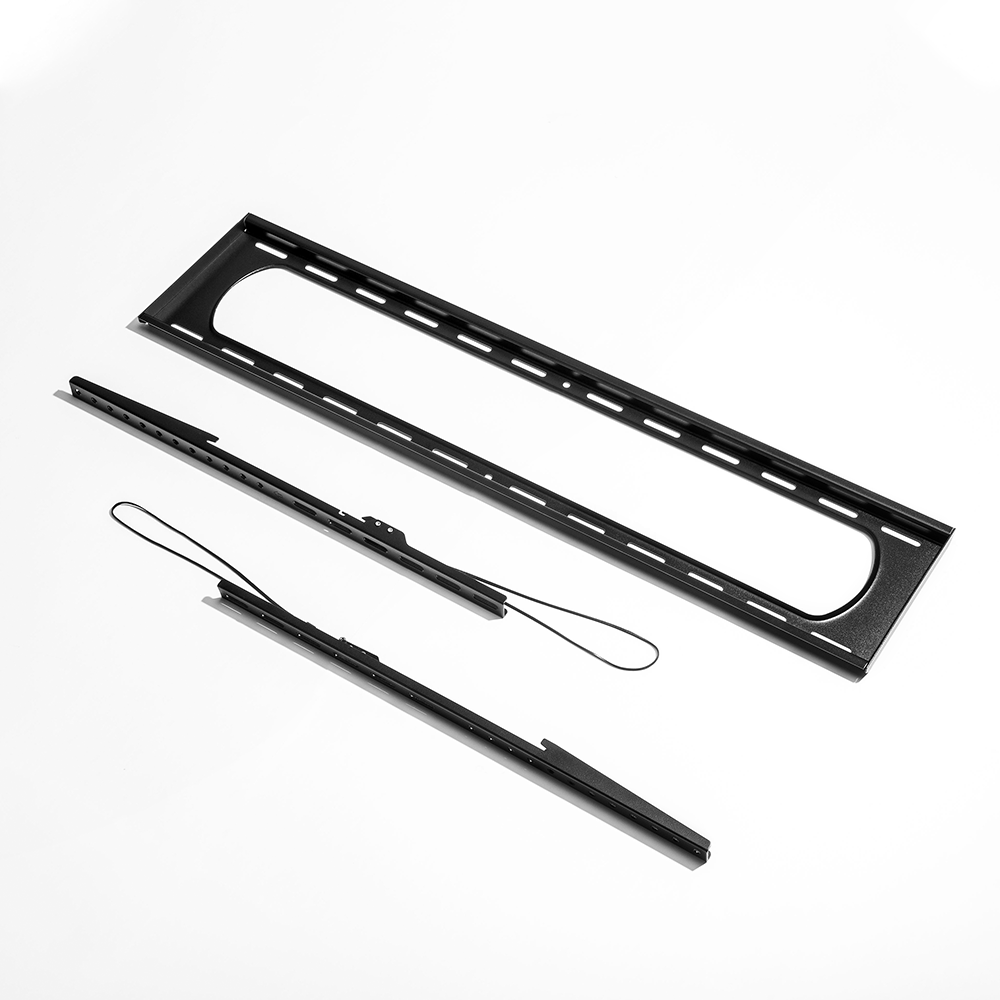

Both the bracket arms and the wall plate are formed from 2 mm cold-rolled steel. The plate is drilled for solid walls or for studs at 406 mm, 450 mm or 600 mm centres, and a hook-on bubble level is supplied so it can be trued before the fixings are driven home. Arms bolt to VESA patterns from 50 x 50 mm up to 900 x 600 mm, with a maximum hole spread of 974 x 602 mm. The panel hangs 35 mm from the wall and locks with spring catches; pull cords release it again for rear access.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Rated to 120 kg, which covers commercial 98" and 110" panels that exceed the limit of a standard consumer mount.
- Fits displays from 60" to 120", flat or curved, so a single part number serves a mixed large-format estate.
- 2 mm cold-rolled steel is used for the arms and the wall plate, not just the load-bearing rail.
- UL approved, which matters when a mount is being signed off for a public-facing or overhead installation.
- VESA coverage from 50 x 50 mm to 900 x 600 mm, with a maximum hole spread of 974 x 602 mm for wide-pattern panels.

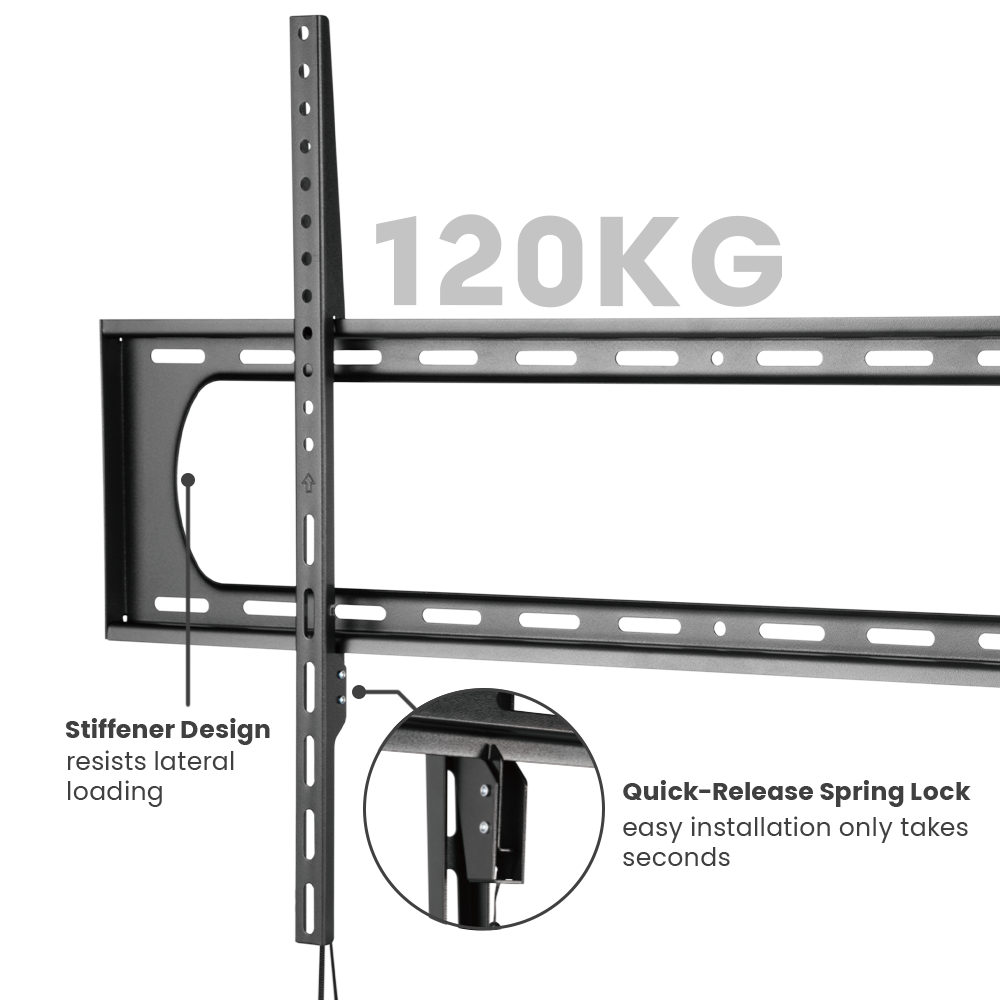

- Quick-release spring locks with pull cords let one installer drop the panel forward for cable work without dismantling the bracket.
- 35 mm wall clearance keeps a very large screen visually integrated rather than standing proud of the wall.
- Open architecture behind the panel leaves room for socket outlets, concealed cabling and convection airflow.
- Wall plate is drilled for solid walls and for dual studs at 406 mm, 450 mm or 600 mm, and ships with a hook-on bubble level.
Technical Specifications
| Model | VS01A-69F |
| Mount type | Heavy-duty fixed wall mount |
| Screen size range | 60 to 120 inches |
| Weight capacity | Up to 120 kg |
| VESA range | 50 x 50 mm to 900 x 600 mm |
| Maximum hole spread | 974 x 602 mm |
| Wall clearance | 35 mm |
| Movement | Fixed, no tilt or swivel |
| Material | 2 mm cold-rolled steel arms and wall plate |
| Panel release | Quick-release spring locks with pull cords |
| Stud spacing | 406 mm, 450 mm and 600 mm |
| Certification | UL approved |
| Supplied with | Hook-on bubble level |
Ideal for: auditoriums and lecture theatres, corporate town-hall and large boardroom displays, hotel ballrooms and event spaces, airport and transport signage, shopping-mall feature walls, and control-room overview screens across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS01A-69F Heavy-Duty Fixed TV Wall Mount for 60"–120" Displays, 120 kg |
| Mounting Type | Wall mount |
| Screen Size Support | 60 to 120 inches |
| Wall Mount Type | Heavy duty fixed |
| Product Type | Heavy duty fixed wall mount |
| Screen Size Range | 60 to 120 inches |
| Load Capacity | Up to 120 kg |
| VESA Compatibility | 50 x 50 mm to 900 x 600 mm, maximum hole spread 974 x 602 mm |
| Movement | Fixed, no tilt or swivel |
| Wall Clearance | 35 mm |
| Material and Finish | 2 mm cold-rolled steel arms and wall plate |
| Mounting Interface | Solid wall or dual studs at 406 mm, 450 mm and 600 mm spacing |
| Cable Management | Open architecture rear space for outlets, cabling and ventilation |
| Testing and Certification | UL approved |
| In the Box | Wall plate, bracket arms, fixing hardware and hook-on bubble level |
| MPN | VS01A-69F |
| Model | VS01A-69F |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS01A-69F in the UAE?
Procure.ae supplies the VSYS VS01A-69F across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How heavy a display can the VS01A-69F carry?
Up to 120 kg. That is enough for the commercial 98" and 110" panels that typically fall between 70 kg and 110 kg, but the wall itself must be verified separately, since the fixing substrate is usually the limiting factor rather than the mount.
What VESA patterns does it accept?
From 50 x 50 mm up to 900 x 600 mm, with a maximum usable hole spread of 974 x 602 mm. That range takes in the widely spaced mounting grids used on 98" and larger commercial panels.
How do I reach the connections behind the screen after installation?
Pull cords operate the spring locks, releasing the panel from the wall plate so it can be tilted forward or lifted off for rear access. The catches re-engage when the display is seated again.
Is a two-person installation necessary?
For panels in this class, yes. A screen approaching 120 kg should be lifted onto the plate by at least two people, and the wall plate should be levelled with the supplied bubble level and fixed across two studs or into a solid structural wall with rated anchors.
How does it differ from the tilting VS01A-69T?
The VS01A-69F holds the panel at a fixed angle for the lowest possible 35 mm profile. The VS01A-69T shares the same size and weight class but adds downward tilt for screens mounted above eye level.
