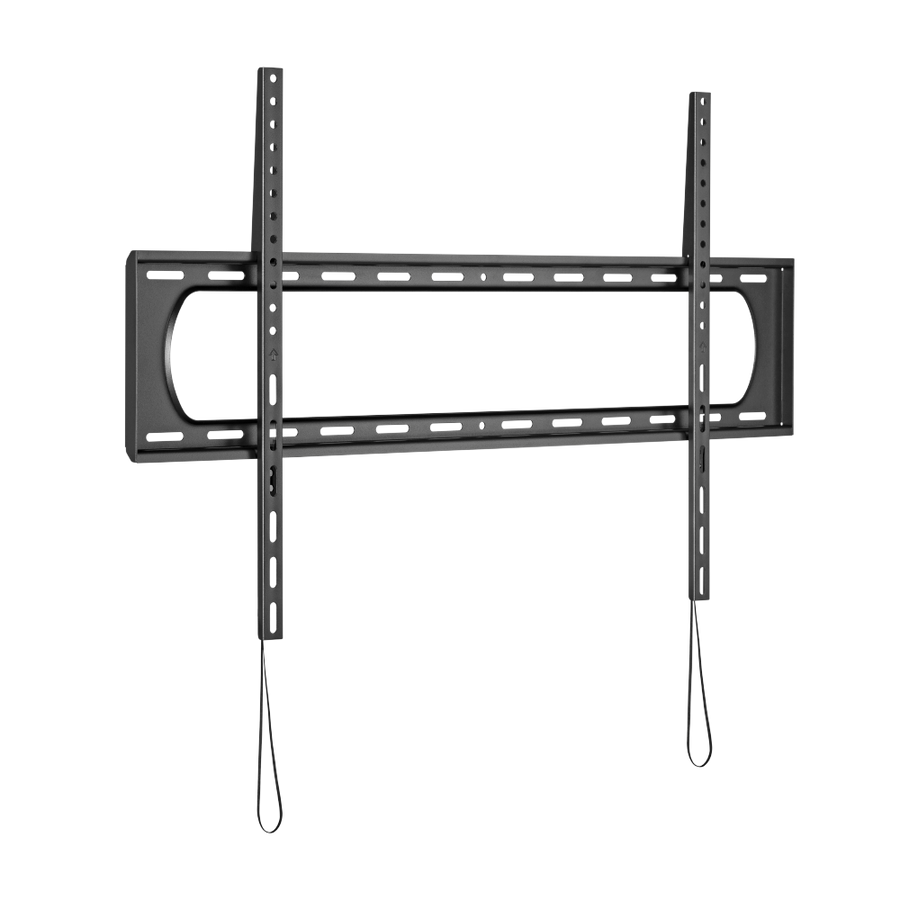

VSYS VS01A-69F Heavy-Duty Fixed TV Wall Mount for 60"–120" Displays, 120 kg

The VSYS VS01A-69F is a 120 kg heavy-duty fixed wall mount for large-format displays from 60" to 120", available in the UAE from Procure.ae.

Once a panel passes roughly 85 inches, the mount stops being a bracket and becomes a structural component. An auditorium screen, a ballroom display or a 120" signage panel concentrates well over a hundred kilos on a small area of wall, usually at height and usually above people. The VS01A-69F is built for that duty: a 120 kg rating, a UL approval, and a wall plate wide enough to distribute the load across two structural studs rather than a single fixing line.

Both the bracket arms and the wall plate are formed from 2 mm cold-rolled steel. The plate is drilled for solid walls or for studs at 406 mm, 450 mm or 600 mm centres, and a hook-on bubble level is supplied so it can be trued before the fixings are driven home. Arms bolt to VESA patterns from 50 x 50 mm up to 900 x 600 mm, with a maximum hole spread of 974 x 602 mm. The panel hangs 35 mm from the wall and locks with spring catches; pull cords release it again for rear access.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
