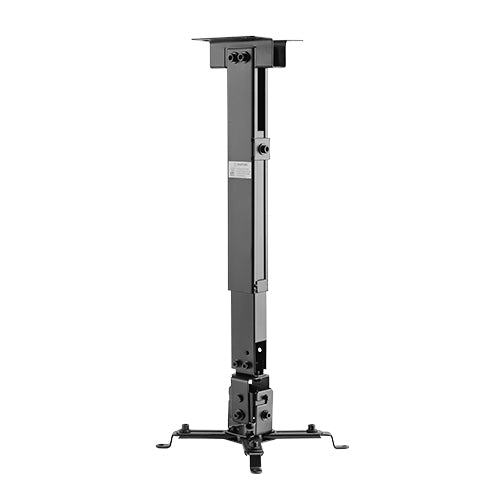

VSYS VPM-2G Universal Wall & Ceiling Projector Mount, 350–650 mm Reach, 20 kg
- Model: VPM-2G
- SKU: VPM-2G
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VPM-2G is a universal projector mount for projectors up to 20 kg that installs on either a wall or a ceiling, available in the UAE from Procure.ae. Not every room offers a usable ceiling point. Slabs get filled with services, tenants are... See More
The VSYS VPM-2G is a universal projector mount for projectors up to 20 kg that installs on either a wall or a ceiling, available in the UAE from Procure.ae.
Not every room offers a usable ceiling point. Slabs get filled with services, tenants are barred from drilling the soffit, or the projector simply needs to sit close to the screen for a short-throw lens. The VPM-2G is specified for those rooms: the same bracket bolts to a solid wall above the screen or to a ceiling, so a single part number can standardise projector installations across a floor of mixed rooms instead of splitting the order between two mount types.
Reach is adjustable, 350 mm to 560 mm out from a wall or 430 mm to 650 mm down from a ceiling, which is the working window that most short-throw and standard-throw lenses need. Four support arms fan out to meet the projector chassis holes, so fit depends on arm span rather than a VESA pattern. The head tilts 15 degrees either side of level and swivels 8 degrees either way, and a quick-release connector lets the projector come off for service and go back on without re-aiming.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- One bracket serves both wall and ceiling installations, so rooms without a usable ceiling fixing can still be standardised on the same model.
- Rated for projectors up to 20 kg, matching compact, short-throw and mid-range classroom and meeting-room projectors.
- Extension of 350 mm to 560 mm from a wall, or 430 mm to 650 mm from a ceiling, to set lens-to-screen distance correctly.
- Four adjustable support arms fit a wide range of projector chassis hole patterns.
- Free-tilting head, plus 15 to minus 15 degrees, corrects vertical geometry and reduces glare off the screen.
- Swivel of plus 8 to minus 8 degrees fine-tunes horizontal alignment once the bracket is fixed.
- Quick-release connector separates the projector from the arm for maintenance without disturbing the alignment.
- Cable management keeps power and signal leads concealed along the arm.
- Solid steel body with a powder-coated finish in matte black, gloss grey or matte white.
Technical Specifications
| Model | VPM-2G |
| Type | Universal wall and ceiling projector mount |
| Load capacity | Up to 20 kg |
| Wall extension | 350 mm to 560 mm |
| Ceiling drop | 430 mm to 650 mm |
| Tilt | Plus 15 to minus 15 degrees |
| Swivel | Plus 8 to minus 8 degrees |
| Projector attachment | Four adjustable support arms with quick-release connector |
| Mounting | Solid wall or ceiling |
| Material | Steel |
| Finish | Powder coat in matte black, gloss grey or matte white |
| Cable management | Concealed routing along the arm |
Ideal for: classrooms and training centres, meeting and huddle rooms, retail and showroom displays, hotel function rooms, clinic and lobby signage projection, and community or worship halls across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VPM-2G Universal Wall & Ceiling Projector Mount, 350–650 mm Reach, 20 kg |
| Mounting Type | Wall or ceiling |
| Product Type | Universal wall and ceiling projector mount |
| Load Capacity | Up to 20 kg |
| Movement | Tilt and swivel with quick-release projector connector |
| Tilt | Plus 15 to minus 15 degrees |
| Swivel | Plus 8 to minus 8 degrees |
| Extension Range | Wall 350 mm to 560 mm |
| Drop Range | Ceiling 430 mm to 650 mm |
| Material and Finish | Steel |
| Available Finishes | Matte black, gloss grey or matte white powder coat |
| Mounting Interface | Four adjustable support arms to projector chassis, quick-release connector |
| Cable Management | Concealed routing along the arm |
| MPN | VPM-2G |
| Model | VPM-2G |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VPM-2G in the UAE?
Procure.ae supplies the VSYS VPM-2G across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Should I choose the VPM-2G or a heavier ceiling mount?
Choose the VPM-2G when the projector is 20 kg or lighter and the room may need a wall fixing, a short reach, or both. For heavier installation projectors up to 35 kg, or where the projector must hang well below a high slab, a dedicated telescopic ceiling mount is the correct specification.
Does it work with short-throw projectors?
Yes. The 350 mm to 560 mm wall reach places the lens close to the screen, which is what short-throw optics require. Confirm the exact lens-to-screen distance from the projector throw chart before fixing the bracket.
How do I check my projector fits?
Projector mounts are matched by chassis hole pattern and weight rather than VESA. Measure the spacing of the threaded holes on the underside of the projector and confirm it falls within the travel of the four support arms, then confirm the projector weighs 20 kg or less.
Can the projector be taken down for servicing?
Yes. The quick-release connector separates the projector from the arm, so filters and lamps can be reached and the unit refitted without repeating the tilt and swivel alignment.
Which finishes are available for project orders?
Matte black, gloss grey and matte white are offered. State the finish and quantity when requesting a quotation so availability and lead time can be confirmed.
