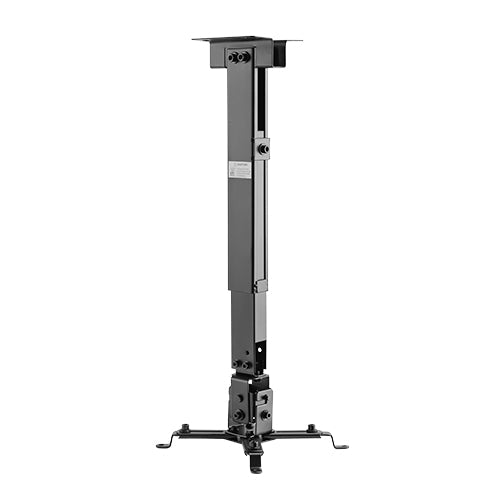

VSYS VPM-2G Universal Wall & Ceiling Projector Mount, 350–650 mm Reach, 20 kg

VSYS VPM-2G Universal Wall & Ceiling Projector Mount, 350–650 mm Reach, 20 kg

The VSYS VPM-2G is a universal projector mount for projectors up to 20 kg that installs on either a wall or a ceiling, available in the UAE from Procure.ae.

Not every room offers a usable ceiling point. Slabs get filled with services, tenants are barred from drilling the soffit, or the projector simply needs to sit close to the screen for a short-throw lens. The VPM-2G is specified for those rooms: the same bracket bolts to a solid wall above the screen or to a ceiling, so a single part number can standardise projector installations across a floor of mixed rooms instead of splitting the order between two mount types.

Reach is adjustable, 350 mm to 560 mm out from a wall or 430 mm to 650 mm down from a ceiling, which is the working window that most short-throw and standard-throw lenses need. Four support arms fan out to meet the projector chassis holes, so fit depends on arm span rather than a VESA pattern. The head tilts 15 degrees either side of level and swivels 8 degrees either way, and a quick-release connector lets the projector come off for service and go back on without re-aiming.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Universal Wall and Ceiling Projector Mount

Key features

01
One bracket serves both wall and ceiling installations, so rooms without a usable ceiling fixing can still be standardised on the same model.
02
Rated for projectors up to 20 kg, matching compact, short-throw and mid-range classroom and meeting-room projectors.
03
Extension of 350 mm to 560 mm from a wall, or 430 mm to 650 mm from a ceiling, to set lens-to-screen distance correctly.
04
Four adjustable support arms fit a wide range of projector chassis hole patterns.
05
Free-tilting head, plus 15 to minus 15 degrees, corrects vertical geometry and reduces glare off the screen.
06
Swivel of plus 8 to minus 8 degrees fine-tunes horizontal alignment once the bracket is fixed.
07
Quick-release connector separates the projector from the arm for maintenance without disturbing the alignment.
08
Cable management keeps power and signal leads concealed along the arm.
09
Solid steel body with a powder-coated finish in matte black, gloss grey or matte white.

Specifications

General
Key FeaturesConcealed routing along the arm
ModelVPM-2G
TypeUniversal Wall and Ceiling Projector Mount
Physical
AdjustabilityTilt, swivel
Extension350-560 mm from wall
FinishMatte black, gloss grey or matte white powder-coated
Height RangeCeiling drop 430-650 mm
Load Capacity20 kg
MaterialSteel
MountingWall or ceiling mount
Swivel+/-8°
Tilt-15 to +15°
VESA MountFour adjustable support arms to projector chassis, quick-release connector
