VSYS VPM-20-H Universal Projector Interface Bracket for 1.5" NPT Pipe, 35 kg
- Model: VPM-20-H
- SKU: VPM-20-H
Actual Stock & Price Can Be Confirmed After Placing the Order.

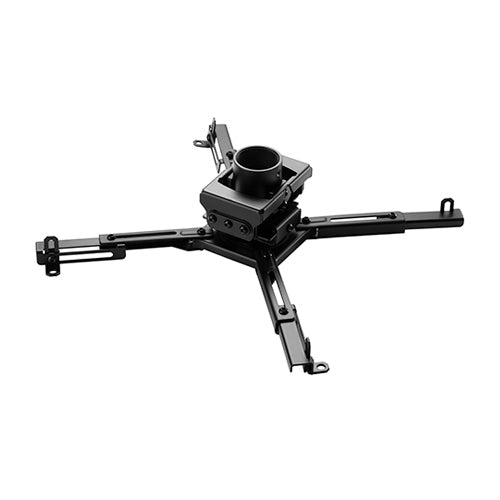

The VSYS VPM-20-H is a universal projector interface bracket that couples a projector of up to 35 kg to a standard 1.5" NPT ceiling pipe, available in the UAE from Procure.ae. This is an interface component rather than a complete ceiling kit. It supplies... See More
The VSYS VPM-20-H is a universal projector interface bracket that couples a projector of up to 35 kg to a standard 1.5" NPT ceiling pipe, available in the UAE from Procure.ae.
This is an interface component rather than a complete ceiling kit. It supplies the projector-side head and the pipe coupling only, so the drop pipe, ceiling plate and any structural fixings are specified separately to suit the slab, joist or suspended grid above. That separation is what integrators usually want on fit-out work, because the pipe length can be cut to the exact room height while the head itself stays a single, repeatable line item across every room in the building.
Adjustable arms slide in and out to meet the projector chassis hole pattern, so alignment is not tied to a VESA standard. Once the chassis is captured, the head tilts 20 degrees either side of level, swivels 8 degrees either way and rotates a full 180 degrees in both directions, which lets an off-centre ceiling position still square the image to the screen. Drop is adjustable from 130 mm to 470 mm, and cables run through the arms rather than hanging beside them.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features

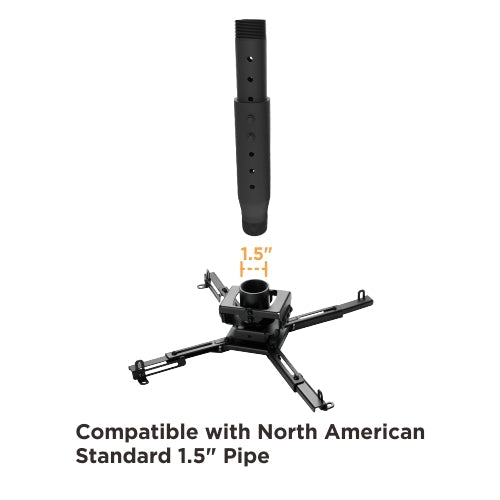

- Interface bracket for a standard 1.5-inch NPT ceiling pipe, so it drops onto existing pipe infrastructure without a proprietary column.
- Rated for projectors up to 35 kg (77 lb), which covers most mid-size installation and laser projectors.

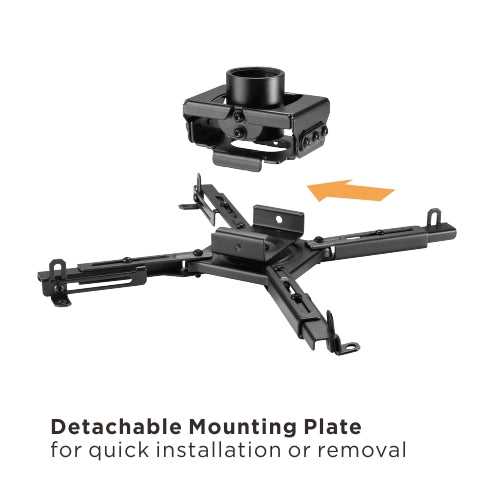

- Detachable projector plate lifts off the ceiling bracket, so a unit can come down for filter or lamp service and go back up without re-aiming from scratch.

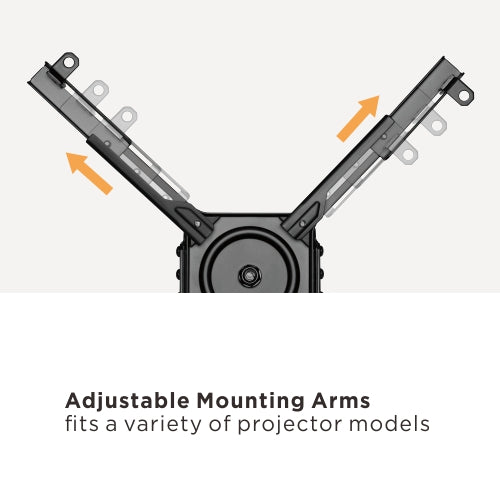

- Sliding arms fit a wide spread of chassis hole patterns, so projector compatibility is set by arm span rather than by a VESA pattern.
- Tilt of plus 20 to minus 20 degrees corrects for keystone and ceiling slope.
- Swivel of plus 8 to minus 8 degrees trims horizontal alignment after the pipe is fixed.
- Rotation of plus 180 to minus 180 degrees allows the projector to face any direction from a fixed pipe.
- Drop adjustable from 130 mm to 470 mm to clear beams, ducting and lighting tracks.

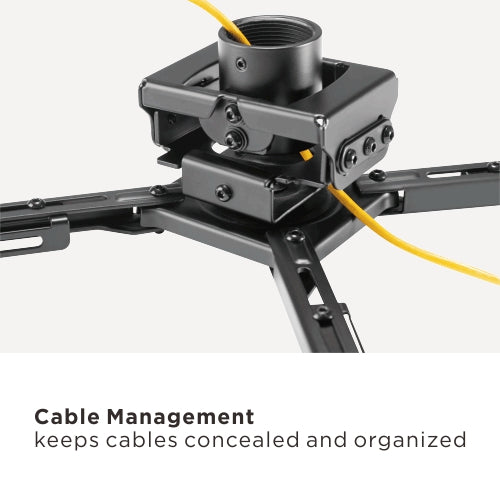

- Cable routing built into the arms keeps power and signal leads concealed.
- Steel and plastic construction with a matte black powder coat that disappears against a dark ceiling.
Technical Specifications
| Model | VPM-20-H |
| Type | Universal projector interface bracket (ceiling pipe mounted) |
| Load capacity | Up to 35 kg (77 lb) |
| Mounting interface | Standard 1.5-inch NPT ceiling pipe, pipe not supplied |
| Projector attachment | Adjustable sliding arms, universal hole patterns |
| Tilt | Plus 20 to minus 20 degrees |
| Swivel | Plus 8 to minus 8 degrees |
| Rotation | Plus 180 to minus 180 degrees |
| Drop range | 130 mm to 470 mm |
| Material | Steel and plastic |
| Finish | Matte black powder coat |
| Cable management | Integrated routing through the arms |
| Package contents | Ceiling bracket, detachable mounting plate, adjustable arms, hardware kit, installation instructions |
Ideal for: boardrooms and meeting suites, university lecture theatres and school classrooms, auditoriums and multipurpose halls, screening and training rooms, houses of worship, and hotel ballrooms across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VPM-20-H Universal Projector Interface Bracket for 1.5" NPT Pipe, 35 kg |
| Mounting Type | Ceiling pipe mounted |
| Product Type | Universal projector interface bracket for ceiling pipe |
| Load Capacity | Up to 35 kg (77 lb) |
| Movement | Tilt, swivel and full rotation |
| Tilt | Plus 20 to minus 20 degrees |
| Swivel | Plus 8 to minus 8 degrees |
| Rotation | Plus 180 to minus 180 degrees |
| Drop Range | 130 mm to 470 mm |
| Material and Finish | Steel and plastic |
| Available Finishes | Matte black powder coat |
| Mounting Interface | Standard 1.5 inch NPT ceiling pipe, pipe not supplied |
| Cable Management | Integrated cable routing through the arms |
| In the Box | Ceiling bracket, detachable mounting plate, adjustable mounting arms, hardware kit, installation instructions |
| MPN | VPM-20-H |
| Model | VPM-20-H |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VPM-20-H in the UAE?
Procure.ae supplies the VSYS VPM-20-H across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Is the VPM-20-H a complete ceiling mount?
No. It is the interface bracket that joins the projector to the ceiling pipe. The 1.5-inch NPT pipe, the ceiling plate and the structural fixings are not part of the package and are specified to suit the ceiling and the required drop.
Which projectors fit the VPM-20-H?
Any projector up to 35 kg whose chassis mounting holes fall within the span of the adjustable arms. Projector mounts are matched by arm span and chassis hole pattern rather than by VESA size, so check the four threaded holes on the underside of the projector against the arm travel.
How far below the ceiling does the projector sit?
The bracket itself gives 130 mm to 470 mm of adjustment. Anything beyond that is set by the length of the NPT pipe you specify, which is how installations in high-ceilinged halls reach the correct throw height.
Can the projector be removed for servicing without losing alignment?
Yes. The projector plate detaches from the ceiling bracket, so the unit can be lifted down for filter cleaning or replacement and refitted without redoing the tilt, swivel and rotation settings.
Can Procure.ae quote project quantities?
Yes. Multi-room and multi-site quantities are quoted with lead times and delivery scheduling for contractors and AV integrators working across the UAE and GCC.
