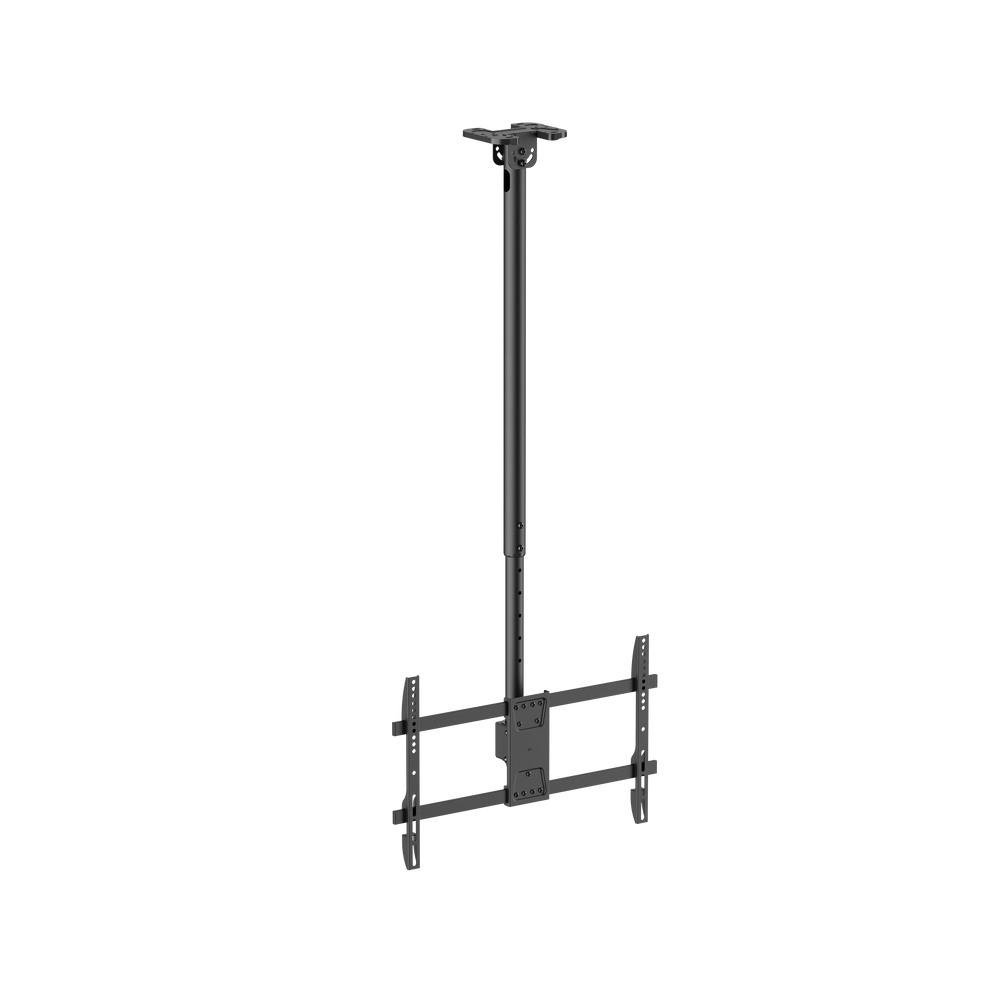

VSYS VCM-CE1546L adjustable ceiling TV mount, front viewVSYS
SKU VCM-CE1546L

VSYS VCM-CE1546L Adjustable Ceiling TV Mount for 43"–86" Displays, 60 kg

The VSYS VCM-CE1546L is a single-screen adjustable ceiling mount for 43"–86" displays weighing up to 60 kg, available in the UAE from Procure.ae.

Plenty of commercial spaces have no wall worth mounting to. Glazed retail frontages, airport concourses, supermarket aisles and atriums either have no solid surface at the right sightline or need the screen out in the room rather than at its edge. This mount hangs the display from the structure above instead, which puts a 60 kg panel exactly where the traffic flow is and keeps the floor and walls clear.

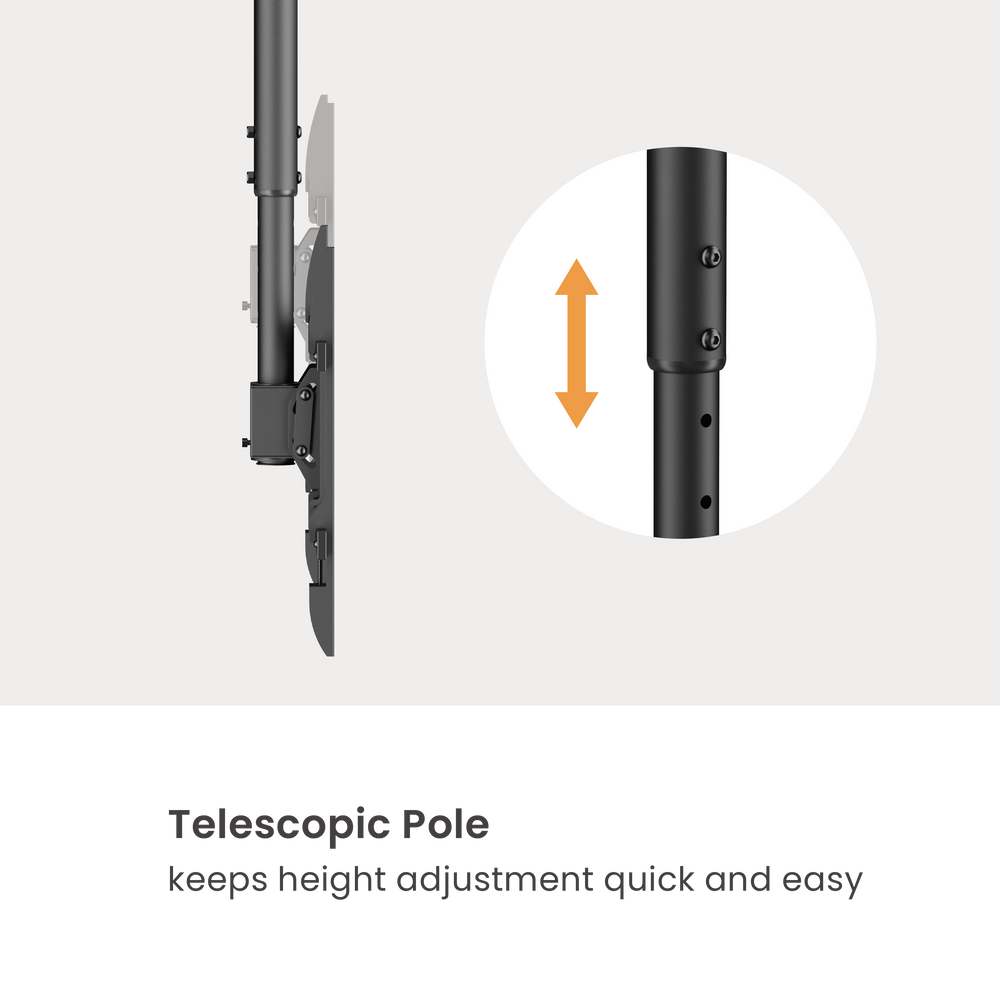

A telescopic pole sets the drop anywhere between 1090 mm and 1690 mm below the ceiling, and the ceiling plate itself tilts, so the same part fits a flat slab or a pitched roof without a separate adaptor. Once hung, the screen rotates a full 360 degrees around the pole, tilts from 0 to minus 25 degrees for high mounting positions, and has a plus or minus 3 degree levelling adjustment to square it up after fixing. Cabling runs inside the pole. VESA patterns from 200x200 mm to 600x400 mm are supported.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Single-Screen Adjustable Ceiling Mount
  • Rated to 60 kg, which covers 86 inch commercial panels rather than only lightweight signage screens.
  • Telescopic pole gives a 1090 mm to 1690 mm drop, so one part number serves a range of ceiling heights on a multi-site rollout.
  • Tiltable ceiling plate fixes to pitched as well as flat ceilings, avoiding custom bracketry on sloped soffits.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Rated to 60 kg, which covers 86 inch commercial panels rather than only lightweight signage screens.
02
Telescopic pole gives a 1090 mm to 1690 mm drop, so one part number serves a range of ceiling heights on a multi-site rollout.
03

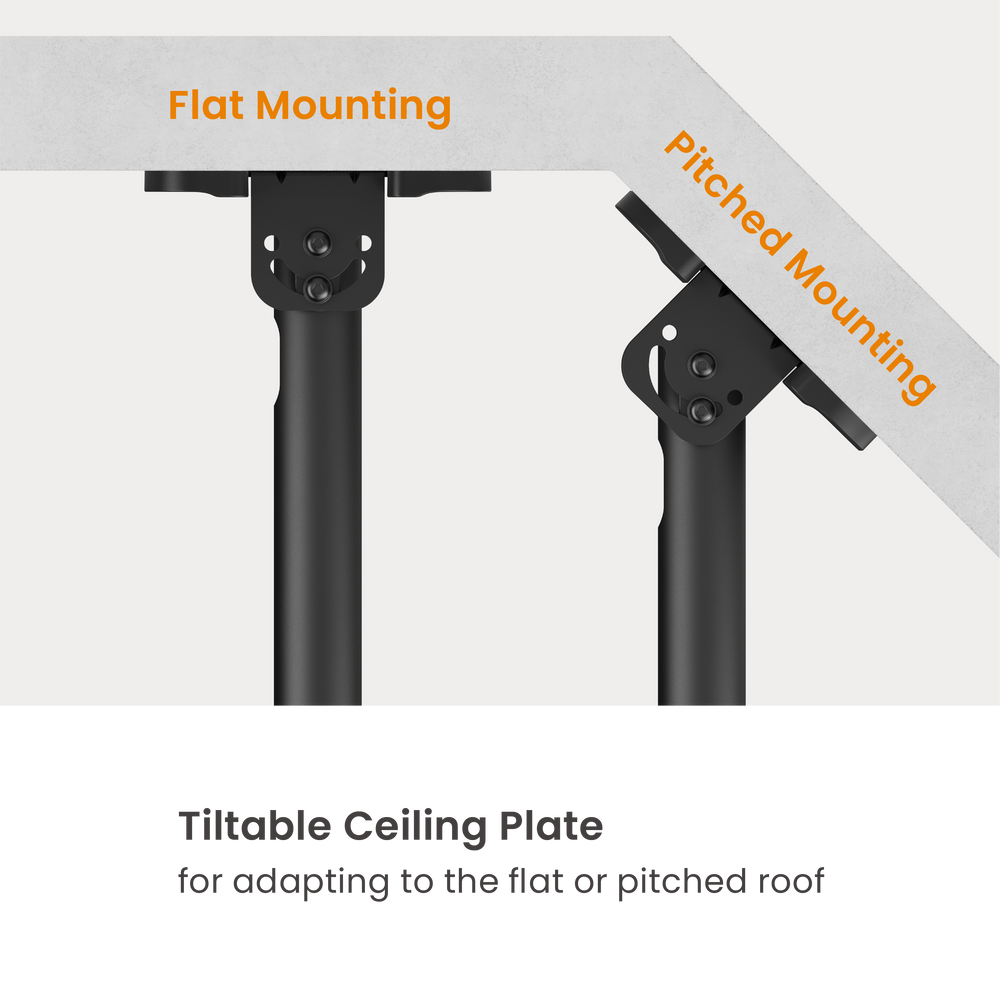

Tiltable ceiling plate fixes to pitched as well as flat ceilings, avoiding custom bracketry on sloped soffits.
04

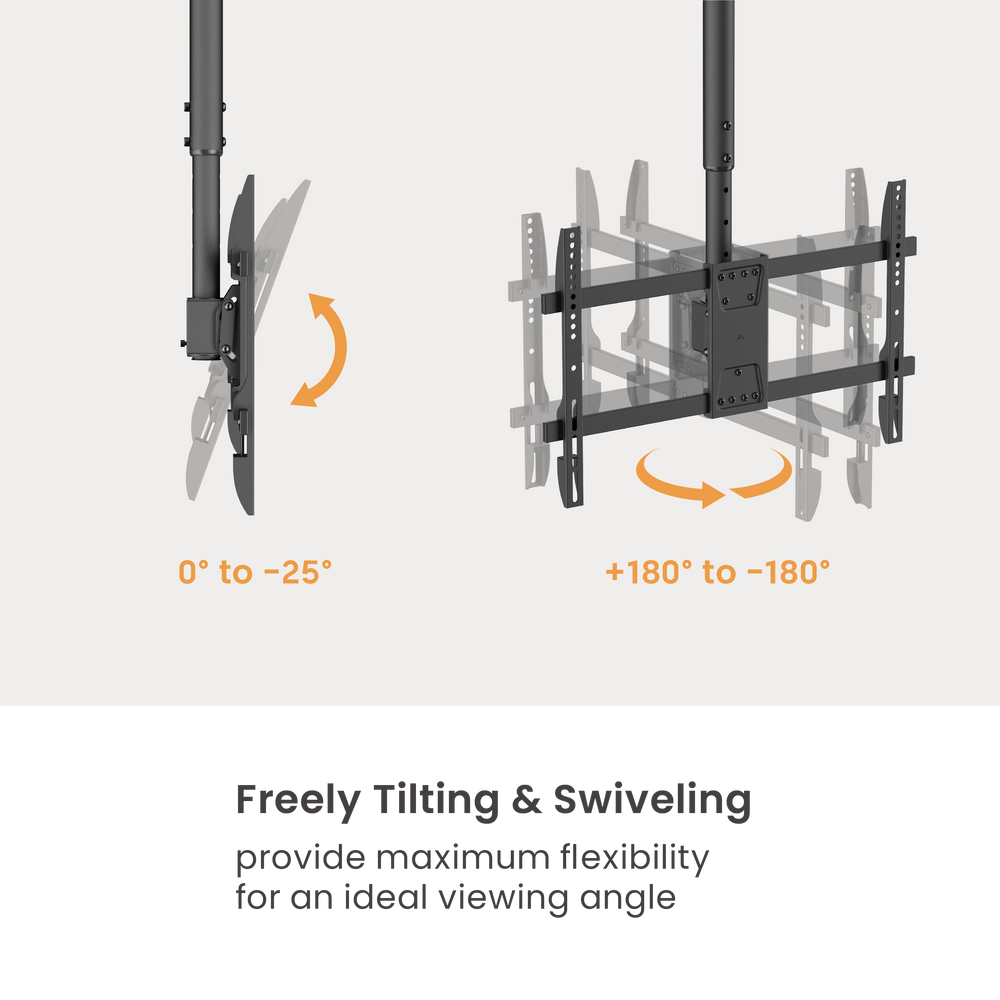

Full 360 degree rotation around the pole lets the screen be aimed at whichever side of the space is busy.
05
Tilt from 0 to minus 25 degrees corrects the viewing angle when the panel sits well above eye level.
06

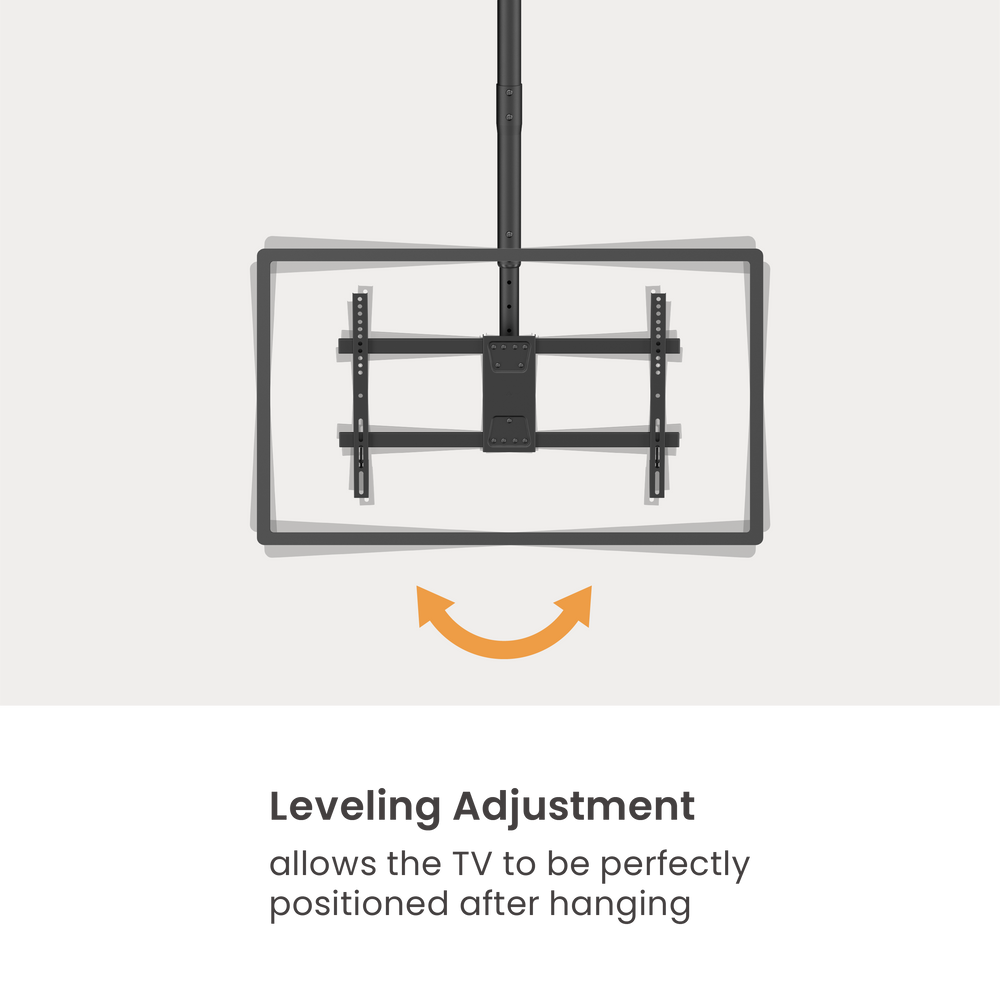

Levelling adjustment of plus or minus 3 degrees squares the screen after the plate is fixed, which matters when the ceiling is not perfectly true.
07

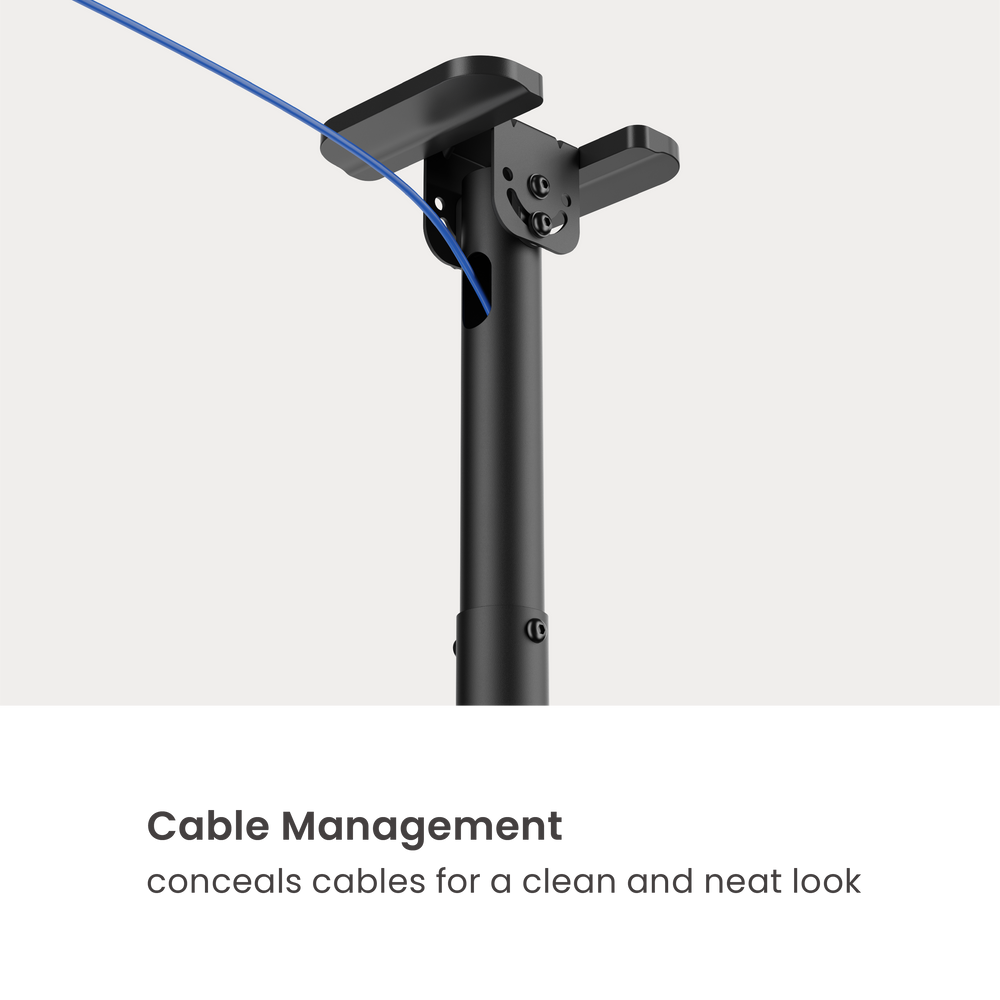

Cable management routes power and signal inside the pole for a clean finish in customer-facing areas.
08
VESA support from 200x200 mm to 600x400 mm, with a maximum hole spread of 610x402 mm.
09
Cold-rolled steel from 1.5 mm to 2.5 mm thick with a black powder-coat finish for durability in high-traffic public spaces.
10
Strength tested to 4x, giving margin on a permanently suspended load.

Specifications

15 specifications
General
Key FeaturesRouted internally through the pole
ModelVCM-CE1546L
TypeSingle-Screen Adjustable Ceiling Mount
What's in the BoxTiltable ceiling plate, Telescopic pole, VESA display bracket, Mounting hardware kit, Installation instructions
Display
Supported Screen Sizes43-86"
Physical
AdjustabilityTilt, rotation, levelling
FinishBlack powder-coated
Height RangeCeiling drop 1,090-1,690 mm
Load Capacity60 kg
Material1.5 mm to 2.5 mm cold-rolled steel
MountingCeiling mount, tiltable plate for flat or pitched ceilings
Rotation360° (around the pole)
Tilt-25 to 0°
VESA Mount200 x 200 to 600 x 400 mm (max hole spread 610 x 402 mm)
Compliance
CertificationsStrength tested to 4x

Questions

Can’t find your answer? Ask on WhatsApp

Is this a single-screen or dual-screen mount?
It is a single-screen ceiling mount. One display of 43 to 86 inches hangs from the pole, up to 60 kg. If the site needs two panels on one pole, ask Procure.ae about the back-to-back and side-by-side dual-screen versions in the same family.
How far below the ceiling can the screen hang?
The telescopic pole adjusts the drop from 1090 mm to 1690 mm, so the screen centre can be brought down into a usable sightline in tall retail, terminal and atrium ceilings without ordering an extension.
Can it be fitted to a sloped or pitched ceiling?
Yes. The ceiling plate itself tilts, so it seats correctly on a pitched roof structure as well as a flat slab, and no separate angled adaptor is needed.
How do I get the screen level after installation?
The mount includes a plus or minus 3 degree levelling adjustment at the bracket. Fix the plate, hang the display, then trim the level so the panel reads square against the ceiling line rather than against the structure behind it.
What VESA patterns does it take?
