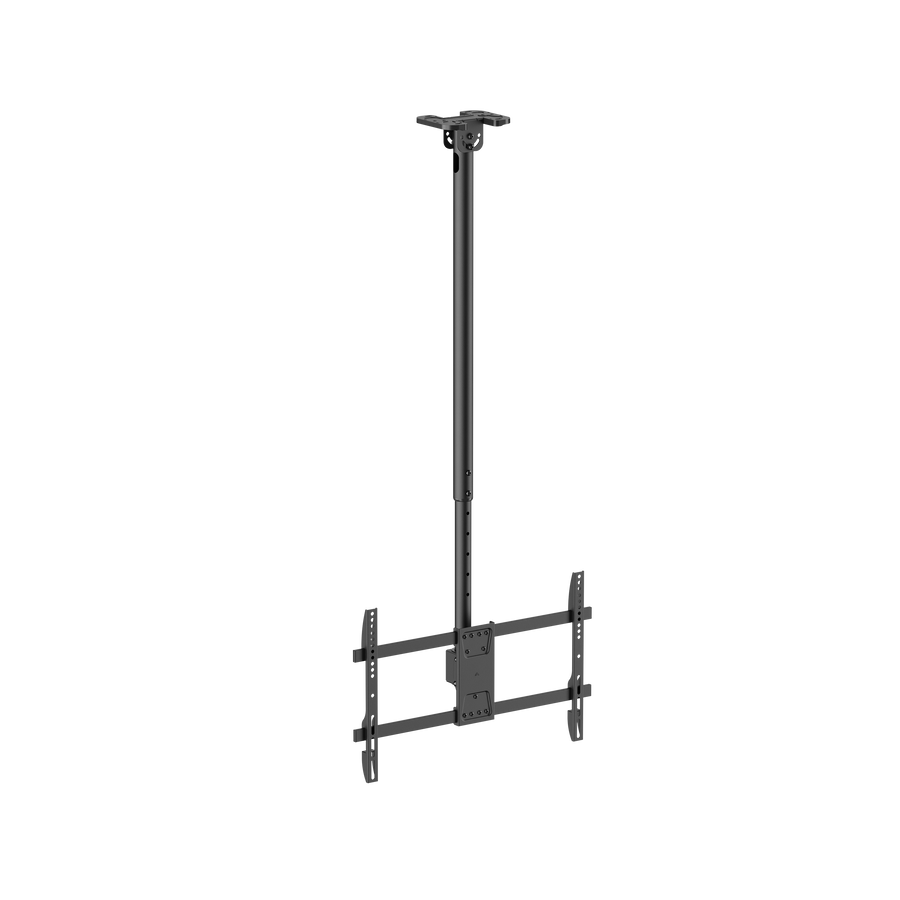

VSYS VCM-CE1546L Adjustable Ceiling TV Mount for 43"–86" Displays, 60 kg

The VSYS VCM-CE1546L is a single-screen adjustable ceiling mount for 43"–86" displays weighing up to 60 kg, available in the UAE from Procure.ae.

Plenty of commercial spaces have no wall worth mounting to. Glazed retail frontages, airport concourses, supermarket aisles and atriums either have no solid surface at the right sightline or need the screen out in the room rather than at its edge. This mount hangs the display from the structure above instead, which puts a 60 kg panel exactly where the traffic flow is and keeps the floor and walls clear.

A telescopic pole sets the drop anywhere between 1090 mm and 1690 mm below the ceiling, and the ceiling plate itself tilts, so the same part fits a flat slab or a pitched roof without a separate adaptor. Once hung, the screen rotates a full 360 degrees around the pole, tilts from 0 to minus 25 degrees for high mounting positions, and has a plus or minus 3 degree levelling adjustment to square it up after fixing. Cabling runs inside the pole. VESA patterns from 200x200 mm to 600x400 mm are supported.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type

Single-Screen Adjustable Ceiling Mount

Key features

Rated to 60 kg, which covers 86 inch commercial panels rather than only lightweight signage screens.

Telescopic pole gives a 1090 mm to 1690 mm drop, so one part number serves a range of ceiling heights on a multi-site rollout.

Tiltable ceiling plate fixes to pitched as well as flat ceilings, avoiding custom bracketry on sloped soffits.

Full 360 degree rotation around the pole lets the screen be aimed at whichever side of the space is busy.

Tilt from 0 to minus 25 degrees corrects the viewing angle when the panel sits well above eye level.

Levelling adjustment of plus or minus 3 degrees squares the screen after the plate is fixed, which matters when the ceiling is not perfectly true.

Cable management routes power and signal inside the pole for a clean finish in customer-facing areas.

VESA support from 200x200 mm to 600x400 mm, with a maximum hole spread of 610x402 mm.

Cold-rolled steel from 1.5 mm to 2.5 mm thick with a black powder-coat finish for durability in high-traffic public spaces.

Strength tested to 4x, giving margin on a permanently suspended load.

Specifications

General
Key Features	Routed internally through the pole
Model	VCM-CE1546L
Type	Single-Screen Adjustable Ceiling Mount
What's in the Box	Tiltable ceiling plate, Telescopic pole, VESA display bracket, Mounting hardware kit, Installation instructions

Display
Supported Screen Sizes	43-86"

Physical
Adjustability	Tilt, rotation, levelling
Finish	Black powder-coated
Height Range	Ceiling drop 1,090-1,690 mm
Load Capacity	60 kg
Material	1.5 mm to 2.5 mm cold-rolled steel
Mounting	Ceiling mount, tiltable plate for flat or pitched ceilings
Rotation	360° (around the pole)
Tilt	-25 to 0°
VESA Mount	200 x 200 to 600 x 400 mm (max hole spread 610 x 402 mm)

Compliance
Certifications	Strength tested to 4x
