ViewSonicMeeting Room SolutionsSKU VPC10-WP-3
ViewSonic Windows Slot-in PC for ViewBoard IFP8650/7550/6550/5550 – VPC10-WP-3

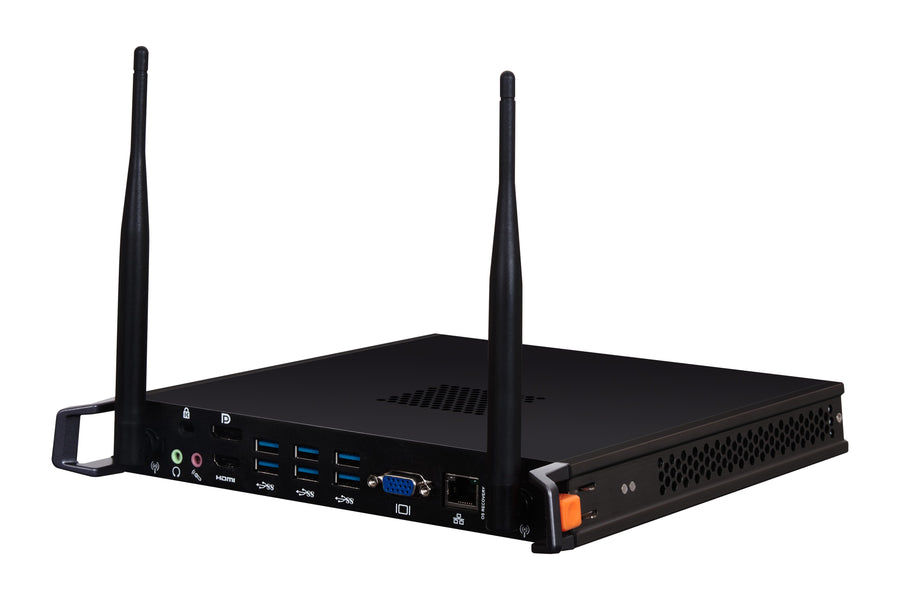

The ViewSonic VPC10-WP-3 is a Windows slot-in PC (OPS) for ViewBoard IFP8650, IFP7550, IFP6550 and IFP5550 interactive flat panels. It runs Windows 10 Pro on an Intel Core i5-6400 with 8 GB DDR4 memory and a 128 GB SSD. Procure.ae supplies the VPC10-WP-3 across the UAE for smart whiteboard and meeting room use.
The VPC10-WP-3 provides an Intel Core i5-6400 processor with Intel HD Graphics 530, 8 GB DDR4 memory expandable to 16 GB, and a 2.5-inch 128 GB SATA3 SSD expandable to 256 GB. Wireless connectivity is dual-band 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.0, plus Gigabit LAN. Connectivity includes a 4K DisplayPort, HDMI, VGA, six USB 3.0 Type A ports and an RJ45 port. The unit draws 95 W from 110-240 V AC.
The VPC10-WP-3 plugs into compatible ViewBoard IFP8650, IFP7550, IFP6550 and IFP5550 displays to deliver smart whiteboard and smart meeting room functions, as the manufacturer describes. Windows 10 Pro support suits organisations that run Windows software on the panel. It measures 246 x 265 x 32 mm without stand and weighs 1.9 kg. For an Android 13 alternative, the VPC-A31-O1 is available in this range.
Type
Slot-in PC (OPS)
Weight
1.9 kg
- Windows 10 Pro
- Intel Core i5 processor
- 8 GB DDR4 memory
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Windows 10 Pro
64-bit operating system support
02
Intel Core i5 processor
Intel Core i5-6400 with Intel HD Graphics 530
03
8 GB DDR4 memory
expandable to 16 GB
04
128 GB SSD
SATA3 storage expandable to 256 GB
05
Dual-band Wi-Fi and Bluetooth
802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, with Bluetooth 4.0
06
4K display output
DisplayPort, plus HDMI and VGA connections
07
USB and networking
six USB 3.0 Type A ports and Gigabit LAN RJ45
08
Power
95 W, 110-240 V AC, 50/60 Hz
Specifications
18 specificationsGeneral
Key FeaturesIntel Core i5 processor, 8 GB DDR4 memory, 128 GB SSD, Dual-band Wi-Fi and Bluetooth, 4K DisplayPort, Gigabit LAN
ModelVPC10-WP-3
TypeSlot-in PC (OPS)
Performance
GraphicsIntel HD Graphics 530
Operating SystemWindows 10 Pro 64-bit
ProcessorIntel Core i5-6400
RAM8 GB (expandable to 16 GB)
Storage128 GB SATA3 SSD (expandable to 256 GB)
Connectivity
BluetoothBluetooth 4.0
Input Voltage110-240 V AC, 50/60 Hz
PortsDisplayPort × 1, RGB/VGA × 1, RJ45 × 1, USB 3.0 Type A × 6, Microphone × 1, Earphone out × 1
Wi-Fi802.11 a/b/g/n/ac dual band (2.4 GHz / 5 GHz)
Power
Power Consumption95 W
Physical
Dimensions246 x 265 x 32 mm
Operating Humidity10% to 90% non-condensing
Operating Temperature0 to 45 °C
Weight1.9 kg
Compliance
CertificationsFCC, IC, cTUVus, CE, CB, BSMI, NCC, PSB, iDA, RCM, SDPPI, EAC, CCC
Downloads
Manufacturer documents for the ViewSonic Windows Slot-in PC for ViewBoard IFP8650/7550/6550/5550 – VPC10-WP-3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays does the VPC10-WP-3 fit?
The manufacturer lists the VPC10-WP-3 for ViewBoard IFP8650, IFP7550, IFP6550 and IFP5550 interactive flat panels. It plugs into compatible displays. Ask Procure.ae to confirm compatibility with any other panel model before you order.
Does the VPC10-WP-3 run Windows?
Yes. The manufacturer lists Windows 10 Pro 64-bit support, with an Intel Core i5-6400 processor and 8 GB DDR4 memory. The unit also has 128 GB SATA3 SSD storage that can be expanded to 256 GB.
How does the VPC10-WP-3-3 differ from the VPC10-WP-3?
The manufacturer lists both models with the same processor, memory, storage, ports, power draw, dimensions and certifications, for the same ViewBoard displays. Confirm the model code with Procure.ae when you order so you receive the variant you need.
What are the power and size requirements?
The VPC10-WP-3 draws 95 W from 110-240 V AC, 50/60 Hz. It plugs into a compatible ViewBoard display and measures 246 x 265 x 32 mm without stand. The manufacturer's specifications do not state a separate wall-mount option.
Is the VPC10-WP-3 suitable for a classroom or meeting room?
Yes. The manufacturer positions the VPC10-WP-3 for smart whiteboard and smart meeting room functionality on ViewBoard panels. It supports high-definition audio and video, and its Wi-Fi, Bluetooth and Gigabit LAN support connections to peripherals and networks.
Can I buy the VPC10-WP-3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
