ViewSonicMeeting Room SolutionsSKU VPC15-WP-3

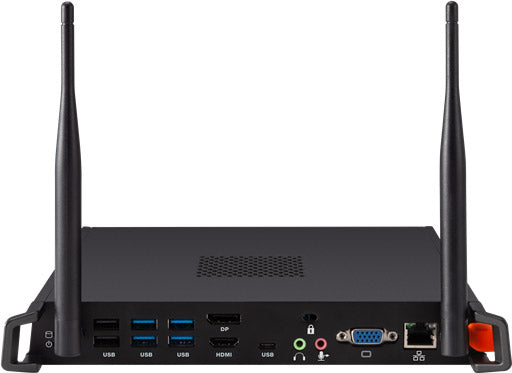

ViewSonic Windows OPS Slot-in PC for ViewBoard IFP50 – VPC15-WP-3
The ViewSonic VPC15-WP-3 is a Windows 10 Pro slot-in PC for the ViewBoard IFP50 series of interactive flat panels. It has an Intel Core i5-8400 processor, 8 GB of DDR4 memory and a 128 GB SSD, and it comes with myViewBoard and vCast software. Procure.ae supplies it across the UAE.
The VPC15-WP-3 is a Windows slot-in PC for the ViewBoard IFP50 series. It uses an Intel Core i5-8400 processor with Intel UHD Graphics 630, 8 GB of DDR4 memory and a 128 GB SSD in an M.2 slot. Dual-band Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2 with BLE provide wireless links, and a Gigabit RJ45 port, 4K DisplayPort and four USB 3.0 ports handle wired devices.
The module runs Windows 10 Pro 64-bit and comes bundled with myViewBoard and vCast software, so the display can run whiteboarding and content-sharing tasks without a separate computer. It has a microphone input and an earphone output, and it is rated at 95 W on 100–240 V AC. Procure.ae supplies the VPC15-WP-3 across the UAE, with installation and training available.
Type
OPS Slot-in PC
Weight
1.95 kg
- Windows 10 Pro
- Intel Core i5-8400
- 8 GB DDR4 memory
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Windows 10 Pro
64-bit operating system preinstalled.
02
Intel Core i5-8400
8th Gen Coffee Lake processor with Intel UHD Graphics 630.
03
8 GB DDR4 memory
Memory for running whiteboard and classroom applications.
04
128 GB SSD
M.2 2242/2280 storage.
05
Bundled software
myViewBoard and vCast software included.
06
4K DisplayPort output
DisplayPort supports up to 4096 x 2304 at 60 Hz.
07
Wireless and wired networking
Dual-band Wi-Fi, Bluetooth 4.2 with BLE and Gigabit RJ45 LAN.
08
USB ports
USB 3.0 × 4 and USB 2.0 × 2 for peripherals.
Specifications
18 specificationsGeneral
Key FeaturesIntel Core i5-8400, 8 GB DDR4, 128 GB SSD, Windows 10 Pro, myViewBoard and vCast software, dual-band Wi-Fi, Gigabit LAN, DisplayPort
ModelVPC15-WP-3
TypeOPS Slot-in PC
What's in the BoxVPC15-WP, ViewSonic Wizard CD, Quick Start Guide
Performance
GraphicsIntel UHD Graphics 630, up to 4096 x 2304 at 60 Hz
Operating SystemWindows 10 Pro 64-bit
ProcessorIntel Core i5-8400 (8th Gen Coffee Lake)
RAM8 GB DDR4
Storage128 GB SSD
Connectivity
BluetoothBluetooth 4.2 (BLE)
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 3.0 × 4, USB 2.0 × 2, DisplayPort × 1, RJ45 Gigabit LAN × 1, VGA × 1, Microphone × 1, Earphone out × 1
Wi-Fi802.11 a/b/g/n/ac dual-band (2.4 GHz / 5 GHz)
Power
Power Consumption95 W
Physical
Dimensions246.2 x 265.4 x 32.2 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature-5 to 45 °C
Weight1.95 kg
Downloads
Manufacturer documents for the ViewSonic Windows OPS Slot-in PC for ViewBoard IFP50 – VPC15-WP-3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays is the VPC15-WP-3 designed for?
The VPC15-WP-3 is a slot-in PC for the ViewBoard IFP50 series of interactive flat panels, as the manufacturer describes it. Check the OPS slot on your display model before ordering, or ask Procure.ae to confirm compatibility.
Does the VPC15-WP-3 run Windows?
Yes. The manufacturer's specifications list Windows 10 Pro 64-bit as the operating system. The module also comes bundled with myViewBoard and vCast software for whiteboarding and content sharing, so classroom setup is largely ready out of the box.
How much memory and storage does it have?
It has 8 GB of DDR4 memory and a 128 GB SSD, using an M.2 2242 or 2280 interface. The manufacturer's specifications list these values for this model, so check the configuration before you order.
Does it support 4K video output?
The DisplayPort output supports up to 4096 x 2304 at 60 Hz, according to the manufacturer's specifications. The module also has a VGA port for older displays that do not accept DisplayPort.
What is the power consumption and voltage?
The VPC15-WP-3 is rated at 95 W and accepts 100–240 V AC at 50/60 Hz. Its operating temperature range is -5 to 45 °C and its humidity range is 10% to 90% RH, non-condensing.
