ViewSonicMeeting Room SolutionsSKU VPC25-W53-P1

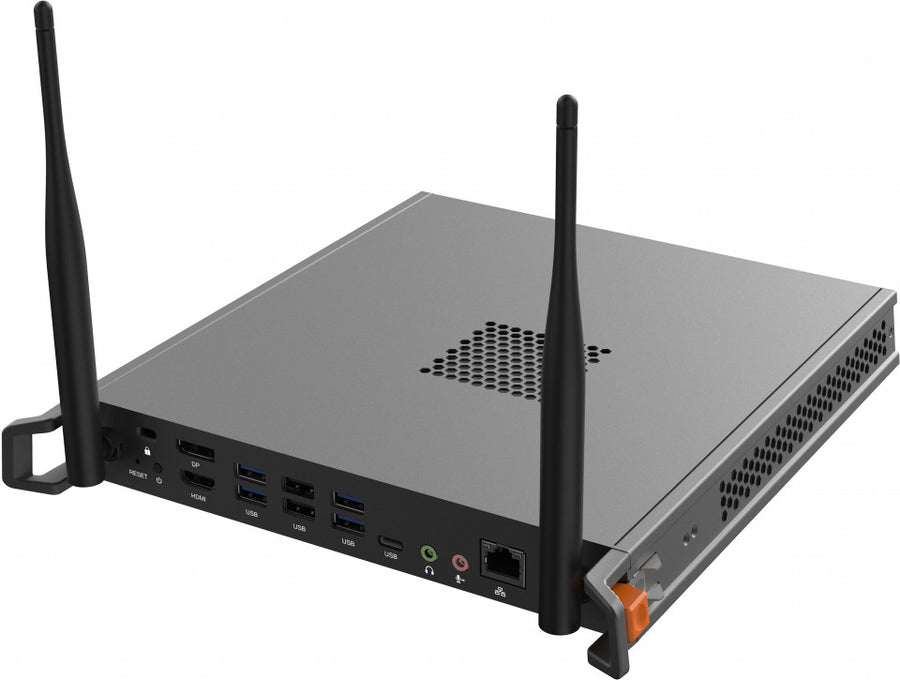

ViewSonic Windows 11 OPS Slot-in PC for ViewBoard – VPC25-W53-P1
The ViewSonic VPC25-W53-P1 is a Windows 11 Pro slot-in PC for ViewBoard interactive displays and wireless presentation displays. It has an Intel Core i5-10400T processor, 16 GB of DDR4 memory, a 256 GB SSD and a USB 3.2 Type-C port. Procure.ae supplies it across the UAE.
The VPC25-W53-P1 is a Windows slot-in PC for ViewBoard interactive displays and wireless presentation displays. It uses an Intel Core i5-10400T processor from the 10th Gen Comet Lake series, rated at 3.6 GHz, with 16 GB of DDR4 memory and a 256 GB SSD on PCIe and SATA 3. Integrated Intel UHD Graphics 630 on the Intel H410 chipset handles display output.
The manufacturer's specifications list Windows 11 Pro, with a Windows 10 Pro downgrade preinstalled. Connectivity includes dual-band Wi-Fi, Bluetooth 5.2, a DisplayPort 1.4 output that supports 3840 x 2160 at 60 Hz, a Gigabit LAN port, USB 3.0 and USB 2.0 ports, and a USB 3.2 Type-C port. It is rated at 110 W on 100–240 V AC. Procure.ae supplies it across the UAE.
Type
OPS Slot-in PC
Weight
1.95 kg
- Windows 11 Pro
- Intel Core i5-10400T
- 16 GB DDR4 memory
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Windows 11 Pro
Preinstalled, with a Windows 10 Pro downgrade option.
02
Intel Core i5-10400T
10th Gen Comet Lake processor rated at 3.6 GHz.
03
16 GB DDR4 memory
Double the memory of the VPC25-W33-P1 for heavier sessions.
04
256 GB SSD
PCIe and SATA 3 storage.
05
DisplayPort 1.4
Supports up to 3840 x 2160 at 60 Hz.
06
Wireless connectivity
Dual-band Wi-Fi and Bluetooth 5.2.
07
Gigabit LAN and USB
One GbE LAN port, USB 3.0 × 4 and USB 2.0 × 2.
08
USB 3.2 Type-C
One Type-C port for connecting peripherals.
Specifications
18 specificationsGeneral
Key FeaturesWindows 11 Pro, Intel Core i5-10400T, 16 GB DDR4, 256 GB SSD, Bluetooth 5.2, dual-band Wi-Fi, DisplayPort 1.4 at 3840 x 2160, GbE LAN, USB 3.2 Type-C
ModelVPC25-W53-P1
TypeOPS Slot-in PC
What's in the BoxSlot-in PC module
Performance
GraphicsIntel UHD Graphics 630 with Intel H410 chipset
Operating SystemWindows 11 Pro (Windows 10 Pro downgrade preinstalled)
ProcessorIntel Core i5-10400T, 3.6 GHz (10th Gen Comet Lake)
RAM16 GB DDR4
Storage256 GB SSD (PCIe and SATA 3)
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC, 50/60 Hz
PortsUSB 3.0 × 4, USB 2.0 × 2, USB 3.2 Type-C × 1, DisplayPort 1.4 × 1, GbE LAN × 1, Line out × 1, Microphone × 1
Wi-FiDual-band Wi-Fi
Power
Power Consumption110 W
Physical
Dimensions246.2 x 263.4 x 32.2 mm
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature-5 to 45 °C
Weight1.95 kg
Downloads
Manufacturer documents for the ViewSonic Windows 11 OPS Slot-in PC for ViewBoard – VPC25-W53-P1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays is the VPC25-W53-P1 designed for?
The VPC25-W53-P1 is a slot-in PC for ViewBoard interactive displays and wireless presentation displays, as the manufacturer describes it. Check the OPS slot on your display model before ordering, or ask Procure.ae to confirm compatibility.
Does the VPC25-W53-P1 come with Windows?
Yes. The manufacturer's specifications list Windows 11 Pro, with a Windows 10 Pro downgrade preinstalled. Procure.ae can confirm which Windows version suits your deployment, and whether the bundled software matches your setup, before you order.
How much memory and storage does it have?
It has 16 GB of DDR4 memory and a 256 GB SSD on PCIe and SATA 3. These are the values in the manufacturer's specifications for this model. The module is also rated at 110 W, so confirm the power budget with the display's supplier.
What is the power requirement?
The module runs on 100–240 V AC at 50/60 Hz and is rated at 110 W. Its operating temperature range is -5 to 45 °C and its humidity range is 10% to 90% RH, non-condensing.
Does it support 4K output?
The DisplayPort 1.4 output supports 3840 x 2160 at 60 Hz, according to the manufacturer's specifications. The module also has a Gigabit LAN port and USB 3.2 Type-C connectivity. Confirm that the display's input supports this resolution before ordering.
Can I buy the VPC25-W53-P1 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
