ViewSonicMeeting Room SolutionsSKU VPC37-W53-G1

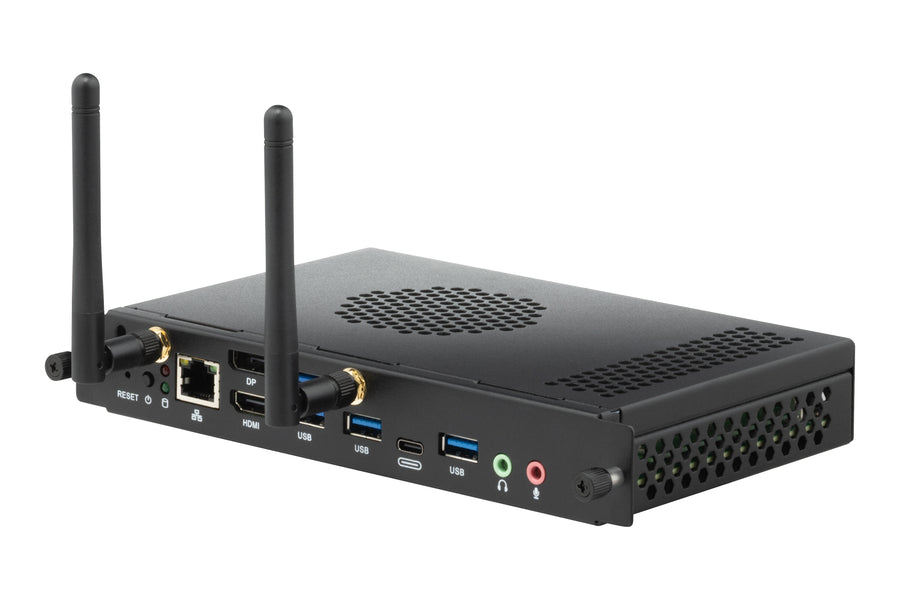

ViewSonic ViewBoard Windows OPS Slot-in PC – VPC37-W53-G1
The ViewSonic VPC37-W53-G1 is a Windows 11 Pro slot-in PC (OPS) for ViewBoard interactive displays. It uses an Intel Core i7-1260P with 16 GB memory, expandable to 32 GB, a 256 GB SSD and a DisplayPort 1.4 output up to 7680 x 4320 at 60 Hz. It suits Windows-based rooms. Procure.ae supplies the VPC37-W53-G1 in the UAE.
The VPC37-W53-G1 uses an Intel Core i7-1260P processor with a 2.1 GHz base clock and turbo boost up to 4.7 GHz. It has 16 GB of DDR4 memory, expandable to 32 GB, and a 256 GB SSD. Intel Iris Xe Graphics with 96 execution units drive a DisplayPort 1.4 output up to 7680 x 4320 at 60 Hz. Intel Wi-Fi 6 AX200 and Bluetooth 5.1 are built in, with an RJ45 LAN port, four USB 3.0 Type-A ports, a USB-C data port and a microphone input. The module draws up to 96 W from a 12–19 V DC supply.
The VPC37-W53-G1 is designed to sync with ViewBoard interactive displays and Presentation Displays. The manufacturer lists Windows 11 Pro as the operating system, with myViewBoard for Windows bundled. Its 202 x 122.6 x 30 mm body weighs 0.6 kg net. The manufacturer's specifications do not state a VESA pattern or mounting kit for the module, so confirm the fitting before ordering. Compared with the VPC35-W53-G1, it uses a Core i7-1260P with 96 graphics execution units instead of 80.
Type
OPS Slot-in PC
Weight
0.6 kg
- Windows 11 Pro
- Intel Core i7 processing
- Expandable memory
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Windows 11 Pro
Windows 11 Pro is the listed operating system for this model.
02
Intel Core i7 processing
Intel Core i7-1260P with a 2.1 GHz base clock and turbo boost up to 4.7 GHz.
03
Expandable memory
16 GB of DDR4 memory, upgradable to 32 GB.
04
256 GB SSD
A 256 GB SSD on a PCIe and SATA 3 interface.
05
High-resolution output
One DisplayPort 1.4 output up to 7680 x 4320 at 60 Hz.
06
Wireless connectivity
Intel Wi-Fi 6 AX200 with Bluetooth 5.1.
07
Wired connectivity
RJ45 LAN, four USB 3.0 Type-A ports and a USB-C data port.
08
Integrated graphics
Intel Iris Xe Graphics with 96 execution units and 32 GB total available graphics memory.
Specifications
21 specificationsGeneral
Key FeaturesWindows 11 Pro, Intel Core i7-1260P, 16 GB DDR4 (up to 32 GB), 256 GB SSD, DisplayPort 1.4 up to 7680 x 4320, Wi-Fi 6, Bluetooth 5.1, RJ45 LAN
ModelVPC37-W53-G1
TypeOPS Slot-in PC
What's in the BoxVPC OPS module, Quick Start Guide
Performance
GraphicsIntel Iris Xe Graphics (96 EU), 32 GB total available graphics memory
Operating SystemWindows 11 Pro
ProcessorIntel Core i7-1260P, 2.1 GHz (up to 4.7 GHz turbo)
RAM16 GB DDR4 (up to 32 GB)
Storage256 GB SSD (PCIe and SATA 3)
Audio
DisplayPort1.4, up to 7680 x 4320 at 60 Hz
Connectivity
BluetoothBluetooth 5.1
EthernetRJ45 LAN, x1
Input VoltageDC 12–19 V, 8 A
PortsUSB 3.0 × 4, USB-C × 1 (data only), Line out × 1, Microphone × 1
Wi-FiIntel Wi-Fi 6 AX200, 802.11 a/b/g/n/ac/ax
Power
Power Consumption96 W (max)
Physical
Dimensions202 x 122.6 x 30 mm
Operating Humidity10% to 90% RH at 40 °C, non-condensing
Operating Temperature-5 to 40 °C
Weight0.6 kg
Compliance
CertificationscTUVus, FCC, CE EMC, RoHS, REACH, WEEE
Downloads
Manufacturer documents for the ViewSonic ViewBoard Windows OPS Slot-in PC – VPC37-W53-G1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which ViewBoard displays is the VPC37-W53-G1 for?
The manufacturer describes the VPC37-W53-G1 as a slot-in PC for ViewBoard interactive displays and Presentation Displays. Check that your display has a compatible OPS socket before ordering, and Procure.ae can confirm the match for your model.
Does the VPC37-W53-G1 come with Windows 11 Pro?
Yes. The manufacturer lists Windows 11 Pro as the operating system, with myViewBoard for Windows, Adobe Reader and a BIOS flash tool in the bundled software list. Procure.ae can confirm the configuration for your site before you order.
Can the memory be upgraded?
Yes, the manufacturer lists 16 GB of DDR4 memory with a capacity of up to 32 GB. The storage is a 256 GB SSD on a PCIe and SATA 3 interface. Confirm the upgrade with Procure.ae before ordering if you need 32 GB.
What display output does it provide?
It has one DisplayPort 1.4 output with a maximum resolution of 7680 x 4320 at 60 Hz. The USB-C port carries data only, so video output comes from the DisplayPort. Confirm the cable and display input with Procure.ae before installation.
