ViewSonic ViewBoard Wi-Fi 6 Wireless Module – VB-WIFI-001

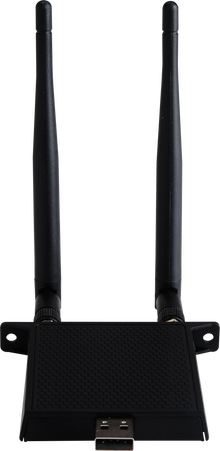

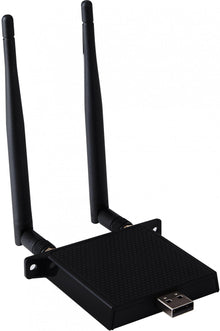

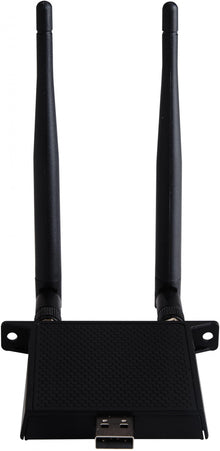

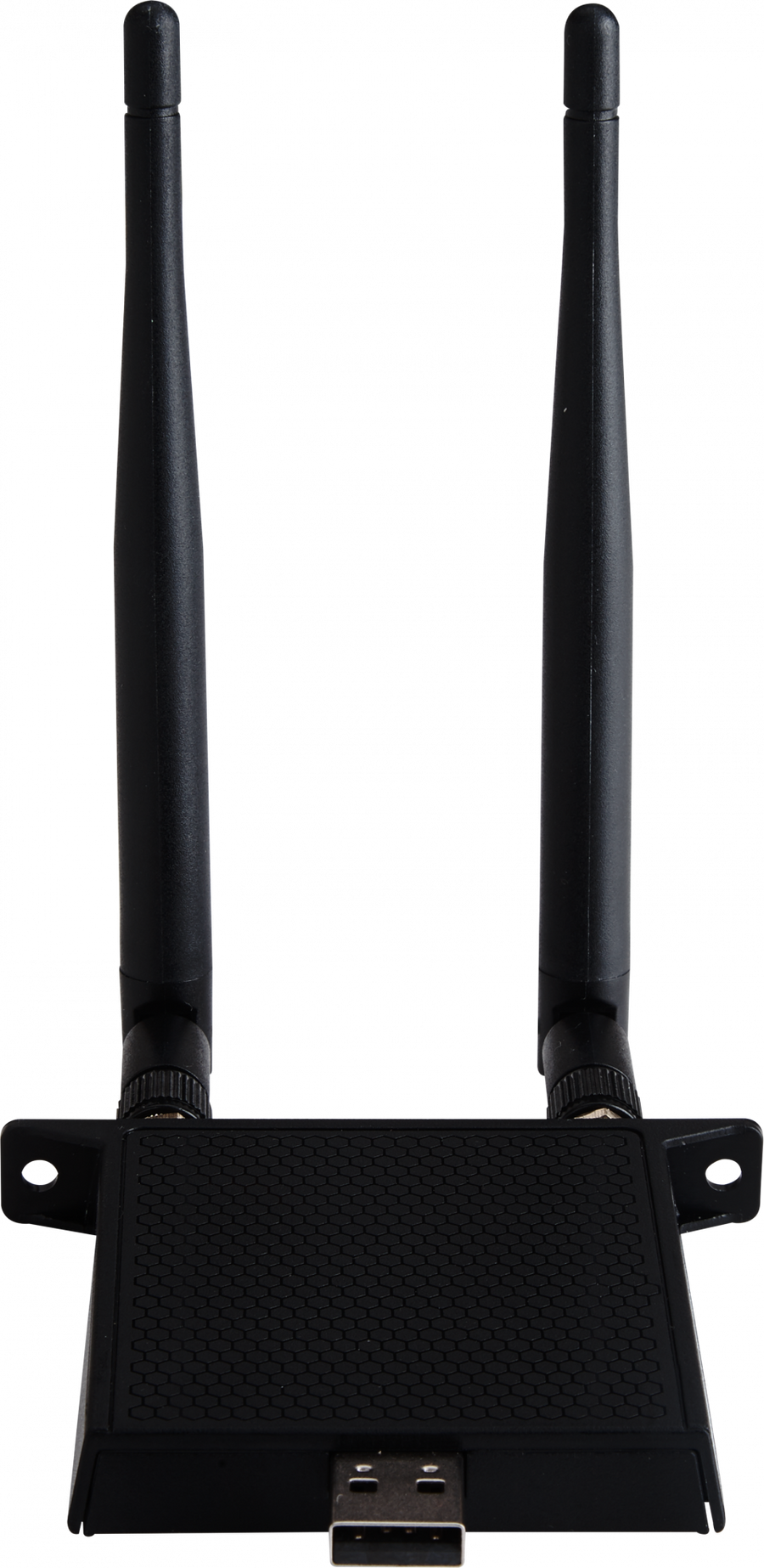

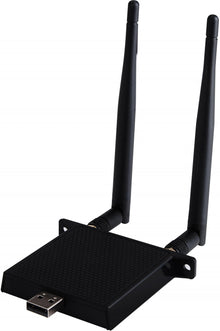

The ViewSonic VB-WIFI-001 is a Wi-Fi 6 (802.11ax) wireless module for selected ViewBoard and Wireless Presentation Display models. It runs dual-frequency 2.4 GHz and 5 GHz bands on a 5 V DC, 0.9 A supply and consumes less than 4.5 W. Procure.ae supplies the ViewSonic VB-WIFI-001 across the UAE.
The VB-WIFI-001 connects a supported ViewBoard or Wireless Presentation Display to a wireless network using the Wi-Fi 6 (802.11ax) standard. It operates on dual-frequency 2.4 GHz and 5 GHz bands. Power comes from a 5 V DC, 0.9 A supply, and consumption stays below 4.5 W. The module is rated for 0 to 40 °C operation and 10% to 90% non-condensing humidity, and weighs 30 g net.
The VB-WIFI-001 is listed for selected models only, so Procure.ae can confirm whether your ViewBoard or wireless presentation display is supported before you order. Compared with the VB-WIFI-006, it lists 2.4 GHz and 5 GHz only, with no 6 GHz band or Bluetooth in its specifications. Procure.ae also arranges installation across the UAE and offers bulk and project quotes for classroom and meeting-room rollouts.
Type
Wi-Fi Module
Weight
30 g
- Wi-Fi 6 standard
- Dual-band operation
- Selected model support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wi-Fi 6 standard
uses 802.11ax for wireless internet access.
02
Dual-band operation
runs on 2.4 GHz and 5 GHz frequency bands.
03
Selected model support
works with selected ViewBoard and Wireless Presentation Display models.
04
Low power draw
requires 5 V DC at 0.9 A and consumes less than 4.5 W.
05
Lightweight module
weighs 30 g net.
06
Operating range
rated for 0 to 40 °C and 10% to 90% non-condensing humidity.
Specifications
11 specificationsGeneral
CompatibilitySelected ViewBoard and Wireless Presentation Display models
Key FeaturesWi-Fi 6 (802.11ax), dual-band 2.4 GHz and 5 GHz, selected ViewBoard and Wireless Presentation Display models, 5 V DC 0.9 A, under 4.5 W
ModelVB-WIFI-001
TypeWi-Fi Module
Connectivity
Frequency Band2.4 GHz / 5 GHz
Input Voltage5 V DC, 0.9 A
Wi-FiWi-Fi 6 (802.11ax), dual-band 2.4 GHz / 5 GHz
Power
Power ConsumptionLess than 4.5 W
Physical
Operating Humidity10% to 90% RH (non-condensing)
Operating Temperature0 to 40 °C
Weight30 g
Downloads
Manufacturer documents for the ViewSonic ViewBoard Wi-Fi 6 Wireless Module – VB-WIFI-001 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which displays work with the VB-WIFI-001?
The VB-WIFI-001 is made for ViewBoard and Wireless Presentation Display models, but only selected models are compatible. The manufacturer's specifications do not publish a full model list, so Procure.ae can check whether your display is supported before you place an order.
Does the VB-WIFI-001 support Wi-Fi 6?
Yes. The VB-WIFI-001 uses the Wi-Fi 6 (802.11ax) standard on dual-frequency 2.4 GHz and 5 GHz bands. This gives a supported ViewBoard or wireless presentation display a wireless internet connection without a network cable.
What power and operating range does the VB-WIFI-001 need?
It requires 5 V DC at 0.9 A and consumes less than 4.5 W. The module is rated for 0 to 40 °C operation and 10% to 90% humidity, non-condensing, and its net weight is 30 g.
