ViewSonicMeeting Room SolutionsSKU VPC12-WPO-7
ViewSonic ViewBoard Slot-in PC – VPC12-WPO-7

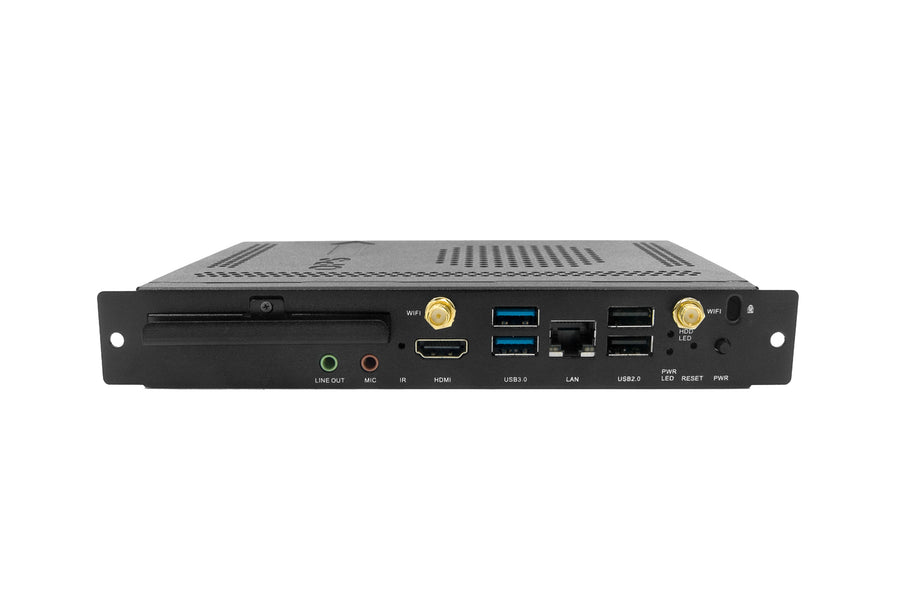

The ViewSonic VPC12-WPO-7 is a slot-in OPS PC for ViewBoard interactive displays. It has an Intel Core i5-7200U processor running at up to 3.1 GHz, 8 GB RAM and a 128 GB SSD. It includes dual-band Wi-Fi and Bluetooth 4.0. Procure.ae supplies the VPC12-WPO-7 across the UAE.
The VPC12-WPO-7 gives a compatible ViewBoard display an integrated computer for interactive lessons and presentations. Its Intel Core i5-7200U processor runs at up to 3.1 GHz, with integrated Intel HD Graphics 620 and High Definition stereo audio. Memory is 8 GB and storage is a 128 GB SSD. Intel dual-band 802.11ac Wi-Fi and Bluetooth 4.0 with BLE provide wireless connectivity, and the module includes two USB 3.0 and two USB 2.0 ports plus an RJ45 network port.
The VPC12-WPO-7 is designed to plug into compatible ViewBoard displays, and the manufacturer lists it as an integrated solution for those displays. It has a microphone input, and its body measures 202 x 117 x 28.7 mm. Its Wi-Fi supports 802.11 a/b/g/n/ac, including the 802.11 d, e, h, i and w extensions. It suits classrooms and presentation rooms that need a compact computer in the display.
Type
Slot-in PC (OPS)
- Intel Core i5 processor
- Integrated graphics
- 8 GB memory
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Intel Core i5 processor
Intel Core i5-7200U series CPU at up to 3.1 GHz.
02
Integrated graphics
Intel HD Graphics 620 for everyday presentation content.
03
8 GB memory
8 GB of RAM for applications and browsing.
04
128 GB SSD
Solid-state storage for the operating system and applications.
05
Dual-band wireless
Intel Wireless-AC 8260 with Bluetooth 4.0 and BLE.
06
HD audio
Integrated High Definition stereo audio with a microphone input.
07
Network and USB
One RJ45 port, two USB 3.0 and two USB 2.0 ports.
Specifications
14 specificationsGeneral
Key FeaturesIntel Core i5-7200U up to 3.1 GHz, Intel HD Graphics 620, 8 GB RAM, 128 GB SSD, dual-band Wi-Fi, Bluetooth 4.0 with BLE, HD stereo audio, USB 3.0 ports
ModelVPC12-WPO-7
TypeSlot-in PC (OPS)
Performance
GraphicsIntel HD Graphics 620
ProcessorIntel Core i5-7200U, up to 3.1 GHz
RAM8 GB
Storage128 GB SSD
Audio
AudioIntegrated High Definition stereo audio
MicrophoneMicrophone input × 1
Connectivity
BluetoothBluetooth 4.0 with BLE
EthernetRJ45 × 1
PortsUSB 3.0 × 2, USB 2.0 × 2, RJ45 × 1, microphone × 1
Wi-FiIntel Dual Band Wireless-AC 8260 (802.11 a/b/g/n/ac)
Physical
Dimensions202 x 117 x 28.7 mm
Downloads
Manufacturer documents for the ViewSonic ViewBoard Slot-in PC – VPC12-WPO-7 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic VPC12-WPO-7?
It is a slot-in OPS PC for ViewBoard interactive displays. It has an Intel Core i5-7200U processor running at up to 3.1 GHz, 8 GB of RAM and a 128 GB SSD, and it is designed to plug into compatible displays.
Which processor and graphics does it use?
It uses an Intel Core i5-7200U processor, which the manufacturer lists at up to 3.1 GHz, with integrated Intel HD Graphics 620. The processor turbo-boosts to up to 3.1 GHz, and the integrated graphics handle everyday presentation content. The manufacturer's specifications do not list a separate graphics card.
How much memory and storage does it have?
It has 8 GB of RAM and a 128 GB SSD. The manufacturer's specifications do not state the maximum expansion for either, so Procure.ae can confirm upgrade options before you order.
Does it support wireless connectivity?
Yes. It has an Intel Dual Band Wireless-AC 8260 module supporting 802.11 a/b/g/n/ac on 2.4 GHz and 5 GHz, plus Bluetooth 4.0 with BLE. The module also supports the 802.11 d, e, h, i and w extensions, and Bluetooth 4.0 with BLE allows wireless peripheral connections.
Which ports does it have?
It has two USB 3.0 ports, two USB 2.0 ports, one RJ45 network port and one microphone input. The module also includes integrated High Definition audio with stereo output, as listed in the manufacturer's specifications.
Can I buy the VPC12-WPO-7 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
