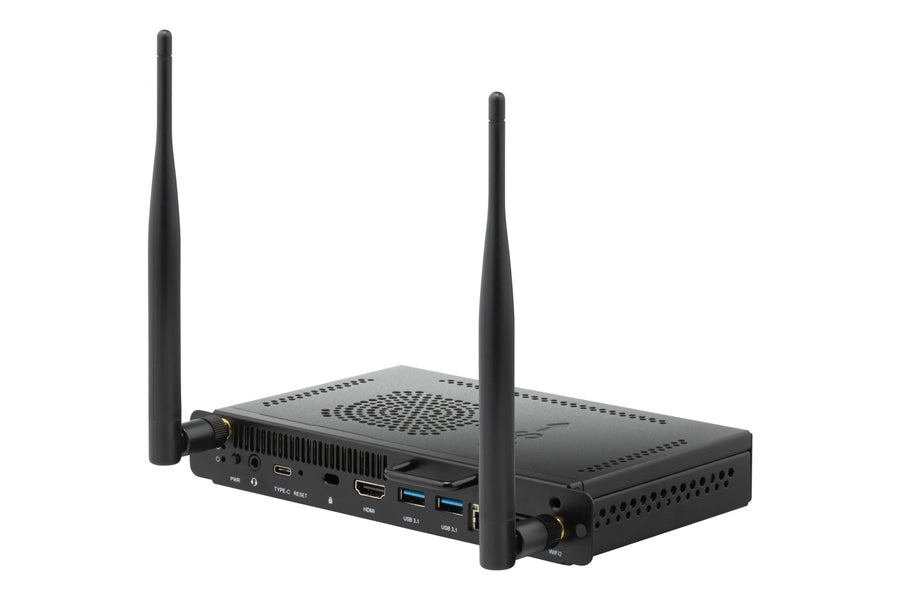

ViewSonic ViewBoard OPS Slot-in PC – VPCF5-W33-G1
The ViewSonic VPCF5-W33-G1 is an OPS slot-in PC that gives ViewBoard displays a built-in Windows 11 Pro computer. It has an Intel Tiger Lake processor, 8 GB of memory, a 256 GB M.2 SSD, Wi-Fi 6 and Bluetooth 5.2. Procure.ae, an authorised reseller, supplies it across the UAE for schools and businesses.
The VPCF5-W33-G1 runs Windows 11 Pro on an Intel Tiger Lake mobile processor with Intel Iris Xe graphics (96EU). Its 8 GB of DDR4 memory and 256 GB PCIe M.2 SSD handle classroom software, whiteboard applications and Adobe Reader. Graphics output reaches up to 7680 x 4320 at 60 Hz over DisplayPort. Connectivity includes dual-band Wi-Fi 6, Bluetooth 5.2, a Gigabit RJ45 port, two USB 3.1 Type-A ports, one USB 3.1 Gen 2 Type-C data port and a combined microphone and line-out jack. Maximum power draw is 90 W.
The PC suits classrooms, boardrooms and training rooms that need a computer built into the display, so the panel runs without a separate laptop. The rated operating range is 0 to 40 °C at 10% to 90% RH, non-condensing. Compared with the VPCF5-W55-G1 in the same range, this model has 8 GB of memory and 256 GB of storage rather than 16 GB and 512 GB.
Type
OPS Slot-in PC
Weight
0.7 kg
- Windows 11 Pro
- Memory and storage
- Wi-Fi 6 and Bluetooth 5.2
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Windows 11 Pro
Runs Windows 11 Pro on an Intel Tiger Lake mobile processor with Intel Iris Xe graphics.
02
Memory and storage
Provides 8 GB of DDR4 memory and a 256 GB M.2 PCIe SSD for classroom and collaboration software.
03
Wi-Fi 6 and Bluetooth 5.2
Dual-band 802.11ax Wi-Fi 6 with Bluetooth 5.2 through an Intel AX101 wireless module.
04
Gigabit RJ45 port
One RJ45 port for wired networking, rated 10/100/1000 Mbps.
05
OPS standard slot
Single OPS standard slot (x1) for installing the PC into compatible ViewBoard and presentation displays.
06
USB and audio connections
Two USB 3.1 Type-A ports, one USB 3.1 Gen 2 Type-C data port and a combined mic and line-out jack.
07
Bundled software
Includes myViewBoard Whiteboard, Adobe Reader and Watchdog/Winflash utilities.
Specifications
23 specificationsGeneral
Key FeaturesIntel Tiger Lake processor, 8 GB RAM, 256 GB SSD, Wi-Fi 6, Bluetooth 5.2, OPS slot, Windows 11 Pro
ModelVPCF5-W33-G1
TypeOPS Slot-in PC
What's in the BoxQuick start guide, 2 screws, 2 antennas
Performance
GraphicsIntel Iris Xe Graphics (96EU), up to 7680 x 4320 at 60 Hz (DP)
Operating SystemWindows 11 Pro
ProcessorIntel Tiger Lake mobile processor, Intel 11th Gen Core i5 or later
RAM8 GB
Storage256 GB M.2 SSD (PCIe)
Audio
AudioMIC-in and line-out combo connector
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 x 1
Input VoltageDC 12-19 V, 8 A max
OPS SlotOPS standard, x1
USB PortsUSB 3.1 x 2, USB 2.0 x 1
USB-C PortsUSB 3.1 Gen 2 x 1 (data only)
Wi-FiWi-Fi 6 (802.11ax)
Power
Power Consumption90 W (max)
Physical
Dimensions200 x 119 x 30 mm
Operating Humidity10% to 90% RH (non-condensing, at 40 °C)
Operating Temperature0 to 40 °C
Weight0.7 kg
Compliance
CertificationsCE EMC, LVD, RED, RoHS, REACH, WEEE, CB2018
Downloads
Manufacturer documents for the ViewSonic ViewBoard OPS Slot-in PC – VPCF5-W33-G1 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What operating system does the VPCF5-W33-G1 run?
It runs Windows 11 Pro on an Intel Tiger Lake mobile processor, which the manufacturer lists as Intel 11th Gen Core i5 or later. Because the computer sits inside the display, Windows-based whiteboard and collaboration software runs without a separate laptop or desktop.
How much memory and storage does it have?
It has 8 GB of DDR4 memory and a 256 GB M.2 PCIe SSD. For heavier workloads, the VPCF5-W55-G1 is the higher-capacity model with 16 GB of memory and 512 GB of storage.
Will the VPCF5-W33-G1 work with my ViewBoard display?
It is designed to sync with ViewBoard interactive displays and presentation displays through the OPS standard slot. Confirm that your display model has a matching OPS slot and power supply before ordering, and Procure.ae can check the compatibility for your model.
Does it support Wi-Fi and Bluetooth?
Yes. The unit has dual-band Wi-Fi 6 (802.11ax) and Bluetooth 5.2. It also has a Gigabit RJ45 port for a wired network connection. The wireless module is an Intel AX101, as listed in the manufacturer's specifications.
